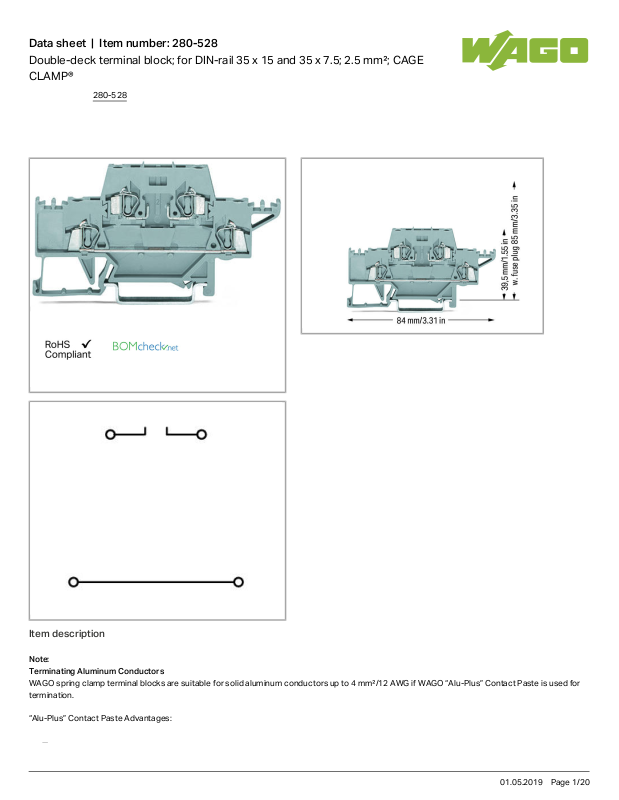

Data sheet | Item number:280-528
Double-deck terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE
CLAMP®
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
280-528
01.05.2019Page /1 20
Data sheet | Item number:280-528
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
Rated current 10 A
Rated current (2) 10A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 3
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39.6mm/ 1.559inch
Depth 84mm/ 3.307inch
280-528
01.05.2019Page /2 20
Data sheet | Item number:280-528
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Side marking
Material Data
Color gray/gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.174 MJ
Weight 10.238g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918539036
Customs Tariff No. 85369010000
Compatible products
End plate
Item no.: 280-340
End and intermediate plate; 2.5 mm thick
280-340
Item no.: 280-341
End and intermediate plate; 2.5 mm thick
280-341
Item no.: 280-366
Intermediate plate; 1.1 mm thick
280-366
tools
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
280-528
01.05.2019Page /3 20
Data sheet | Item number:280-528
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
Protective Warning Marker
Item no.: 280-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks
280-415
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-482
Item no.: 280-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
280-483
Item no.: 280-484
Comb-style jumper bar; insulated; 4-way; IN = IN terminal block
280-484
Item no.: 280-485
Comb-style jumper bar; insulated; 5-way; IN = IN terminal block
280-485
Item no.: 280-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
280-490
Item no.: 280-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-492
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
280-528
01.05.2019Page /4 20
Data sheet | Item number:280-528
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
280-528
01.05.2019Page /5 20
Data sheet | Item number:280-528
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-012
280-528
01.05.2019Page /6 20
Data sheet | Item number:280-528
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-023
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type
793-5501
/000-024
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-198
Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715
210-504
Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715
210-505
Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715
210-506
Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715
210-508
Female plug
Item no.: 232-132/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 2-pole
232-132
/005-000
Item no.: 232-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-132
/005-000/039-000
280-528
01.05.2019Page /7 20
Data sheet | Item number:280-528
Item no.: 232-133/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 3-pole
232-133
/005-000
Item no.: 232-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 3-pole
232-133
/005-000/039-000
Item no.: 232-134/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 4-pole
232-134
/005-000
Item no.: 232-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 4-pole
232-134
/005-000/039-000
Item no.: 232-135/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 5-pole
232-135
/005-000
Item no.: 232-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 5-pole
232-135
/005-000/039-000
Item no.: 232-136/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 6-pole
232-136
/005-000
Item no.: 232-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 6-pole
232-136
/005-000/039-000
Item no.: 232-137/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-137
/005-000
Item no.: 232-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 7-pole
232-137
/005-000/039-000
Item no.: 232-138/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 8-pole
232-138
/005-000
Item no.: 232-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 8-pole
232-138
/005-000/039-000
Item no.: 232-139/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 9-pole
232-139
/005-000
Item no.: 232-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 9-pole
232-139
/005-000/039-000
Item no.: 232-140/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 10-pole
232-140
/005-000
280-528
01.05.2019Page /8 20
Data sheet | Item number:280-528
Item no.: 232-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 10-pole
232-140
/005-000/039-000
Item no.: 232-142/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 12-pole
232-142
/005-000
Item no.: 232-142/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 12-pole
232-142
/005-000/039-000
Item no.: 232-146/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 16-pole
232-146
/005-000
Item no.: 232-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 16-pole
232-146
/005-000/039-000
Item no.: 232-147/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 17-pole
232-147
/005-000/039-000
Item no.: 232-150/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 20-pole
232-150
/005-000
Item no.: 232-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Locking lever; Pin spacing 5 mm; 20-pole
232-150
/005-000/039-000
Item no.: 232-232/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 2-pole
232-232
/005-000
Item no.: 232-232/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 2-pole
232-232
/005-000/039-000
Item no.: 232-233/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 3-pole
232-233
/005-000
Item no.: 232-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 3-pole
232-233
/005-000/039-000
Item no.: 232-234/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 4-pole
232-234
/005-000
Item no.: 232-234/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 4-pole
232-234
/005-000/039-000
280-528
01.05.2019Page /9 20
Data sheet | Item number:280-528
Item no.: 232-235/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 5-pole
232-235
/005-000
Item no.: 232-235/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 5-pole
232-235
/005-000/039-000
Item no.: 232-236/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 6-pole
232-236
/005-000
Item no.: 232-236/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 6-pole
232-236
/005-000/039-000
Item no.: 232-237/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 5 mm; 7-pole
232-237
/005-000
Item no.: 232-238/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 8-pole
232-238
/005-000
Item no.: 232-239/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 9-pole
232-239
/005-000
Item no.: 232-240/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 10-pole
232-240
/005-000
Item no.: 232-240/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 10-pole
232-240
/005-000/039-000
Item no.: 232-242/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 12-pole
232-242
/005-000
Item no.: 232-242/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 12-pole
232-242
/005-000/039-000
Item no.: 232-246/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 16-pole
232-246
/005-000
Item no.: 232-246/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 16-pole
232-246
/005-000/039-000
Item no.: 232-250/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 5 mm; 20-pole
232-250
/005-000
Item no.: 232-250/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 20-pole
232-250
/005-000/039-000
280-528
01.05.2019Page /10 20
Data sheet | Item number:280-528
Female connector for rail-mount terminal blocks; angled; Locking lever; Pin spacing 5 mm; 20-pole /005-000/039-000
Item no.: 232-732/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 2-pole
232-732
/005-000
Item no.: 232-733/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 3-pole
232-733
/005-000
Item no.: 232-734/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000
Item no.: 232-734/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 4-pole
232-734
/005-000/039-000
Item no.: 232-735/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000
Item no.: 232-735/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 5-pole
232-735
/005-000/039-000
Item no.: 232-736/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000
Item no.: 232-736/005-000/039-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-736
/005-000/039-000
Item no.: 232-738/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 8-pole
232-738
/005-000
Item no.: 232-740/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-740
/005-000
Item no.: 232-742/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-742
/005-000
Item no.: 232-832/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 2-pole
232-832
/005-000
Item no.: 232-833/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 3-pole
232-833
/005-000
Item no.: 232-834/005-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 4-pole
232-834
/005-000
280-528
01.05.2019Page /11 20
Data sheet | Item number:280-528
Item no.: 232-836/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 6-pole
232-836
/005-000
Item no.: 232-836/005-000/039-000
Female connector for rail-mount terminal blocks; angled; Pin spacing 7.5 mm; 6-pole
232-836
/005-000/039-000
Item no.: 232-840/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 10-pole
232-840
/005-000
Item no.: 232-842/005-000
Female connector for rail-mount terminal blocks; straight; Pin spacing 7.5 mm; 12-pole
232-842
/005-000
Item no.: 722-132/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 2-pole
722-132
/005-000
Item no.: 722-132/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-132
/005-000/039-000
Item no.: 722-133/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-133
/005-000
Item no.: 722-133/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-133
/005-000/039-000
Item no.: 722-134/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 4-pole
722-134
/005-000
Item no.: 722-134/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 4-pole
722-134
/005-000/039-000
Item no.: 722-135/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 5-pole
722-135
/005-000
Item no.: 722-135/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 5-pole
722-135
/005-000/039-000
Item no.: 722-136/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 6-pole
722-136
/005-000
Item no.: 722-136/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 6-pole
722-136
/005-000/039-000
Item no.: 722-137/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
722-137
/005-000
280-528
01.05.2019Page /12 20
Data sheet | Item number:280-528
spacing 5 mm; 7-pole
Item no.: 722-137/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 7-pole
722-137
/005-000/039-000
Item no.: 722-138/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 8-pole
722-138
/005-000
Item no.: 722-138/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 8-pole
722-138
/005-000/039-000
Item no.: 722-139/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 9-pole
722-139
/005-000
Item no.: 722-139/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 9-pole
722-139
/005-000/039-000
Item no.: 722-140/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 10-pole
722-140
/005-000
Item no.: 722-140/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 10-pole
722-140
/005-000/039-000
Item no.: 722-141/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 11-pole
722-141
/005-000
Item no.: 722-142/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 12-pole
722-142
/005-000
Item no.: 722-142/005-007/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 12-pole
722-142
/005-007/039-000
Item no.: 722-143/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 13-pole
722-143
/005-000
Item no.: 722-144/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 14-pole
722-144
/005-000
Item no.: 722-144/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 14-pole
722-144
/005-000/039-000
Item no.: 722-145/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 15-pole
722-145
/005-000
Item no.: 722-146/005-000
280-528
01.05.2019Page /13 20
Data sheet | Item number:280-528
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 16-pole
722-146
/005-000
Item no.: 722-146/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 16-pole
722-146
/005-000/039-000
Item no.: 722-150/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 20-pole
722-150
/005-000
Item no.: 722-150/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 20-pole
722-150
/005-000/039-000
Item no.: 722-232/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-232
/005-000
Item no.: 722-232/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-232
/005-000/039-000
Item no.: 722-233/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 3-pole
722-233
/005-000
Item no.: 722-233/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 3-pole
722-233
/005-000/039-000
Item no.: 722-234/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 4-pole
722-234
/005-000
Item no.: 722-234/005-000/039-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 4-pole
722-234
/005-000/039-000
Item no.: 722-235/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 5-pole
722-235
/005-000
Item no.: 722-235/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 5-pole
722-235
/005-000/039-000
Item no.: 722-236/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 6-pole
722-236
/005-000
Item no.: 722-236/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 6-pole
722-236
/005-000/039-000
Item no.: 722-237/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 7-pole
722-237
/005-000
280-528
01.05.2019Page /14 20
Data sheet | Item number:280-528
Item no.: 722-237/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 7-pole
722-237
/005-000/039-000
Item no.: 722-238/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 8-pole
722-238
/005-000
Item no.: 722-239/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 9-pole
722-239
/005-000
Item no.: 722-239/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 9-pole
722-239
/005-000/039-000
Item no.: 722-240/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 10-pole
722-240
/005-000
Item no.: 722-240/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 10-pole
722-240
/005-000/039-000
Item no.: 722-241/005-000
Female connector for rail-mount terminal blocks; straight; 100% protected against mismating; Pin
spacing 5 mm; 11-pole
722-241
/005-000
Item no.: 722-242/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 12-pole
722-242
/005-000
Item no.: 722-242/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 12-pole
722-242
/005-000/039-000
Item no.: 722-243/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 13-pole
722-243
/005-000
Item no.: 722-244/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 14-pole
722-244
/005-000
Item no.: 722-244/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 14-pole
722-244
/005-000/039-000
Item no.: 722-246/005-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 16-pole
722-246
/005-000
Item no.: 722-246/005-000/039-000
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating;
Locking lever; Pin spacing 5 mm; 16-pole
722-246
/005-000/039-000
Item no.: 722-250/005-000
280-528
01.05.2019Page /15 20
Data sheet | Item number:280-528
Female connector for rail-mount terminal blocks; angled; 100% protected against mismating; Pin
spacing 5 mm; 20-pole
722-250
/005-000
General accessories
Item no.: 231-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 2-pole
231-162
/003-000
Item no.: 231-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 3-pole
231-163
/003-000
Item no.: 231-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 4-pole
231-164
/003-000
Item no.: 231-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 5-pole
231-165
/003-000
Item no.: 231-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 6-pole
231-166
/003-000
Item no.: 231-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 7-pole
231-167
/003-000
Item no.: 231-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 8-pole
231-168
/003-000
Item no.: 231-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 9-pole
231-169
/003-000
Item no.: 231-170/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 10-pole
231-170
/003-000
Item no.: 231-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 11-pole
231-171
/003-000
Item no.: 231-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 12-pole
231-172
/003-000
Item no.: 231-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 16-pole
231-176
/003-000
Item no.: 231-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; Pin spacing 5 mm; 20-pole
231-180
/003-000
Item no.: 231-668
280-528
01.05.2019Page /16 20
Data sheet | Item number:280-528
Item no.: 231-668
Lockout caps; for covering unused clamping units 231-668
Item no.: 231-669
Lockout caps; for covering unused clamping units
231-669
Item no.: 281-511
Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; without blown fuse
indication; 6 mm wide
281-511
Item no.: 281-512
Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with port for LED; 6 mm
wide
281-512
Item no.: 281-512/281-417
Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse
indication by neon lamp; 230 V; 6 mm wide
281-512
/281-417
Item no.: 281-512/281-418
Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with blown fuse
indication by neon lamp; 120 V; 6 mm wide
281-512
/281-418
Item no.: 281-512/281-501
Fuse plug; with pull-tab; for miniature metric fuses 5 x 20 mm and 5 x 25 mm; with LED indicator; 24 V
AC/DC; 6 mm wide
281-512
/281-501
Item no.: 721-162/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 2-pole
721-162
/003-000
Item no.: 721-163/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 3-pole
721-163
/003-000
Item no.: 721-164/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 4-pole
721-164
/003-000
Item no.: 721-165/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 5-pole
721-165
/003-000
Item no.: 721-166/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 6-pole
721-166
/003-000
Item no.: 721-167/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 7-pole
721-167
/003-000
Item no.: 721-168/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 8-pole
721-168
/003-000
Item no.: 721-169/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 9-pole
721-169
/003-000
Item no.: 721-170/003-000
280-528
01.05.2019Page /17 20
Data sheet | Item number:280-528
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 10-pole
721-170
/003-000
Item no.: 721-171/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 11-pole
721-171
/003-000
Item no.: 721-172/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 12-pole
721-172
/003-000
Item no.: 721-173/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 13-pole
721-173
/003-000
Item no.: 721-174/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 14-pole
721-174
/003-000
Item no.: 721-175/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 15-pole
721-175
/003-000
Item no.: 721-176/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 16-pole
721-176
/003-000
Item no.: 721-180/003-000
Male connector for rail-mount terminal blocks; 1.2 x 1.2 mm pins; straight; 100% protected against
mismating; Pin spacing 5 mm; 20-pole
721-180
/003-000
check
Item no.: 249-141
L-type test plug module; modular; with spring-loaded contact pin; Center module
249-141
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip
280-470
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip
280-471
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
280-472
assembling
Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails
209-106
Item no.: 709-154
Cover; Type 2; suitable for cover carrier, type 2; 1 m long
709-154
plug
Item no.: 280-850
Fuse plug; with soldered miniature fuse; 250 mA FF; 5 mm wide
280-850
280-528
01.05.2019Page /18 20
Data sheet | Item number:280-528
Item no.: 280-850/281-413
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 250 mA FF; 5
mm wide
280-850
/281-413
Item no.: 280-850/281-414
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 250 mA FF; 5
mm wide
280-850
/281-414
Item no.: 280-850/281-415
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 250 mA FF; 5
mm wide
280-850
/281-415
Item no.: 280-852
Fuse plug; with soldered miniature fuse; 500 mA FF; 5 mm wide
280-852
Item no.: 280-852/281-413
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 500 mA FF; 5
mm wide
280-852
/281-413
Item no.: 280-852/281-414
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 500 mA FF; 5
mm wide
280-852
/281-414
Item no.: 280-852/281-415
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 500 mA FF; 5
mm wide
280-852
/281-415
Item no.: 280-854
Fuse plug; with soldered miniature fuse; 1 A FF; 5 mm wide
280-854
Item no.: 280-854/281-413
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 1 A FF; 5 mm
wide
280-854
/281-413
Item no.: 280-854/281-414
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 1 A FF; 5 mm
wide
280-854
/281-414
Item no.: 280-854/281-415
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 1 A FF; 5 mm
wide
280-854
/281-415
Item no.: 280-856
Fuse plug; with soldered miniature fuse; 2 A FF; 5 mm wide
280-856
Item no.: 280-856/281-413
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 15 - 30 V; 2 A FF; 5 mm
wide
280-856
/281-413
Item no.: 280-856/281-414
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); DC 30 - 65 V; 2 A FF; 5 mm
wide
280-856
/281-414
Item no.: 280-856/281-415
Fuse plug; with soldered miniature fuse; with indicator lamp; LED (red); AC 15 - 30 V; 2 A FF; 5 mm
wide
280-856
/281-415
280-528
01.05.2019Page /19 20
Data sheet | Item number:280-528
Downloads
Documentation
Bid Text
280-528 doc
25.6 kB
Download
CAD/CAE - Smart Data
CAD data
3D Download 280-528 URL Download
280-528
Subject to changes.
01.05.2019Page /20 20
Loading...
