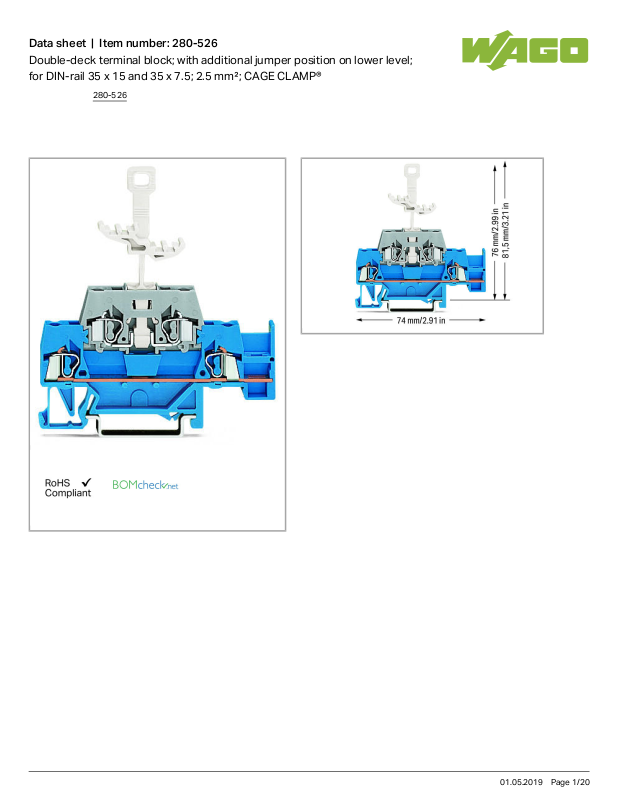

Data sheet | Item number:280-526
Double-deck terminal block; with additional jumper position on lower level;
for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
280-526
01.05.2019Page /1 20
Data sheet | Item number:280-526
Item description
Note:
Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for
termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade
then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A
4mm² (12 AWG) = 22 A
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 400 V
Rated impulse voltage (III / 3) 6 kV
280-526
01.05.2019Page /2 20
Data sheet | Item number:280-526
Rated current 10 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 3
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 81.5mm/ 3.209inch
Depth 74mm/ 2.913inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color blue/gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.182 MJ
Weight 11.3g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4044918539029
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
280-526
01.05.2019Page /3 20
Data sheet | Item number:280-526
Country specific Approvals
Logo
Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0
BV
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
