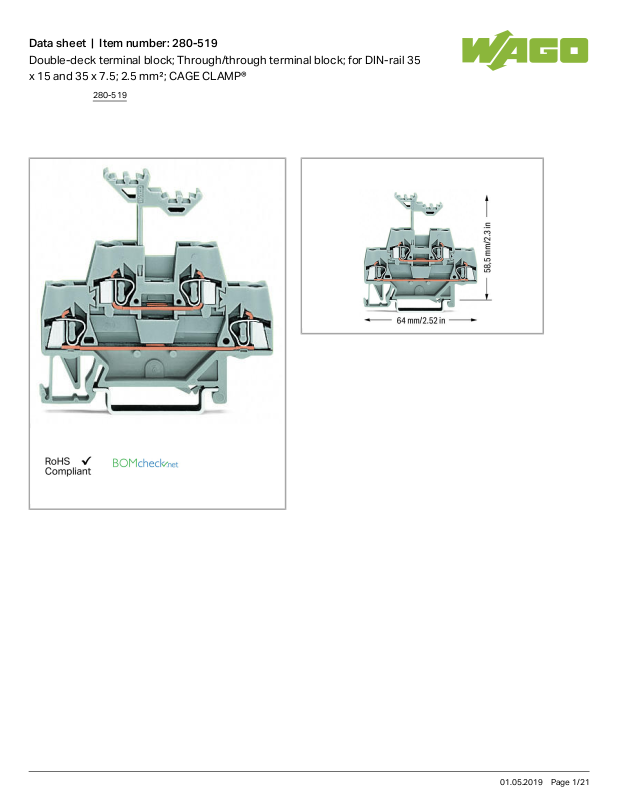

Wago 280-519 Data Sheet

Data sheet | Item number:280-519
Double-deck terminal block; Through/through terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
280-519
01.05.2019Page /1 21

Item description

Note: Terminating Aluminum Conductors
WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4mm²/12AWG if WAGO “Alu-Plus” Contact Paste is used for termination.
“Alu-Plus” Contact Paste Advantages:
Automatically destroys the oxide film during clamping.
Prevents fresh oxidation at the clamping point.
Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, and aluminum conductors must first be cleaned with a blade then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.
It is also possible to apply WAGO “Alu-Plus” on the whole surface of the aluminum conductor before termination.additionally
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5mm² (14 AWG) = 16 A 4mm² (12 AWG) = 22 A

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
280-519
01.05.2019Page /2 21
Rated current 20 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Aluminum
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 58.5mm/ 2.303inch
Depth 64mm/ 2.52inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color gray/gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.166 MJ
Weight 10.061g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4050821293583
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
280-519
01.05.2019Page /3 21
Country specific Approvals
Logo
Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2157201.01
CSA
DEKRA Certification B.V.
C22.2 1536071
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
EN 60947 14-
HG1293677­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

280-519
01.05.2019Page /4 21
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated
216-201
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated
216-202
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated
216-203
Item no.: 216-204
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated
216-204
Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated
216-301
Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated
216-302
Jumper
Item no.: 210-103
Wire commoning chain; insulated; 50 connections
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²
249-123
Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²
249-125
Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²
249-126
Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²
249-127
Item no.: 280-402
Adjacent jumper; insulated; IN = IN terminal block
280-402
280-519
01.05.2019Page /5 21
Item no.: 280-409
Alternate jumper; insulated; IN = IN terminal block
280-409
Item no.: 280-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-482
Item no.: 280-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block
280-483
Item no.: 280-484
Comb-style jumper bar; insulated; 4-way; IN = IN terminal block
280-484
Item no.: 280-485
Comb-style jumper bar; insulated; 5-way; IN = IN terminal block
280-485
Item no.: 280-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block
280-490
Item no.: 280-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block
280-492
Item no.: 281-421
Vertical jumper; insulated; Nominal current 24 A
281-421
Item no.: 709-110
Wire commoning chain; insulated; 4 connections; 3 x 110 mm
709-110
Item no.: 709-111
Wire commoning chain; insulated; 3 connections; 2 x 120 mm
709-111
Item no.: 709-112
Wire commoning chain; insulated; 3 connections; 2 x 170 mm
709-112
Item no.: 780-452
Staggered jumper; insulated; from 1 to 2; Spacing: 5 mm; suitable for 2-conductor female plugs
780-452
Item no.: 780-453
Staggered jumper; insulated; from 1 to 3; Spacing: 5 mm; suitable for 2-conductor female plugs
780-453
Item no.: 780-454
Staggered jumper; insulated; from 1 to 4; Spacing: 5 mm; suitable for 2-conductor female plugs
780-454
Item no.: 780-455
Staggered jumper; insulated; from 1 to 5; Spacing: 5 mm; suitable for 2-conductor female plugs
780-455
Item no.: 780-456
Staggered jumper; insulated; from 1 to 6; Spacing: 5 mm; suitable for 2-conductor female plugs
780-456
Item no.: 780-457
Staggered jumper; insulated; from 1 to 7; Spacing: 5 mm; suitable for 2-conductor female plugs
780-457
Item no.: 780-458
Staggered jumper; insulated; from 1 to 8; Spacing: 5 mm; suitable for 2-conductor female plugs
780-458
End plate
Item no.: 280-340
End and intermediate plate; 2.5 mm thick
280-340
280-519
01.05.2019Page /6 21
Item no.: 280-341
End and intermediate plate; 2.5 mm thick
280-341
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-002
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type
793-501
/000-012
280-519
01.05.2019Page /7 21
