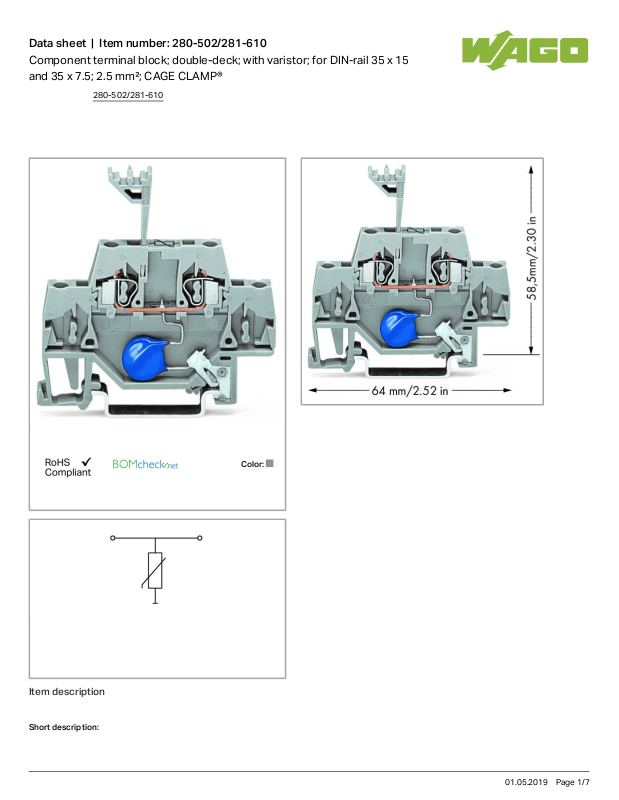

Wago 280-502/281-610 Data Sheet

Data sheet | Item number:280-502/281-610

Component terminal block; double-deck; with varistor; for DIN-rail 35 x 15
and 35 x 7.5; 2.5 mm²; CAGE CLAMP®

Color:

Item description

Short description:

280-502/281-610

01.05.2019Page /1 7

Data sheet | Item number:280-502/281-610

Terminal blocks with surge suppression device and direct connection to the DIN-35 rail; these single-stage surge suppression devices are
equipped either with 280 Series gas-filled surge arrester (coarse), varistor (medium) or suppressor diode (fine).

Features:

Protect your system against overvoltage

Slim, space-saving design

Control operational costs by preventing expensive, unplanned downtime

High operational reliability and system uptime

Data

Electrical data

Nominal operating voltage DC48V

Maximum continuous operating voltage DC65V

Rated continuous current 20 A

Nominal discharge current (8/20 µs) per line 300A

Max. discharge current 1.2 kA

Voltage protection level (8/20 μs) ≤DC 135V

Capacitance ≤500pF

Connection data

Connections (number) 2

Connection technology

CAGE CLAMP

®

Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 58.5mm/ 2.303inch

Depth 64mm/ 2.52inch

Mechanical data

Design With direct connection to DIN rail

Type of mounting DIN-35 rail

Material Data

Color gray

Fire load 0 MJ

Weight 8.47g

280-502/281-610

01.05.2019Page /2 7

Data sheet | Item number:280-502/281-610

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4050821861171

Customs Tariff No. 85369010000
