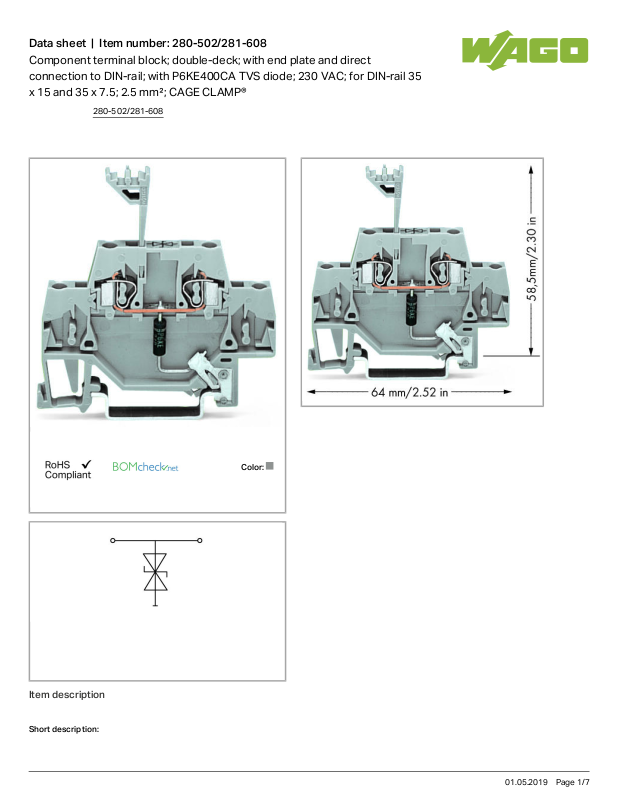

Data sheet | Item number:280-502/281-608
Component terminal block; double-deck; with end plate and direct
connection to DIN-rail; with P6KE400CA TVS diode; 230 VAC; for DIN-rail 35
x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®
Color:
Item description
Short description:
280-502/281-608
01.05.2019Page /1 7
Data sheet | Item number:280-502/281-608
Terminal blocks with surge suppression device and direct connection to the DIN-35 rail; these single-stage surge suppression devices are
equipped either with 280 Series gas-filled surge arrester (coarse), varistor (medium) or suppressor diode (fine).
Features:
Protect your system against overvoltage
Slim, space-saving design
Control operational costs by preventing expensive, unplanned downtime
High operational reliability and system uptime
Data
Electrical data
Nominal operating voltage AC230V
Maximum continuous operating voltage AC253V
Rated continuous current 20 A
Nominal discharge current (10/1000 µs) per line 1.1A
Voltage protection level (10/1000 μs) ≤AC 548V
Response time line/line ≤
Capacitance ≤360pF
Connection data
Connections (number) 2
Connection technology
CAGE CLAMP
®
Solid conductor 0.08 … 2.5mm²/ 28 … 14AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 14AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 58.5mm/ 2.303inch
Depth 64mm/ 2.52inch
Mechanical data
Design With direct connection to DIN rail
Type of mounting DIN-35 rail
Material Data
Color gray
Fire load 0 MJ
Weight 8.301g
280-502/281-608
01.05.2019Page /2 7
Data sheet | Item number:280-502/281-608
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4045454604844
Customs Tariff No. 85369010000
Compatible products
tools
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
End plate
Item no.: 280-340
End and intermediate plate; 2.5 mm thick
280-340
Item no.: 280-341
End and intermediate plate; 2.5 mm thick
280-341
Marking accessories
Item no.: 2009-115
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type
2009-115
/000-024
