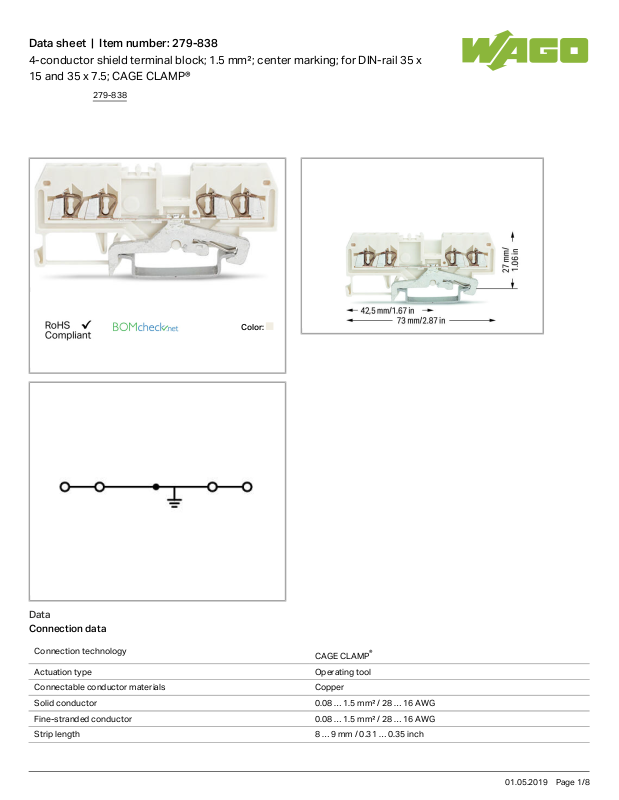

Wago 279-838 Data Sheet
Data sheet | Item number:279-838
4-conductor shield terminal block; 1.5 mm²; center marking; for DIN-rail 35 x
15 and 35 x 7.5; CAGE CLAMP®
Color:
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG
Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
279-838
01.05.2019Page /1 8
Data sheet | Item number:279-838
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Geometrical Data
Width 4mm/ 0.157inch
Height from upper-edge of DIN-35 rail 27mm/ 1.063inch
Depth 73mm/ 2.874inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking
Material Data
Color white
Insulating material Polyamide 66 (PA 66)
Fire load 0.208 MJ
Weight 13.382g
Commercial data
Country of origin DE
GTIN 4045454084462
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7081
CSA
DEKRA Certification B.V.
C22.2 No. 158 70133738
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2160584.04
279-838
01.05.2019Page /2 8
Data sheet | Item number:279-838
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
EN 60947 91/20112
(E9)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
General accessories
Item no.: 249-105
Group marker carrier
249-105
Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs
280-404
Protective Warning Marker
279-838
01.05.2019Page /3 8
