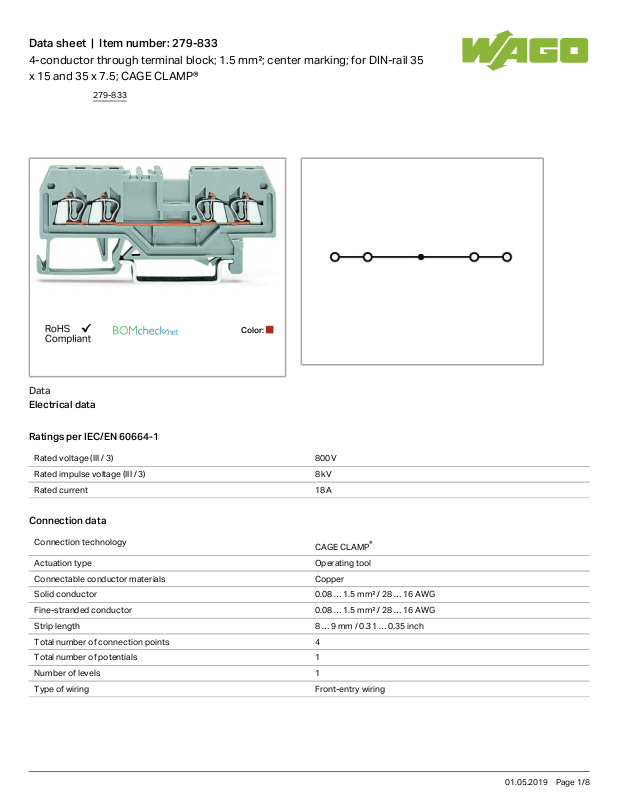

Wago 279-833 Data Sheet

Data sheet | Item number:279-833

4-conductor through terminal block; 1.5 mm²; center marking; for DIN-rail 35
x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

279-833

01.05.2019Page /1 8

Data sheet | Item number:279-833

Geometrical Data

Width 4mm/ 0.157inch

Height from upper-edge of DIN-35 rail 27mm/ 1.063inch

Depth 73mm/ 2.874inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color red

Insulating material Polyamide 66 (PA 66)

Fire load 0.116 MJ

Weight 6.31g

Commercial data

Country of origin DE

GTIN 4044918520522

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7081

CSA

DEKRA Certification B.V.

C22.2 No. 158 70133738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2160584.04

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

279-833

01.05.2019Page /2 8

Data sheet | Item number:279-833

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

assembling

Item no.: 209-106

Mounting carrier; for isolated mounting on DIN 35 rails

209-106

Item no.: 709-153

Cover; Type 1; suitable for cover carrier, type 1; 1 m long

709-153

Protective Warning Marker

Item no.: 279-415

Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks

279-415

Jumper
