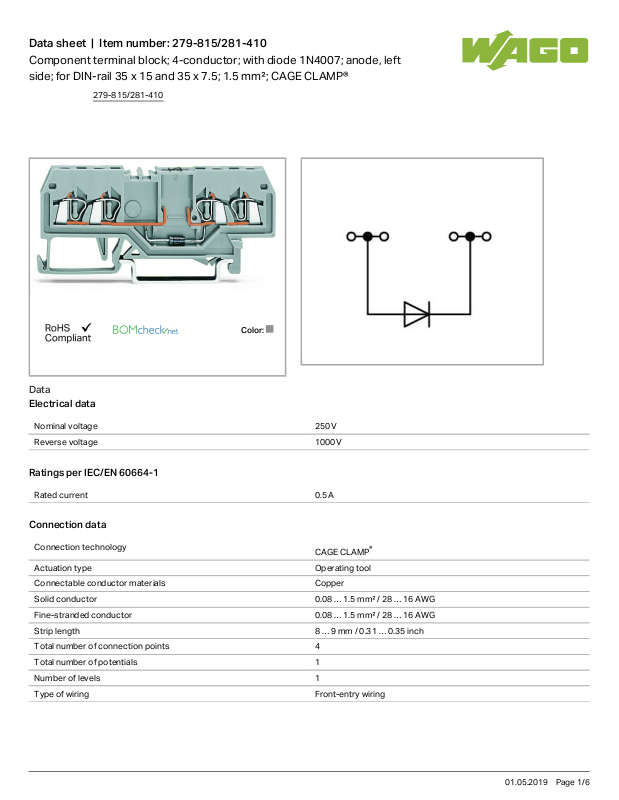

Wago 279-815/281-410 Data Sheet

Data sheet | Item number:279-815/281-410

Component terminal block; 4-conductor; with diode 1N4007; anode, left
side; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Nominal voltage 250 V

Reverse voltage 1000 V

Ratings per IEC/EN 60664-1

Rated current 0.5 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

279-815/281-410

01.05.2019Page /1 6

Data sheet | Item number:279-815/281-410

Geometrical Data

Width 4mm/ 0.157inch

Height from upper-edge of DIN-35 rail 27mm/ 1.063inch

Depth 73mm/ 2.874inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.132 MJ

Weight 6.838g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821275398

Customs Tariff No. 85369010000

Compatible products

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-201
