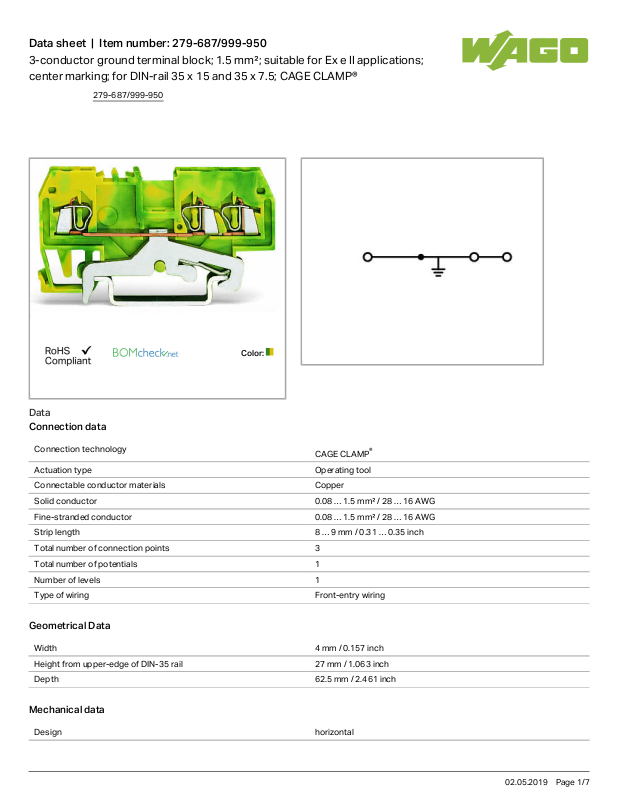

Wago 279-687/999-950 Data Sheet

Data sheet | Item number:279-687/999-950

3-conductor ground terminal block; 1.5 mm²; suitable for Ex e II applications;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 4mm/ 0.157inch

Height from upper-edge of DIN-35 rail 27mm/ 1.063inch

Depth 62.5mm/ 2.461inch

Mechanical data

Design horizontal

279-687/999-950

02.05.2019Page /1 7

Data sheet | Item number:279-687/999-950

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Fire load 0.089 MJ

Weight 8.883g

Commercial data

Country of origin DE

GTIN 4045454085094

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

Sec.15

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7081

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2160584.04

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

279-687/999-950

02.05.2019Page /2 7

Data sheet | Item number:279-687/999-950

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Insulation stop

Item no.: 279-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

279-470

Item no.: 279-471

Insulation stop; 0.25 mm²; 5 pieces/strip

279-471

Jumper

Item no.: 210-103

Wire commoning chain; insulated; 50 connections

210-103

Item no.: 249-123

Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²

249-123

Item no.: 249-125

Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²

249-125

Item no.: 249-126

Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²

249-126
