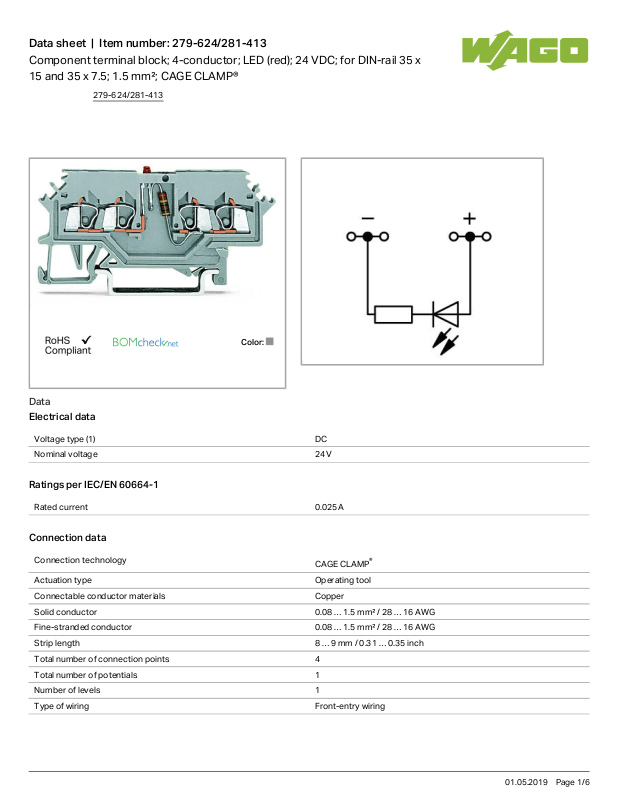

Wago 279-624/281-413 Data Sheet

Data sheet | Item number:279-624/281-413

Component terminal block; 4-conductor; LED (red); 24 VDC; for DIN-rail 35 x
15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Ratings per IEC/EN 60664-1

Rated current 0.025 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG

Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

279-624/281-413

01.05.2019Page /1 6

Data sheet | Item number:279-624/281-413

Geometrical Data

Width 4mm/ 0.157inch

Height from upper-edge of DIN-35 rail 27mm/ 1.063inch

Depth 68mm/ 2.677inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Insulating material Polyamide 66 (PA 66)

Fire load 0.109 MJ

Weight 5.921g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4045454193911

Customs Tariff No. 85369010000

Approvals / Certificates

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

EN 60947 91/20112

(E9)

Compatible products

279-624/281-413
