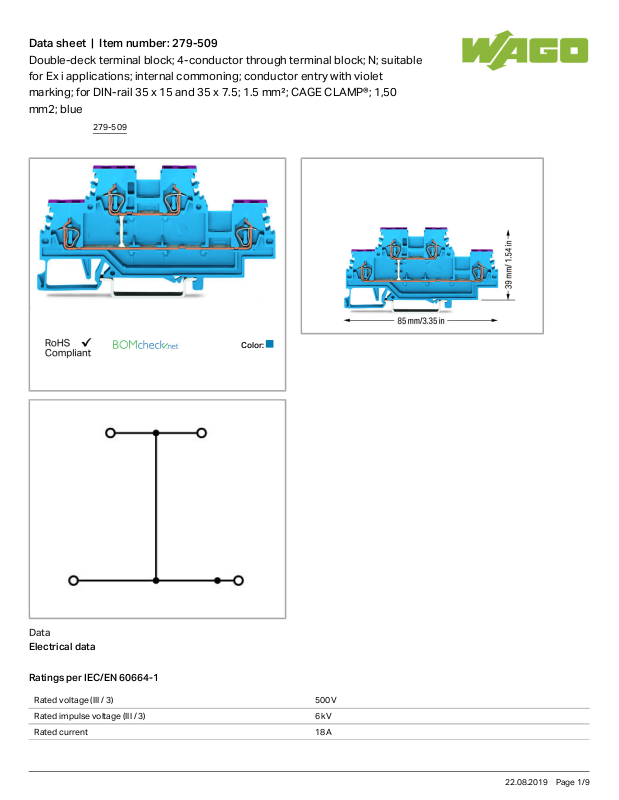

Wago 279-509 Data Sheet

Data sheet | Item number:279-509

Double-deck terminal block; 4-conductor through terminal block; N; suitable
for Ex i applications; internal commoning; conductor entry with violet
marking; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®; 1,50
mm2; blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 500 V

Rated impulse voltage (III / 3) 6 kV

Rated current 18 A

279-509

22.08.2019Page /1 9

Data sheet | Item number:279-509

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 1.5mm²/ 28 16AWG

Fine-stranded conductor 0.08 1.5mm²/ 28 16AWG

Strip length 8 9mm/ 0.31 0.35inch

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Type of wiring Front-entry wiring

Geometrical Data

Width 4mm/ 0.157inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 85mm/ 3.346inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Potential marking N

Marking level Side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Fire load 0.146 MJ

Weight 7.841g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821614142

Customs Tariff No. 85369010000

Approvals / Certificates

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

279-509

22.08.2019Page /2 9

Data sheet | Item number:279-509

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7081

CSA C22.2 No. 158 70133738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2160584.04

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1293677­PDA

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7081

CSA

DEKRA Certification B.V.

C22.2 No. 158 70133738

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 2160584.04

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14-

HG1293677­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

Other Approvals

Logo Approval Additional Approval Text

Certificate
name

279-509

22.08.2019Page /3 9

Data sheet | Item number:279-509

UR

Underwriters Laboratories Inc.

UL 1059 E45172

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Carrier rail

Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm

210-112

Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715

210-113

Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715

210-114

Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm

210-115

Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715

210-118

Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silver­colored

210-196

Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715

210-197

Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; copper­colored

210-198

279-509

22.08.2019Page /4 9

Data sheet | Item number:279-509

Item no.: 210-504
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; galvanized; according to EN 60715

210-504

Item no.: 210-505
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; galvanized; according to EN 60715

210-505

Item no.: 210-506
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; galvanized; similar to EN 60715

210-506

Item no.: 210-508
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; galvanized; similar to EN 60715

210-508

End plate

Item no.: 209-192
Separator for Ex e/Ex i applications; 3 mm thick; 125.5 mm wide; orange

209-192

Item no.: 279-518
End and intermediate plate; 2 mm thick; gray

279-518

Item no.: 279-519
End and intermediate plate; 2 mm thick; orange

279-519

Jumper

Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black

210-103

Item no.: 249-123
Push-in type wire jumper; insulated; wire length 180 mm; Conductor cross section 0.75 mm²

249-123

Item no.: 249-125
Push-in type wire jumper; insulated; wire length 60 mm; Conductor cross section 0.75 mm²

249-125

Item no.: 249-126
Push-in type wire jumper; insulated; wire length 110 mm; Conductor cross section 0.75 mm²

249-126

Item no.: 249-127
Push-in type wire jumper; insulated; wire length 250 mm; Conductor cross section 0.75 mm²

249-127

Item no.: 279-402
Adjacent jumper; insulated; Nominal current 15 A; gray

279-402

Item no.: 279-409
Alternate jumper; insulated; Nominal current 15 A; gray

279-409

Item no.: 279-422
Adjacent jumper; insulated; Nominal current 15 A; yellow-green

279-422

Item no.: 279-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray

279-482

Item no.: 279-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block; gray

279-483

Item no.: 279-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block; gray

279-490

Item no.: 279-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray

279-492

Insulation stop

279-509

22.08.2019Page /5 9

Data sheet | Item number:279-509

Item no.: 279-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip; white

279-470

Item no.: 279-471
Insulation stop; 0.25 mm²; 5 pieces/strip; dark gray

279-471

assembling

Item no.: 209-106
Mounting carrier; for isolated mounting on DIN 35 rails; gray

209-106

Item no.: 709-153
Cover; Type 1; suitable for cover carrier, type 1; 1 m long; transparent

709-153

Protective Warning Marker

Item no.: 279-415
Protective warning marker; with high-voltage symbol, black; for 5 terminal blocks; yellow

279-415

check

Item no.: 209-170
Test plug adapter; 8.3 mm wide; for 4 mm Ø test plugs; suitable for 1.5 mm² - 10 mm² tbs; gray

209-170

tools

Item no.: 210-647
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-647

Item no.: 210-648
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short; angled

210-648

Item no.: 210-719
Operating tool; Blade: 2.5 x 0.4 mm; with a partially insulated shaft

210-719

General accessories

Item no.: 249-105
Group marker carrier

249-105

Item no.: 279-529
Adaptor

279-529

Item no.: 280-404
Test plug adapter; 5 mm wide; for test plug 210-137 (2.3 mm Ø); suitable for 1.5 mm² - 4 mm² tbs;
gray

280-404

ferrule

Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white

216-201

Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray

216-202

279-509

22.08.2019Page /6 9

Data sheet | Item number:279-509

Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red

216-203

Item no.: 216-301
Ferrule; Sleeve for 0.25 mm² / AWG 24; insulated; electro-tin plated; yellow

216-301

Item no.: 216-302
Ferrule; Sleeve for 0.34 mm² / 22 AWG; insulated; electro-tin plated; green

216-302

Marking accessories

Item no.: 2009-114

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; white

2009-114

Item no.: 2009-114/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; yellow

2009-114

/000-002

Item no.: 2009-114/000-005

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; red

2009-114

/000-005

Item no.: 2009-114/000-006

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; blue

2009-114

/000-006

Item no.: 2009-114/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; gray

2009-114

/000-007

Item no.: 2009-114/000-012

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; orange

2009-114

/000-012

Item no.: 2009-114/000-023

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; green

2009-114

/000-023

Item no.: 2009-114/000-024

WMB-Inline; for Smart Printer; on reel; stretchable 4 - 4.2 mm; plain; snap-on type; violet

2009-114

/000-024

Item no.: 209-128
Adaptor

209-128

Item no.: 209-140
Group marker carrier

209-140

Item no.: 209-141
Group marker carrier

209-141

Item no.: 209-142
Group marker carrier

209-142

Item no.: 209-185
Adaptor

209-185

Item no.: 793-4501

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; white

793-4501

279-509

22.08.2019Page /7 9

Data sheet | Item number:279-509

Item no.: 793-4501/000-002

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; yellow

793-4501

/000-002

Item no.: 793-4501/000-005

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; red

793-4501

/000-005

Item no.: 793-4501/000-006

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; blue

793-4501

/000-006

Item no.: 793-4501/000-007

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; gray

793-4501

/000-007

Item no.: 793-4501/000-012

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; orange

793-4501

/000-012

Item no.: 793-4501/000-017

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; light green

793-4501

/000-017

Item no.: 793-4501/000-023

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; green

793-4501

/000-023

Item no.: 793-4501/000-024

WMB marking card; as card; stretchable 4 - 4.2 mm; plain; snap-on type; violet

793-4501

/000-024
