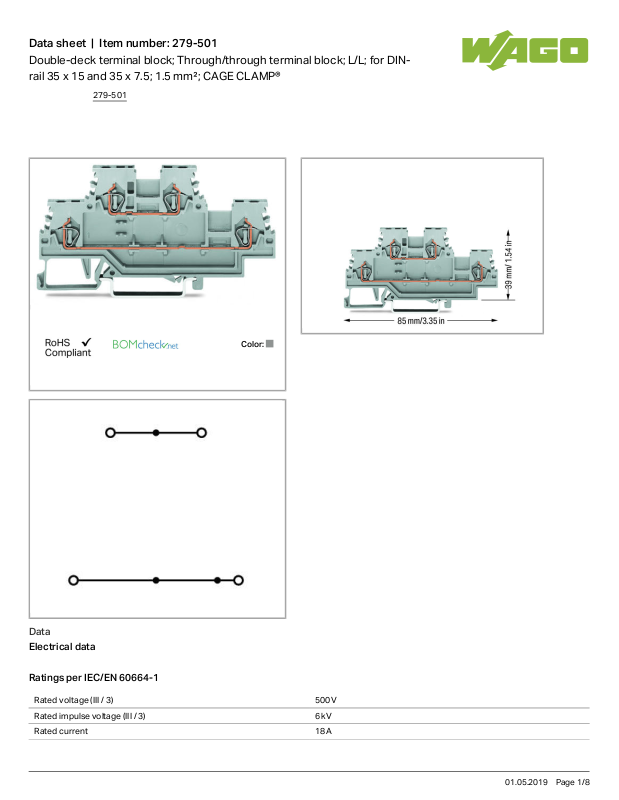

Wago 279-501 Data Sheet
Data sheet | Item number:279-501
Double-deck terminal block; Through/through terminal block; L/L; for DINrail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 500 V
Rated impulse voltage (III / 3) 6 kV
Rated current 18 A
279-501
01.05.2019Page /1 8
Data sheet | Item number:279-501
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 1.5mm²/ 28 … 16AWG
Fine-stranded conductor 0.08 … 1.5mm²/ 28 … 16AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Total number of connection points 4
Total number of potentials 2
Number of levels 2
Type of wiring Front-entry wiring
Geometrical Data
Width 4mm/ 0.157inch
Height from upper-edge of DIN-35 rail 39mm/ 1.535inch
Depth 85mm/ 3.346inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Potential marking L/L
Marking level Side marking
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.145 MJ
Weight 7.6g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin DE
GTIN 4050821109310
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
279-501
01.05.2019Page /2 8
Data sheet | Item number:279-501
Logo Approval Additional Approval Text name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7081
CSA
DEKRA Certification B.V.
C22.2 No. 158 70133738
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 2160584.04
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1293677PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
tools
Item no.: 210-647
Operating tool with partially insulated shaft; Blade (2.5 x 0.4) mm; short
210-647
279-501
01.05.2019Page /3 8
