Wago 270-585 Data Sheet

Data sheet | Item number:270-585

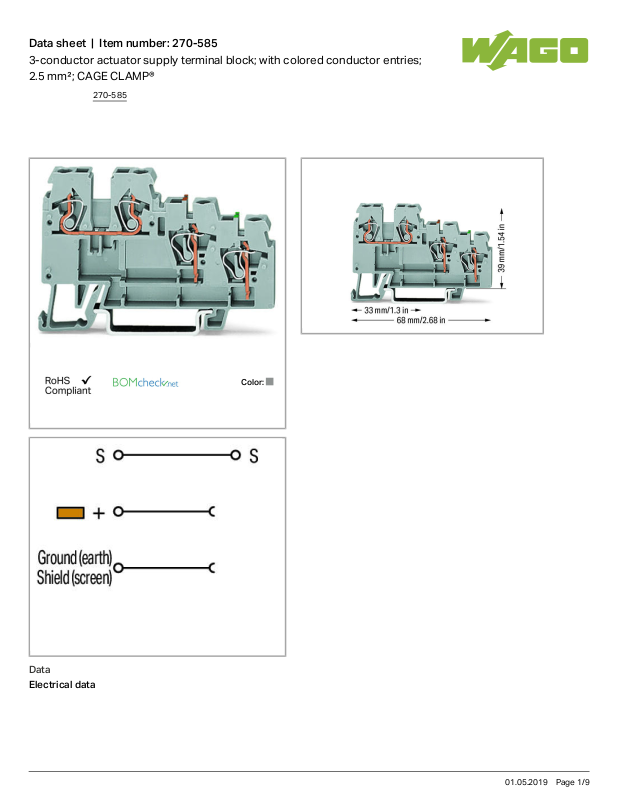

3-conductor actuator supply terminal block; with colored conductor entries;

2.5 mm²; CAGE CLAMP®

Color:

Data

Electrical data

270-585

01.05.2019Page /1 9

Data sheet | Item number:270-585

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 4

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 68mm/ 2.677inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Fire load 0.172 MJ

Weight 8.817g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821035282

Customs Tariff No. 85369010000

270-585

01.05.2019Page /2 9

Data sheet | Item number:270-585

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 2143311.03

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6828

CSA

DEKRA Certification B.V.

C22.2 1565649

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Insulation stop

Item no.: 280-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

280-470

Item no.: 280-471

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

280-471

Item no.: 280-472

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

280-472

ferrule

Item no.: 216-121

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-121

Item no.: 216-122

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-122

270-585

01.05.2019Page /3 9
