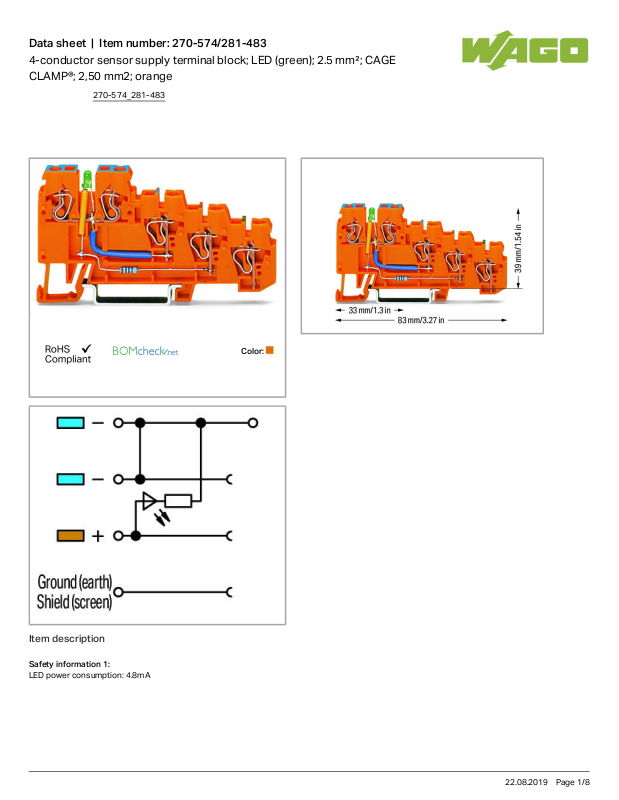

Wago 270-574/281-483 Data Sheet

Data sheet | Item number:270-574/281-483
4-conductor sensor supply terminal block; LED (green); 2.5 mm²; CAGE CLAMP®; 2,50 mm2; orange
Color:
Item description
Safety information 1:
LED power consumption: 4.8mA
270-574_281-483
22.08.2019Page /1 8
Data sheet | Item number:270-574/281-483
Data
Electrical data
Voltage type (1) DC
Nominal voltage 24 V
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 2.5mm²/ 28 12AWG
Fine-stranded conductor 0.08 2.5mm²/ 28 12AWG
Strip length 6 7mm/ 0.24 0.28inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 5
Total number of potentials 4
Number of levels 4
Type of wiring Front-entry wiring
Geometrical Data
Width 5mm/ 0.197inch
Height from upper-edge of DIN-35 rail 39mm/ 1.535inch
Depth 83mm/ 3.268inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Side marking
Material Data
Color orange
Fire load 0.208 MJ
Weight 11.51g
Commercial data
Product Group 1 (Rail Mounted Terminal Blocks)
Country of origin CN
GTIN 4045454365653
Customs Tariff No. 85369010000
270-574_281-483
22.08.2019Page /2 8
Data sheet | Item number:270-574/281-483
Approvals / Certificates
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 2143311.03
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
6828
CSA
DEKRA Certification B.V.
C22.2 1565649
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
6828
CCA
DEKRA Certification B.V.
EN 60947 2143311.03
CSA
DEKRA Certification B.V.
C22.2 1565649
Compatible products
Jumper
Item no.: 270-409
Jumper; unplated; 9-way; Nominal current 18 A; silver-colored
270-409
Item no.: 270-417
Jumper; unplated; 17-way; Nominal current 18 A; silver-colored
270-417
270-574_281-483
22.08.2019Page /3 8
