Wago 270-570/281-507 Data Sheet

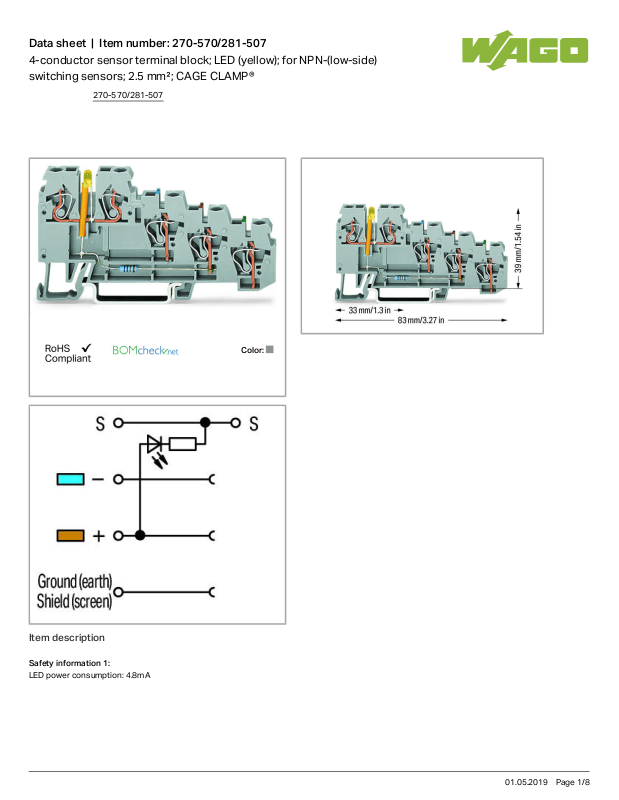

Data sheet | Item number:270-570/281-507

4-conductor sensor terminal block; LED (yellow); for NPN-(low-side)
switching sensors; 2.5 mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

LED power consumption: 4.8mA

270-570/281-507

01.05.2019Page /1 8

Data sheet | Item number:270-570/281-507

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 5

Total number of potentials 4

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 83mm/ 3.268inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Fire load 0.211 MJ

Weight 12.064g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin DE

GTIN 4045454193782

Customs Tariff No. 85369010000

270-570/281-507

01.05.2019Page /2 8

Data sheet | Item number:270-570/281-507

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6828

CCA

DEKRA Certification B.V.

EN 60947 2143311.03

CSA

DEKRA Certification B.V.

C22.2 1565649

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Marking accessories

Item no.: 2009-115

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

Item no.: 2009-115/000-002

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-002

Item no.: 2009-115/000-006

WMB-Inline; for smartPRINTER; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-006

Item no.: 2009-115/000-007

WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type

2009-115

/000-007
