Wago 270-570 Data Sheet

Data sheet | Item number:270-570

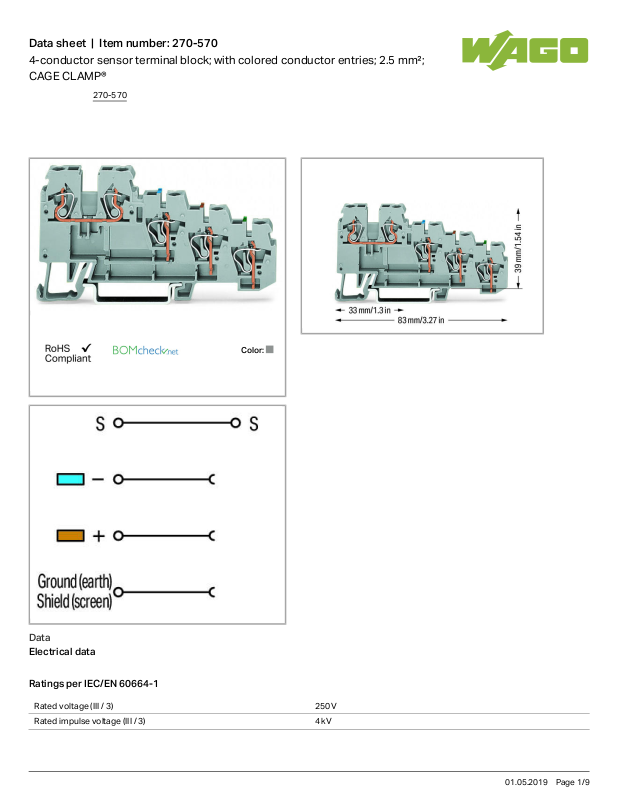

4-conductor sensor terminal block; with colored conductor entries; 2.5 mm²;
CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 250 V

Rated impulse voltage (III / 3) 4 kV

270-570

01.05.2019Page /1 9

Data sheet | Item number:270-570

Rated current 18 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 5

Total number of potentials 4

Number of levels 4

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 83mm/ 3.268inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Fire load 0.201 MJ

Weight 10.484g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821035305

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

270-570

01.05.2019Page /2 9

Data sheet | Item number:270-570

Logo Approval Additional Approval Text name

CCA

DEKRA Certification B.V.

EN 60947 2143311.03

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6828

CSA

DEKRA Certification B.V.

C22.2 1565649

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172
