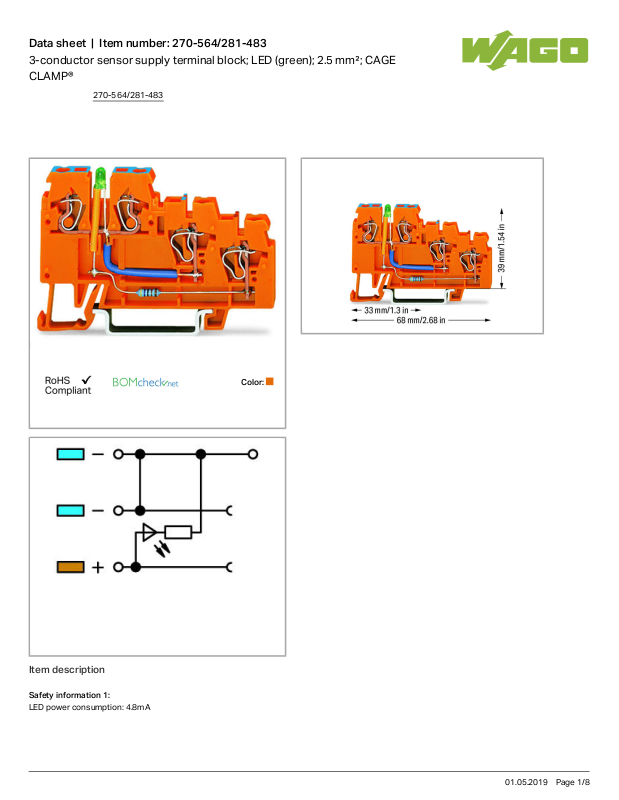

Wago 270-564/281-483 Data Sheet

Data sheet | Item number:270-564/281-483

3-conductor sensor supply terminal block; LED (green); 2.5 mm²; CAGE
CLAMP®

Color:

Item description

Safety information 1:

LED power consumption: 4.8mA

270-564/281-483

01.05.2019Page /1 8

Data sheet | Item number:270-564/281-483

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 4

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 68mm/ 2.677inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color orange

Fire load 0.179 MJ

Weight 9.68g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4045454365646

Customs Tariff No. 85369010000

270-564/281-483

01.05.2019Page /2 8

Data sheet | Item number:270-564/281-483

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6828

CCA

DEKRA Certification B.V.

EN 60947 2143311.03

CSA

DEKRA Certification B.V.

C22.2 1565649

Compatible products

Insulation stop

Item no.: 280-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

280-470

Item no.: 280-471

Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip

280-471

Item no.: 280-472

Insulation stop; 0.75 - 1 mm²; 5 pieces/strip

280-472

End plate

Item no.: 270-319

End and intermediate plate; 1 mm thick; for triple-deck terminal blocks

270-319

Item no.: 270-321

End and intermediate plate; 1 mm thick; for triple-deck terminal blocks

270-321

Jumper

Item no.: 270-409

Jumper; unplated; 9-way; Nominal current 18 A

270-409

Item no.: 270-417

Jumper; unplated; 17-way; Nominal current 18 A

270-417

Item no.: 270-480

Jumper; unplated; 80-way; Nominal current 18 A

270-480
