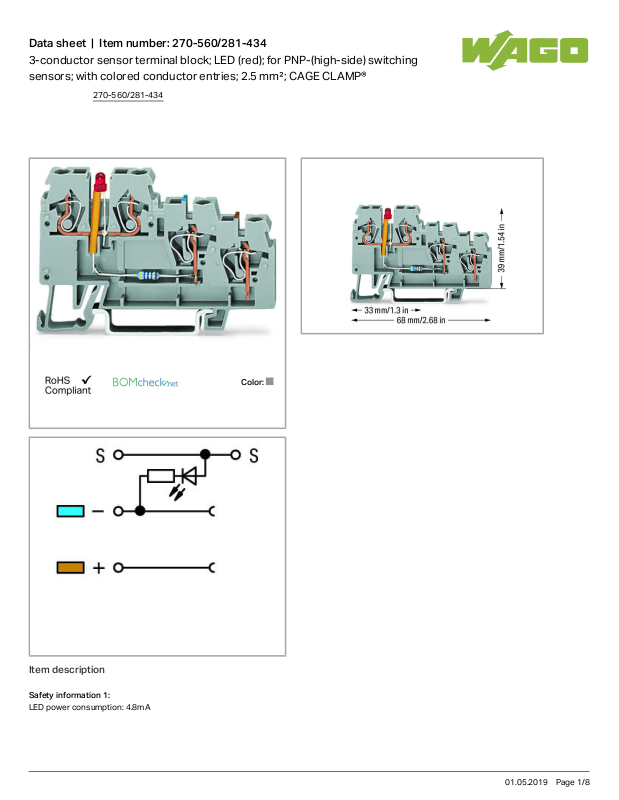

Wago 270-560/281-434 Data Sheet

Data sheet | Item number:270-560/281-434

3-conductor sensor terminal block; LED (red); for PNP-(high-side) switching
sensors; with colored conductor entries; 2.5 mm²; CAGE CLAMP®

Color:

Item description

Safety information 1:

LED power consumption: 4.8mA

270-560/281-434

01.05.2019Page /1 8

Data sheet | Item number:270-560/281-434

Data

Electrical data

Voltage type (1) DC

Nominal voltage 24 V

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 6 … 7mm/ 0.24 … 0.28inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 4

Total number of potentials 3

Number of levels 3

Type of wiring Front-entry wiring

Geometrical Data

Width 5mm/ 0.197inch

Height from upper-edge of DIN-35 rail 39mm/ 1.535inch

Depth 68mm/ 2.677inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Side marking

Material Data

Color gray

Fire load 0.178 MJ

Weight 10.065g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

Country of origin CN

GTIN 4050821286493

Customs Tariff No. 85369010000

270-560/281-434

01.05.2019Page /2 8

Data sheet | Item number:270-560/281-434

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

6828

CCA

DEKRA Certification B.V.

EN 60947 2143311.03

CSA

DEKRA Certification B.V.

C22.2 1565649

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 270-319

End and intermediate plate; 1 mm thick; for triple-deck terminal blocks

270-319

Item no.: 270-321

End and intermediate plate; 1 mm thick; for triple-deck terminal blocks

270-321

tools

Item no.: 210-657

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720

Insulation stop

Item no.: 280-470

Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip

280-470

270-560/281-434

01.05.2019Page /3 8
