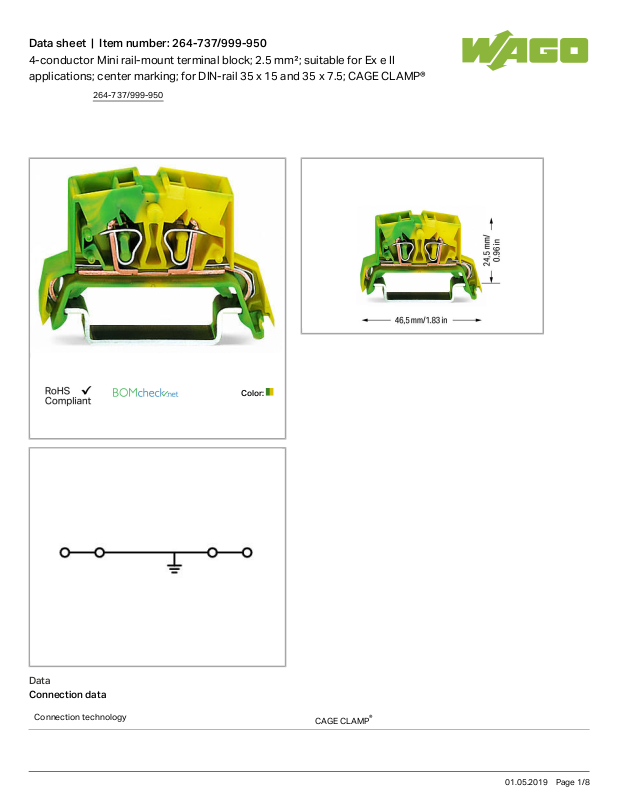

Wago 264-737/999-950 Data Sheet

Data sheet | Item number:264-737/999-950
4-conductor Mini rail-mount terminal block; 2.5 mm²; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®
Color:

Data

Connection data

Connection technology
CAGE CLAMP
®
264-737/999-950
01.05.2019Page /1 8
Data sheet | Item number:264-737/999-950
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 2.5mm²/ 20 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 10mm/ 0.394inch
Height from upper-edge of DIN-35 rail 24.5mm/ 0.965inch
Depth 46.5mm/ 1.831inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color green-yellow
Fire load 0.118 MJ
Weight 8.86g

Commercial data

Country of origin DE
GTIN 4044918452427
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX
264-737/999-950
01.05.2019Page /2 8
Data sheet | Item number:264-737/999-950
3129 U (II 2 G/D EEx e II)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
04.0003U (Ex e IIC Gb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7077
ENEC
DEKRA Certification B.V.
EN 60947 2160584.02
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172,
sec. 6
UR
Underwriters Laboratories Inc.
UL 1059 E45172,
sec. 6

Compatible products

264-737/999-950
01.05.2019Page /3 8
