Wago 264-716 Data Sheet

Data sheet | Item number:264-716

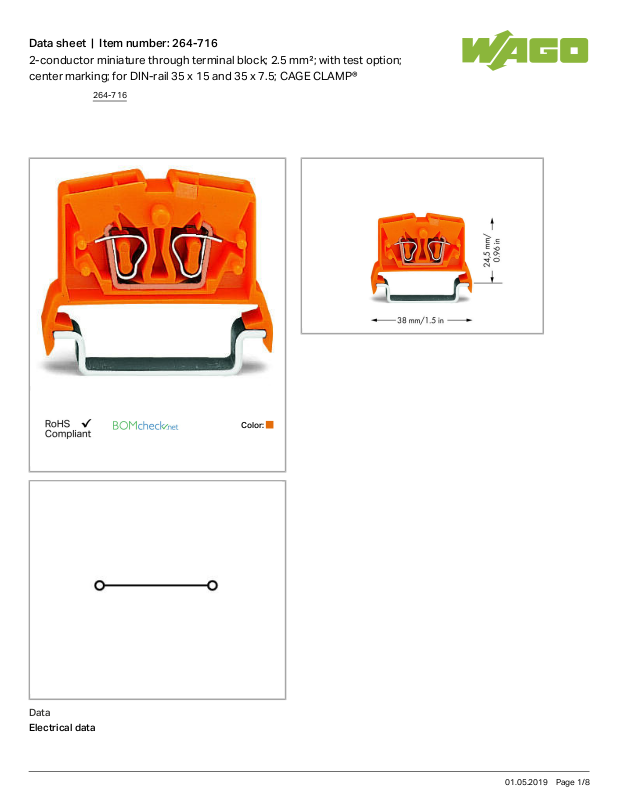

2-conductor miniature through terminal block; 2.5 mm²; with test option;
center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®

Color:

Data

Electrical data

264-716

01.05.2019Page /1 8

Data sheet | Item number:264-716

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 6mm/ 0.236inch

Height from upper-edge of DIN-35 rail 24.5mm/ 0.965inch

Depth 38mm/ 1.496inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color orange

Fire load 0.075 MJ

Weight 3.876g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin CH

GTIN 4044918415460

Customs Tariff No. 85369010000
