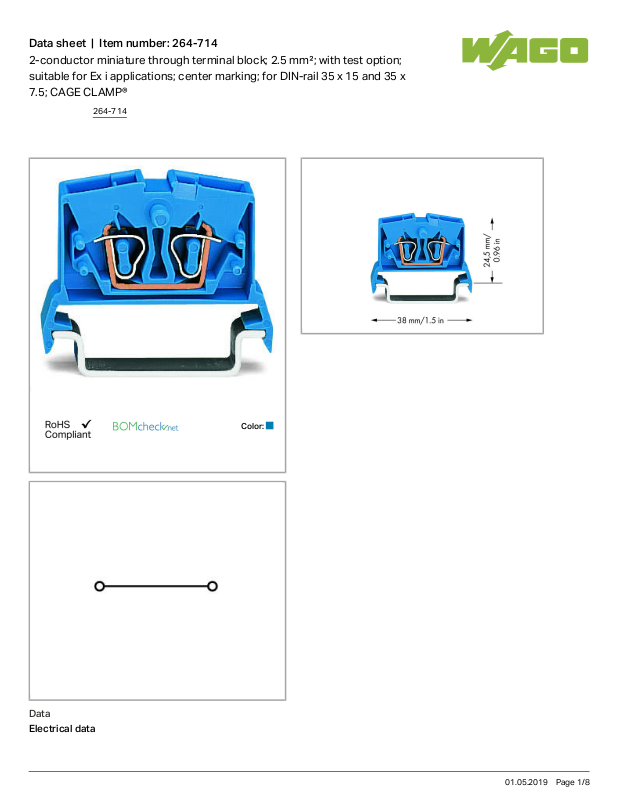

Wago 264-714 Data Sheet

Data sheet | Item number:264-714
2-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x
7.5; CAGE CLAMP®

Data

Electrical data

264-714
01.05.2019Page /1 8
Data sheet | Item number:264-714
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG
Strip length 8 … 9mm/ 0.31 … 0.35inch
Note (conductor cross-section) 12 AWG: THHN, THWN
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring

Geometrical Data

Width 6mm/ 0.236inch
Height from upper-edge of DIN-35 rail 24.5mm/ 0.965inch
Depth 38mm/ 1.496inch

Mechanical data

Design horizontal
Type of mounting DIN-35 rail
Marking level Center marking

Material Data

Color blue
Fire load 0.076 MJ
Weight 3.902g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CH
GTIN 4044918415446
Customs Tariff No. 85369010000
264-714
01.05.2019Page /2 8
Data sheet | Item number:264-714
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL-
7077
CSA
DEKRA Certification B.V.
C22.2 70010891
ENEC
DEKRA Certification B.V.
EN 60947 2160584.02
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172,
sec. 6

Compatible products

264-714
01.05.2019Page /3 8
