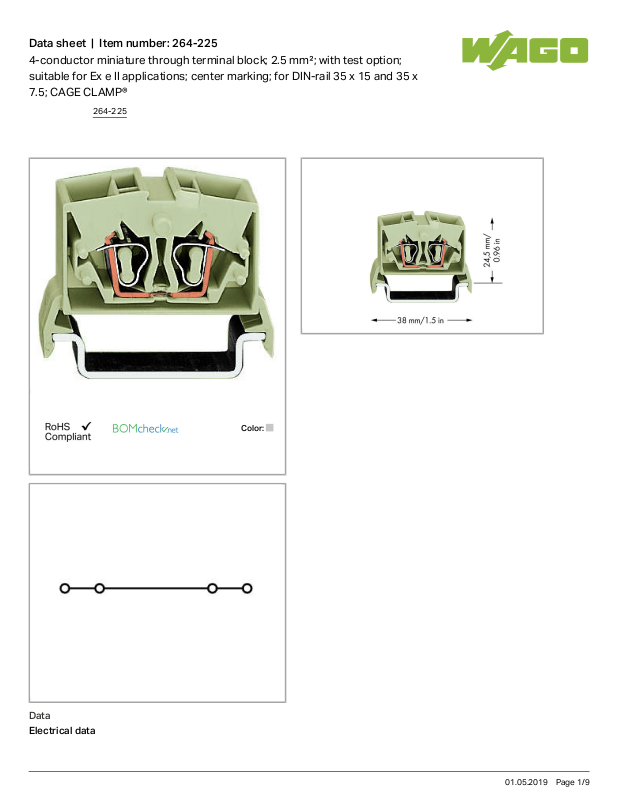

Wago 264-225 Data Sheet

Data sheet | Item number:264-225

4-conductor miniature through terminal block; 2.5 mm²; with test option;
suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x

7.5; CAGE CLAMP®

Color:

Data

Electrical data

264-225

01.05.2019Page /1 9

Data sheet | Item number:264-225

Rated voltage EN (Ex e II) 690 V

Ratings per IEC/EN 60664-1

Rated current 23 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.5 … 2.5mm²/ 20 … 12AWG

Fine-stranded conductor 0.08 … 2.5mm²/ 28 … 12AWG

Strip length 8 … 9mm/ 0.31 … 0.35inch

Note (conductor cross-section) 12 AWG: THHN, THWN

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 24.5mm/ 0.965inch

Depth 38mm/ 1.496inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center marking

Material Data

Color light gray

Fire load 0.107 MJ

Weight 6.193g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin CH

GTIN 4044918414494

Customs Tariff No. 85369010000

264-225

01.05.2019Page /2 9

Data sheet | Item number:264-225

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3129 U (II
2 G/D EEx
e II)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

04.0003U
(Ex e IIC
Gb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL-

7077

CSA

DEKRA Certification B.V.

C22.2 70010891

ENEC

DEKRA Certification B.V.

EN 60947 2160584.02

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1241539­PDA

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

IEC 60998 91/20242

(E7)
