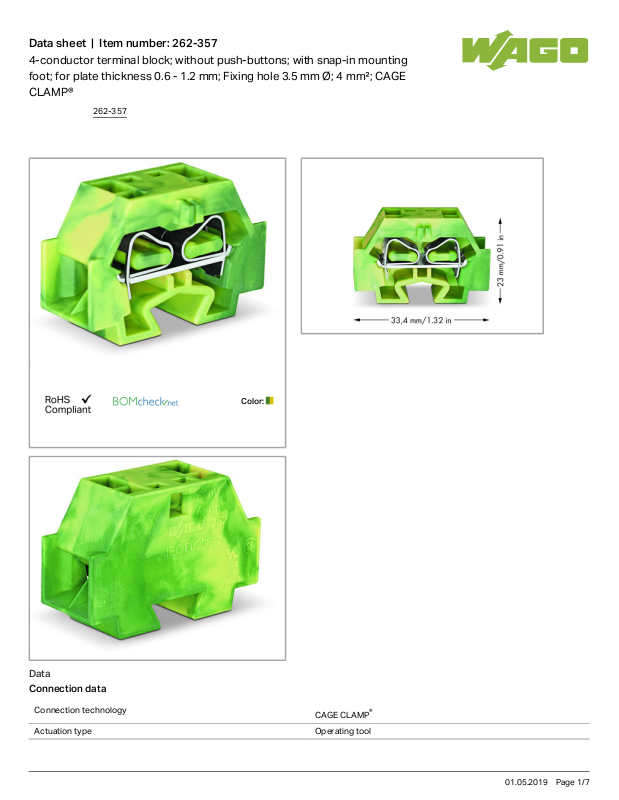

Wago 262-357 Data Sheet

Data sheet | Item number:262-357
4-conductor terminal block; without push-buttons; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Data

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
262-357
01.05.2019Page /1 7
Data sheet | Item number:262-357
Connectable conductor materials Copper
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring

Geometrical Data

Width 12mm/ 0.472inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch

Mechanical data

Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking

Material Data

Color green-yellow
Fire load 0.111 MJ
Weight 6.865g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CN
GTIN 4044918641197
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60998 2110272.03
CCA
DEKRA Certification B.V.
EN 60998 NTR-NL
6510
262-357
01.05.2019Page /2 7
Data sheet | Item number:262-357
CSA
DEKRA Certification B.V.
C22.2 70010891
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

assembling
Item no.: 209-137
Mounting adapter; can be used as end plate; 6.5 mm wide
209-137
ferrule
262-357
01.05.2019Page /3 7
