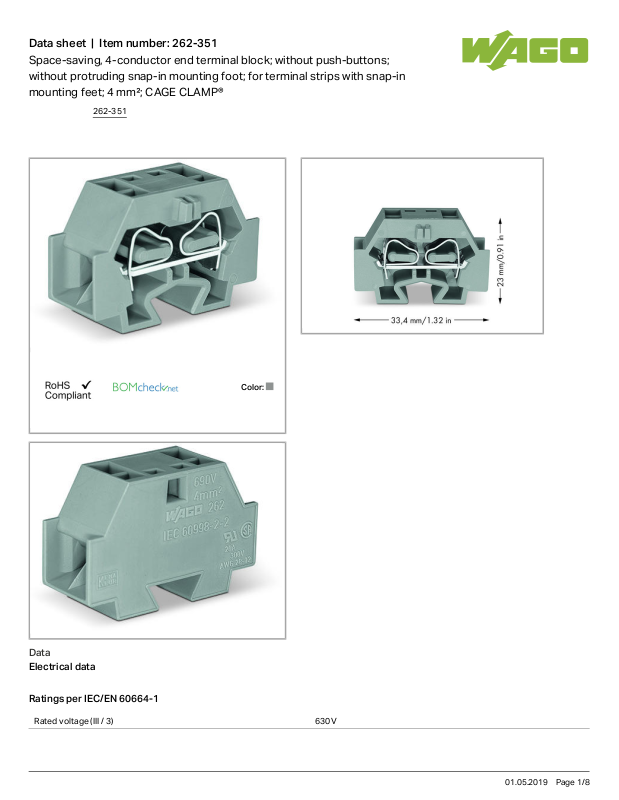

Wago 262-351 Data Sheet
Data sheet | Item number:262-351
Space-saving, 4-conductor end terminal block; without push-buttons;
without protruding snap-in mounting foot; for terminal strips with snap-in
mounting feet; 4 mm²; CAGE CLAMP®
Color:
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 630 V
262-351
01.05.2019Page /1 8
Data sheet | Item number:262-351
Rated impulse voltage (III / 3) 8 kV
Rated current 32 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring
Geometrical Data
Width 12mm/ 0.472inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Mechanical data
Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking
Material Data
Color gray
Fire load 0.098 MJ
Weight 6.866g
Commercial data
Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CN
GTIN 4044918641234
Customs Tariff No. 85369010000
Approvals / Certificates
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
262-351
01.05.2019Page /2 8
Data sheet | Item number:262-351
Logo Approval Additional Approval Text name
CCA
DEKRA Certification B.V.
EN 60998 NTR-NL
6510
CCA
DEKRA Certification B.V.
EN 60998 2110272.03
CSA
DEKRA Certification B.V.
C22.2 70010891
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 14HG1241539PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
262-351
