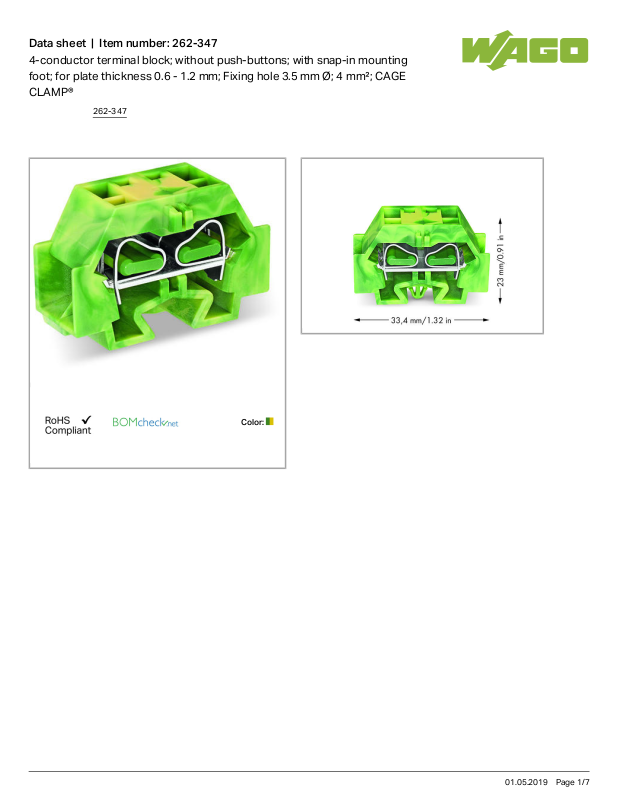

Data sheet | Item number:262-347
4-conductor terminal block; without push-buttons; with snap-in mounting
foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE
CLAMP®
262-347
01.05.2019Page /1 7
Data sheet | Item number:262-347
Data
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring
Geometrical Data
Width 12mm/ 0.472inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Mechanical data
Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking
262-347
01.05.2019Page /2 7
Data sheet | Item number:262-347
Material Data
Color green-yellow
Fire load 0.113 MJ
Weight 6.841g
Commercial data
Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CN
GTIN 4044918638975
Customs Tariff No. 85369010000
Compatible products
End plate
Item no.: 262-371
End plate; with snap-in mounting foot
262-371
General accessories
Item no.: 209-122
Plastic end stop; for WSB markers; for 210-154 aluminum rail
209-122
Item no.: 209-123
Mounting foot with screw; can be screwed on terminal blocks with fixing flange; 6.4 mm wide
209-123
Carrier rail
Item no.: 210-154
Aluminum carrier rail; 1000 mm long; 18 mm wide; 7 mm high
210-154
tools
Item no.: 209-132
Operating tool; for connecting comb-style jumper bar; 2-way; of insulating material
209-132
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
ferrule
