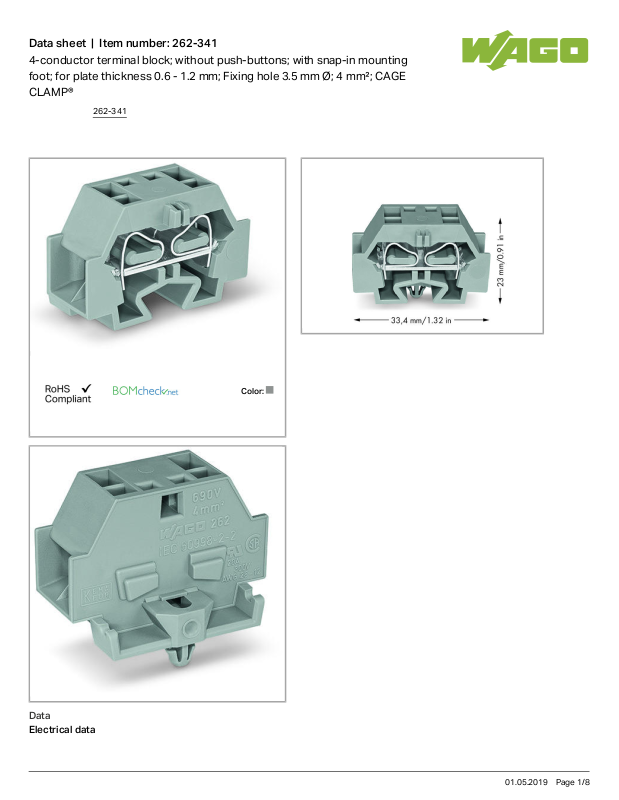

Wago 262-341 Data Sheet

Data sheet | Item number:262-341

4-conductor terminal block; without push-buttons; with snap-in mounting
foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE
CLAMP®

Color:

Data

Electrical data

262-341

01.05.2019Page /1 8

Data sheet | Item number:262-341

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color gray

Fire load 0.113 MJ

Weight 6.854g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin CN

GTIN 4044918638890

Customs Tariff No. 85369010000

262-341

01.05.2019Page /2 8

Data sheet | Item number:262-341

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60998 2110272.03

CCA

DEKRA Certification B.V.

EN 60998 NTR-NL

6510

CSA

DEKRA Certification B.V.

C22.2 70010891

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1241539­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

262-341

01.05.2019Page /3 8
