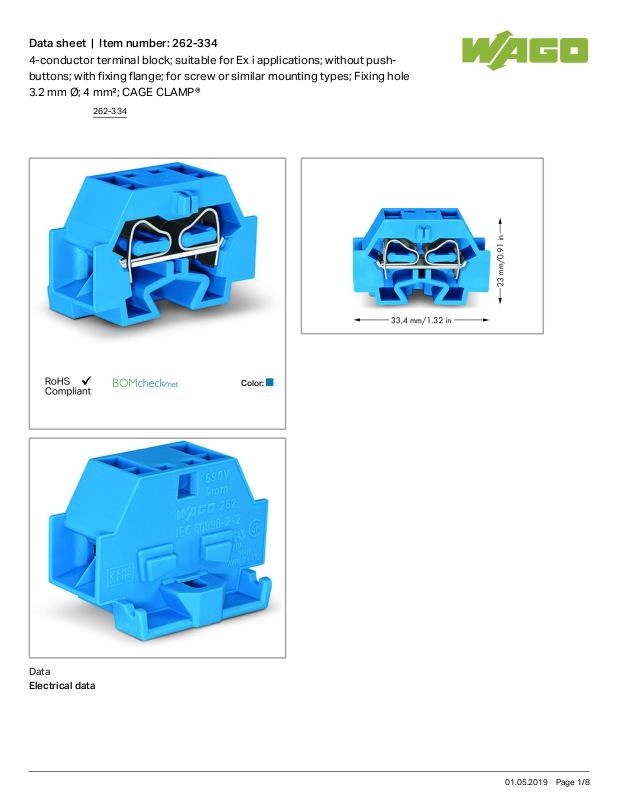

Wago 262-334 Data Sheet

Data sheet | Item number:262-334

4-conductor terminal block; suitable for Ex i applications; without push­buttons; with fixing flange; for screw or similar mounting types; Fixing hole

3.2 mm Ø; 4 mm²; CAGE CLAMP®

Color:

Data

Electrical data

262-334

01.05.2019Page /1 8

Data sheet | Item number:262-334

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Total number of connection points 4

Total number of potentials 1

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 12mm/ 0.472inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color blue

Fire load 0.111 MJ

Weight 6.773g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin CN

GTIN 4044918638821

Customs Tariff No. 85369010000
