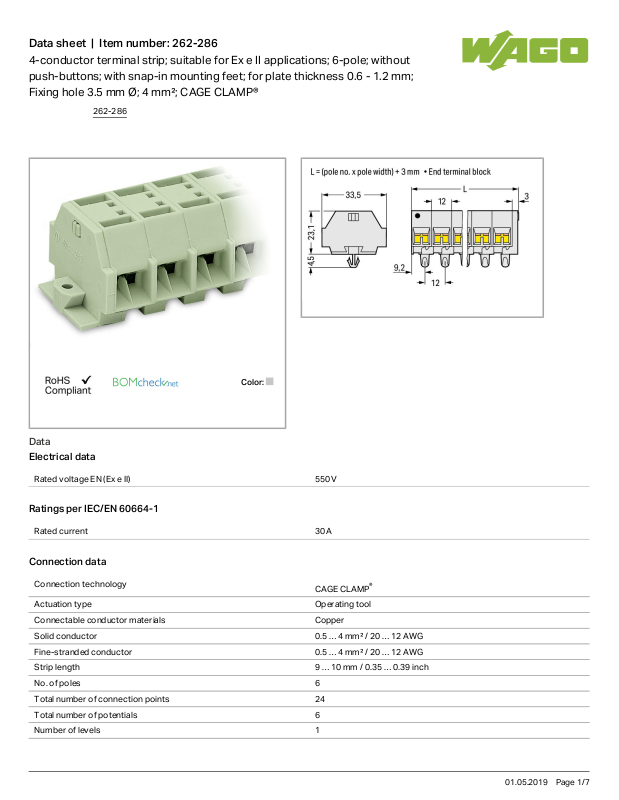

Wago 262-286 Data Sheet

Data sheet | Item number:262-286

4-conductor terminal strip; suitable for Ex e II applications; 6-pole; without
push-buttons; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm;
Fixing hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 30 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.5 … 4mm²/ 20 … 12AWG

Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 6

Total number of connection points 24

Total number of potentials 6

Number of levels 1

262-286

01.05.2019Page /1 7

Data sheet | Item number:262-286

Type of wiring Side-entry wiring

Geometrical Data

Width 76.4mm/ 3.008inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 12mm/ 0.472inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color light gray

Fire load 0.719 MJ

Weight 43.862g

Commercial data

Country of origin DE

GTIN 4044918639200

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec 6

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3125 U (II
2 G EEx e
II)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 70010891

262-286

01.05.2019Page /2 7

Data sheet | Item number:262-286

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172
