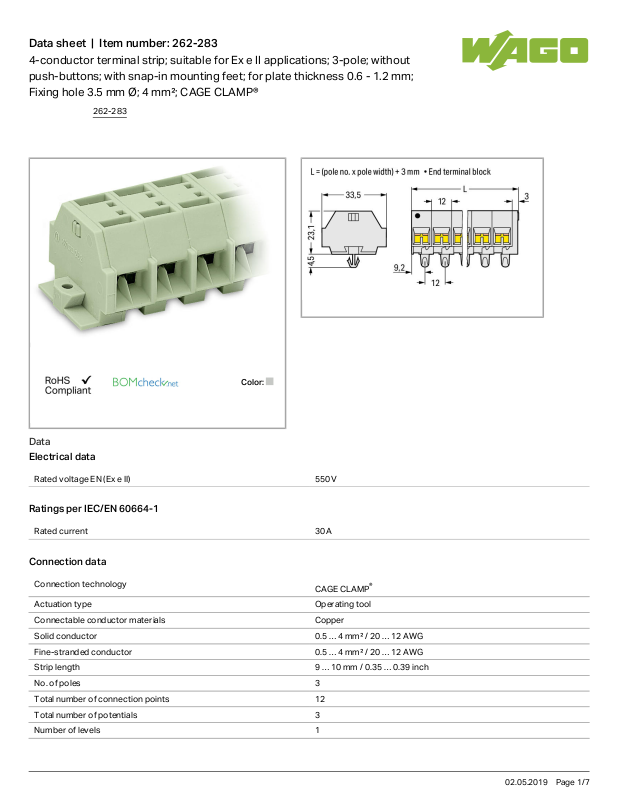

Wago 262-283 Data Sheet

Data sheet | Item number:262-283
4-conductor terminal strip; suitable for Ex e II applications; 3-pole; without push-buttons; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 30 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 3
Total number of connection points 12
Total number of potentials 3
Number of levels 1
262-283
02.05.2019Page /1 7
Data sheet | Item number:262-283
Type of wiring Side-entry wiring

Geometrical Data

Width 40.4mm/ 1.591inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 12mm/ 0.472inch

Mechanical data

Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking

Material Data

Color light gray
Fire load 0.383 MJ
Weight 21.86g

Commercial data

Country of origin DE
GTIN 4044918639170
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
sec 6
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX 3125 U (II 2 G EEx e II)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 70010891
262-283
02.05.2019Page /2 7
Data sheet | Item number:262-283
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

Carrier rail
Item no.: 210-154
Aluminum carrier rail; 1000 mm long; 18 mm wide; 7 mm high
210-154
Jumper
Item no.: 262-402
Comb-style jumper bar; insulated; 2-way; reduces conductor size to 2.5 mm
262-402
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-108
Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated
216-108
Item no.: 216-109
Ferrule; Sleeve for 10 mm² / AWG 8; uninsulated; electro-tin plated
216-109
Item no.: 216-110
Ferrule; Sleeve for 16 mm² / AWG 6; uninsulated; electro-tin plated
216-110
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
262-283
02.05.2019Page /3 7
