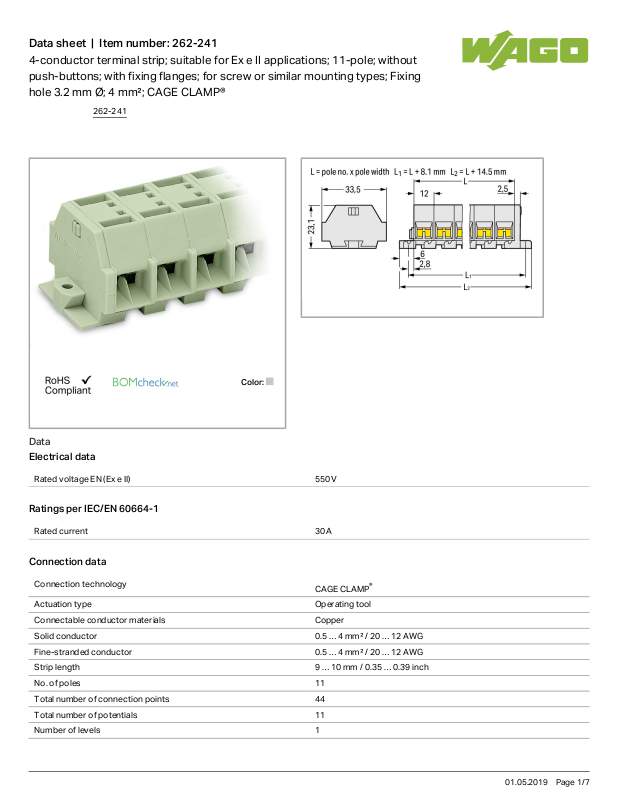

Data sheet | Item number:262-241
4-conductor terminal strip; suitable for Ex e II applications; 11-pole; without
push-buttons; with fixing flanges; for screw or similar mounting types; Fixing
hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Ratings per IEC/EN 60664-1
Rated current 30 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 11
Total number of connection points 44
Total number of potentials 11
Number of levels 1
262-241
01.05.2019Page /1 7
Data sheet | Item number:262-241
Type of wiring Side-entry wiring
Geometrical Data
Width 146.5mm/ 5.768inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 12mm/ 0.472inch
Mechanical data
Design horizontal
Mounting type Mounting flange
Marking level Side marking
Material Data
Color light gray
Fire load 1.277 MJ
Weight 80.056g
Commercial data
Country of origin DE
GTIN 4044918639118
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec 6
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX
3125 U (II
2 G EEx e
II)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 70010891
262-241
01.05.2019Page /2 7
Data sheet | Item number:262-241
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

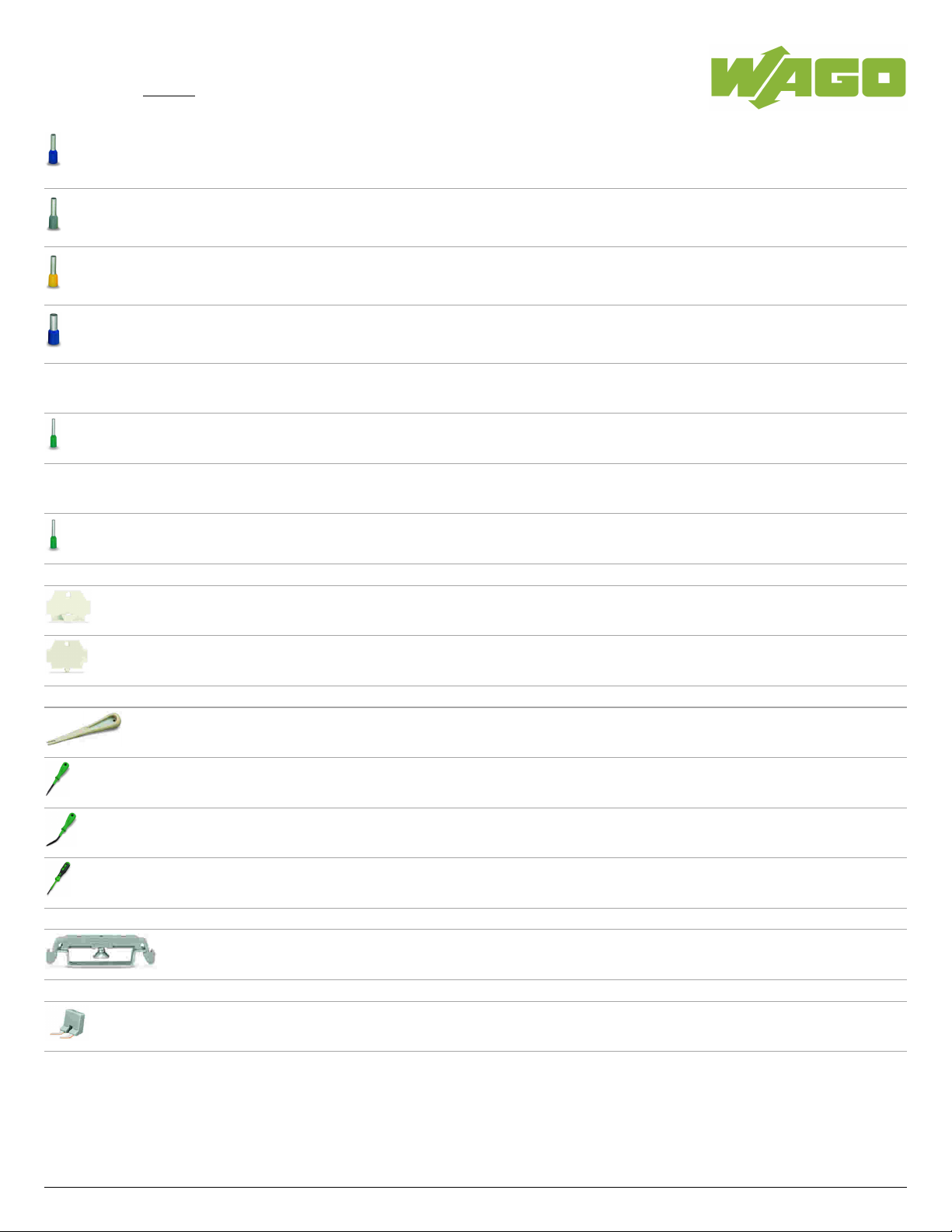

Compatible products
assembling
Item no.: 209-137
Mounting adapter; can be used as end plate; 6.5 mm wide
209-137
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-108
Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated
216-108
Item no.: 216-109
Ferrule; Sleeve for 10 mm² / AWG 8; uninsulated; electro-tin plated
216-109
262-241
01.05.2019Page /3 7
