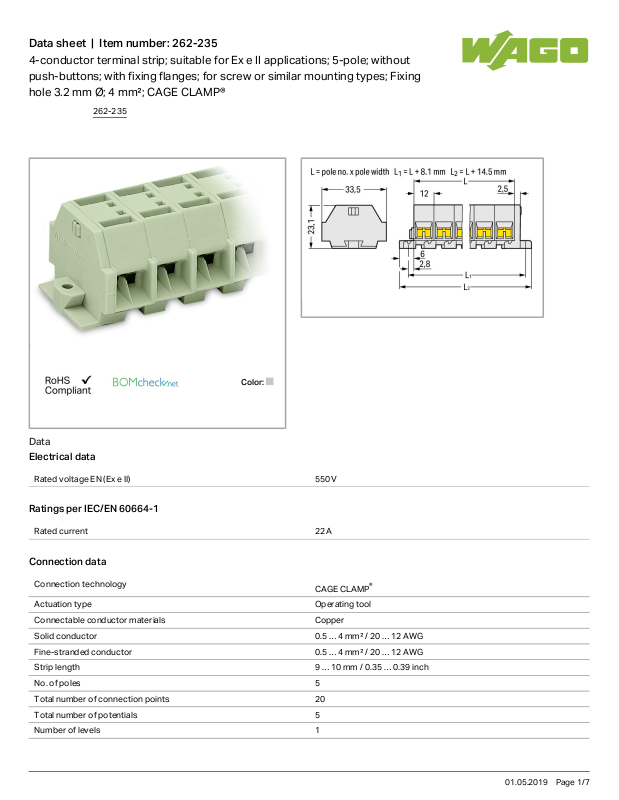

Wago 262-235 Data Sheet

Data sheet | Item number:262-235

4-conductor terminal strip; suitable for Ex e II applications; 5-pole; without
push-buttons; with fixing flanges; for screw or similar mounting types; Fixing
hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 22 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.5 … 4mm²/ 20 … 12AWG

Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 5

Total number of connection points 20

Total number of potentials 5

Number of levels 1

262-235

01.05.2019Page /1 7

Data sheet | Item number:262-235

Type of wiring Side-entry wiring

Geometrical Data

Width 74.5mm/ 2.933inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 12mm/ 0.472inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color light gray

Fire load 0.611 MJ

Weight 37.402g

Commercial data

Country of origin DE

GTIN 4044918639057

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec 6

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3125 U (II
2 G EEx e
II)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 70010891

262-235

01.05.2019Page /2 7

Data sheet | Item number:262-235

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

End plate

Item no.: 262-363

End plate; with fixing flange

262-363

Item no.: 262-373

End plate; with snap-in mounting foot

262-373

assembling

Item no.: 209-137

Mounting adapter; can be used as end plate; 6.5 mm wide

209-137

tools

Item no.: 209-132

Operating tool; for connecting comb-style jumper bar; 2-way; of insulating material

209-132

Item no.: 210-657

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-658

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658

Item no.: 210-720

Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm

210-720
