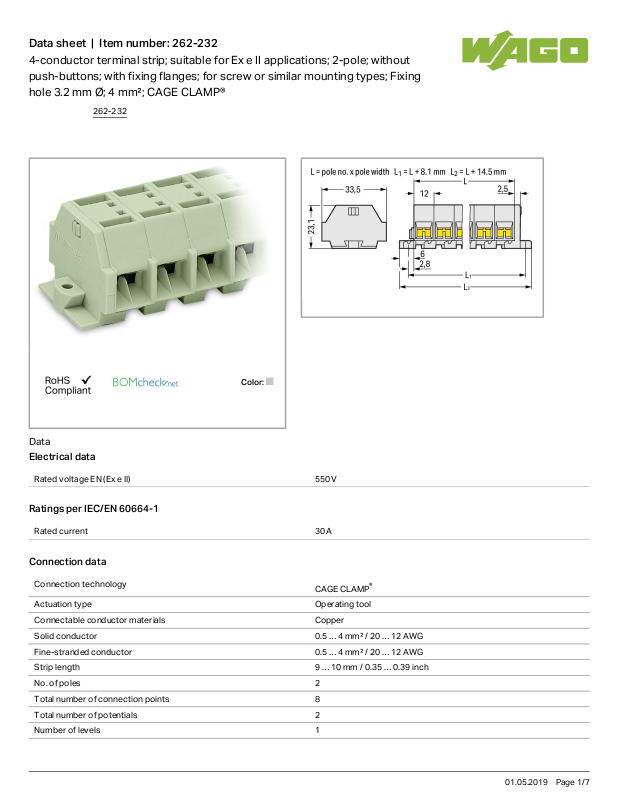

Wago 262-232 Data Sheet

Data sheet | Item number:262-232

4-conductor terminal strip; suitable for Ex e II applications; 2-pole; without
push-buttons; with fixing flanges; for screw or similar mounting types; Fixing
hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®

Color:

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 30 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.5 … 4mm²/ 20 … 12AWG

Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 2

Total number of connection points 8

Total number of potentials 2

Number of levels 1

262-232

01.05.2019Page /1 7

Data sheet | Item number:262-232

Type of wiring Side-entry wiring

Geometrical Data

Width 38.5mm/ 1.516inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 12mm/ 0.472inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color light gray

Fire load 0.278 MJ

Weight 16.075g

Commercial data

Country of origin DE

GTIN 4044918639026

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec 6

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3125 U (II
2 G EEx e
II)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 70010891

262-232

01.05.2019Page /2 7

Data sheet | Item number:262-232

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104

Item no.: 216-108

Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated

216-108

Item no.: 216-109

Ferrule; Sleeve for 10 mm² / AWG 8; uninsulated; electro-tin plated

216-109

Item no.: 216-110

Ferrule; Sleeve for 16 mm² / AWG 6; uninsulated; electro-tin plated

216-110

Item no.: 216-121

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-121

262-232

01.05.2019Page /3 7
