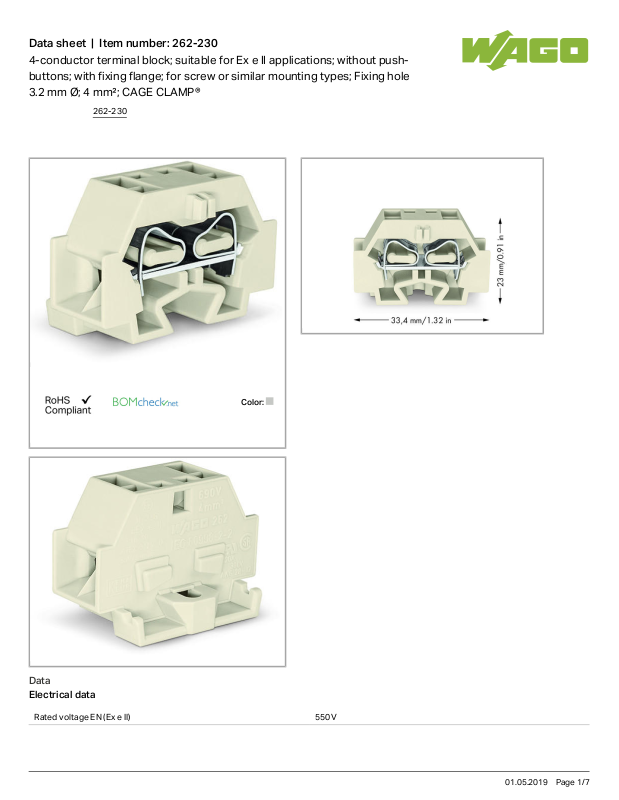

Wago 262-230 Data Sheet
Data sheet | Item number:262-230
4-conductor terminal block; suitable for Ex e II applications; without pushbuttons; with fixing flange; for screw or similar mounting types; Fixing hole
3.2 mm Ø; 4 mm²; CAGE CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
262-230
01.05.2019Page /1 7
Data sheet | Item number:262-230
Ratings per IEC/EN 60664-1
Rated current 30 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 4
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring
Geometrical Data
Width 12mm/ 0.472inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Mechanical data
Design horizontal
Mounting type Mounting flange
Marking level Side marking
Material Data
Color light gray
Fire load 0.111 MJ
Weight 7.113g
Commercial data
Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CH
GTIN 4044918639002
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Certificate
262-230
01.05.2019Page /2 7
Data sheet | Item number:262-230
Logo Approval Additional Approval Text name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec 6
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX
3125 U (II
2 G EEx e
II)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
04.0004U
(EX e IIC
Gb)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 70010891
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
General accessories
262-230
01.05.2019Page /3 7
