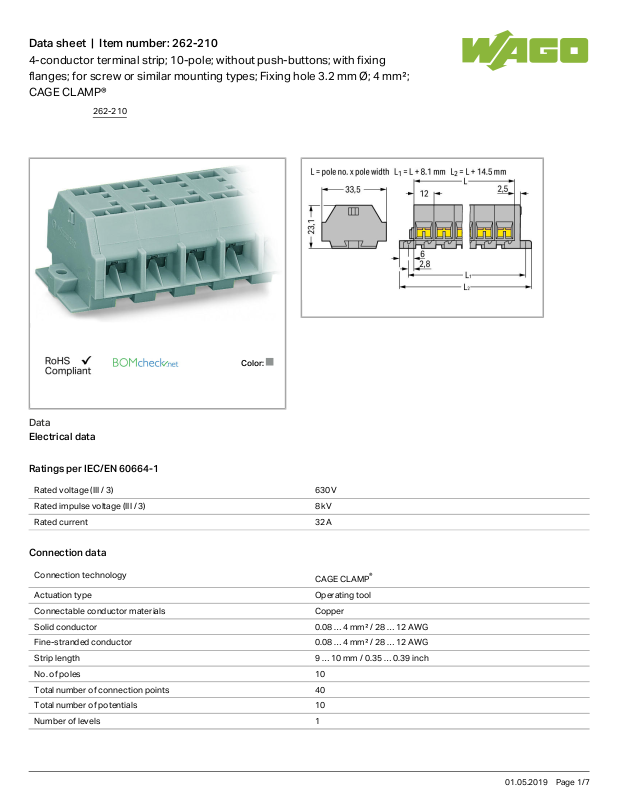

Wago 262-210 Data Sheet

Data sheet | Item number:262-210

4-conductor terminal strip; 10-pole; without push-buttons; with fixing
flanges; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 4 mm²;
CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 10

Total number of connection points 40

Total number of potentials 10

Number of levels 1

262-210

01.05.2019Page /1 7

Data sheet | Item number:262-210

Type of wiring Side-entry wiring

Geometrical Data

Width 134.5mm/ 5.295inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 12mm/ 0.472inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color gray

Fire load 1.166 MJ

Weight 70.552g

Commercial data

Country of origin DE

GTIN 4044918639385

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60998 2110272.03

CCA

DEKRA Certification B.V.

EN 60998 NTR-NL

6510

CSA

DEKRA Certification B.V.

C22.2 70010891

Ship Approvals

Certificate

262-210

01.05.2019Page /2 7

Data sheet | Item number:262-210

Logo Approval Additional Approval Text name

ABS

American Bureau of Shipping

- 14­HG1241539­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Jumper

Item no.: 262-402

Comb-style jumper bar; insulated; 2-way; reduces conductor size to 2.5 mm

262-402

ferrule

Item no.: 216-101

Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated

216-101

Item no.: 216-102

Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated

216-102

Item no.: 216-103

Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated

216-103

Item no.: 216-104

Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated

216-104
