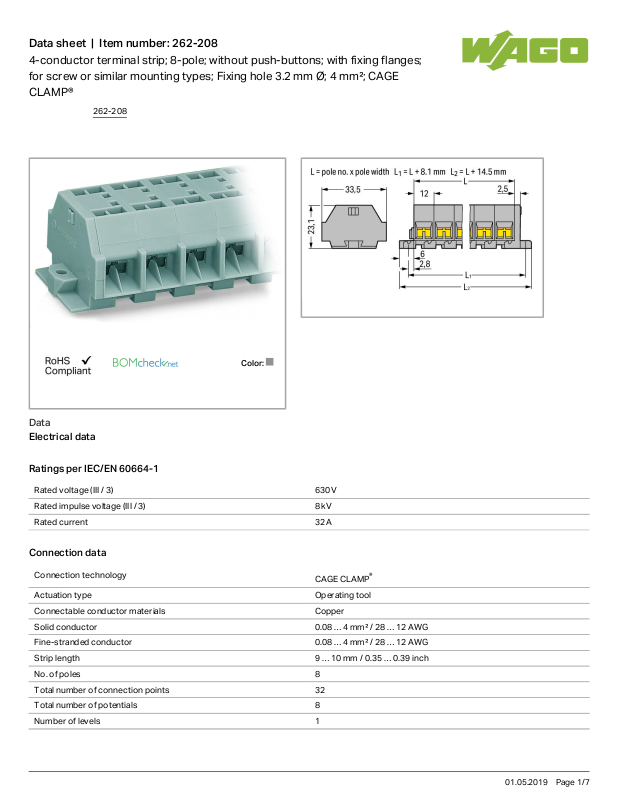

Wago 262-208 Data Sheet

Data sheet | Item number:262-208

4-conductor terminal strip; 8-pole; without push-buttons; with fixing flanges;
for screw or similar mounting types; Fixing hole 3.2 mm Ø; 4 mm²; CAGE
CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated current 32 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 8

Total number of connection points 32

Total number of potentials 8

Number of levels 1

262-208

01.05.2019Page /1 7

Data sheet | Item number:262-208

Type of wiring Side-entry wiring

Geometrical Data

Width 110.5mm/ 4.35inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 12mm/ 0.472inch

Mechanical data

Design horizontal

Mounting type Mounting flange

Marking level Side marking

Material Data

Color gray

Fire load 0.944 MJ

Weight 56.816g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin DE

GTIN 4044918639361

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60998 NTR-NL

6510

CCA

DEKRA Certification B.V.

EN 60998 2110272.03

CSA

DEKRA Certification B.V.

C22.2 70010891

Ship Approvals

262-208

01.05.2019Page /2 7

Data sheet | Item number:262-208

Logo

Approval Additional Approval Text

Certificate
name

ABS

American Bureau of Shipping

- 14­HG1241539­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

assembling

Item no.: 209-137

Mounting adapter; can be used as end plate; 6.5 mm wide

209-137

check

Item no.: 210-136

Test plug; 2 mm Ø; with 500 mm cable

210-136

Item no.: 210-137

Test plug; 2.3 mm Ø; with 500 mm cable

210-137

Item no.: 249-140

Test plug module; without locking device; modular; for 4-conductor terminal blocks

249-140

General accessories
