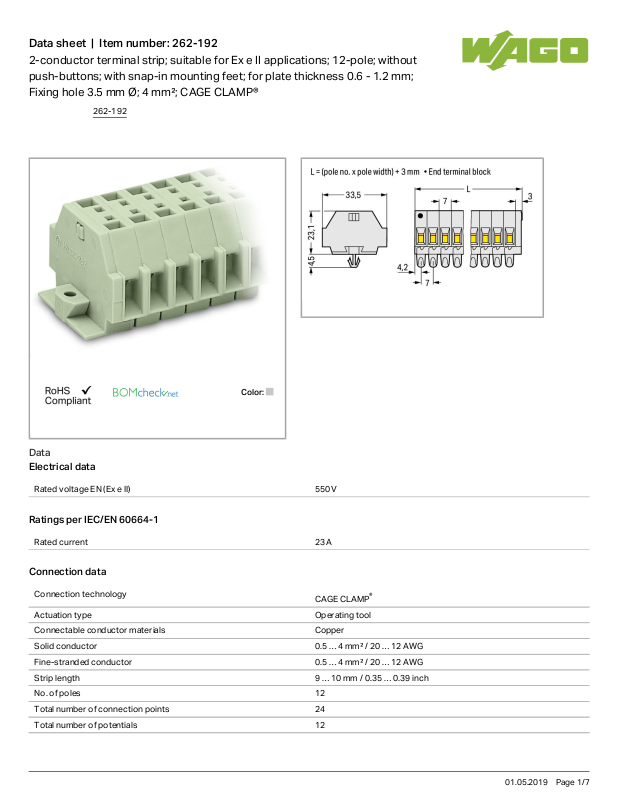

Wago 262-192 Data Sheet

Data sheet | Item number:262-192
2-conductor terminal strip; suitable for Ex e II applications; 12-pole; without push-buttons; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 23 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 12
Total number of connection points 24
Total number of potentials 12
262-192
01.05.2019Page /1 7
Data sheet | Item number:262-192
Number of levels 1
Type of wiring Side-entry wiring

Geometrical Data

Width 88.4mm/ 3.48inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 7mm/ 0.276inch

Mechanical data

Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking

Material Data

Color light gray
Fire load 0.994 MJ
Weight 51.672g

Commercial data

Country of origin DE
GTIN 4044918642118
Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
AEx
UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt
UL 60079 E185892
sec 6
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX 3125 U (II 2 G EEx e II)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 70010891
262-192
01.05.2019Page /2 7
Data sheet | Item number:262-192
DEKRA Certification B.V.
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

tools
Item no.: 209-132
Operating tool; for connecting comb-style jumper bar; 2-way; of insulating material
209-132
Item no.: 210-657
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short
210-657
Item no.: 210-658
Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled
210-658
Item no.: 210-720
Operating tool with partially insulated shaft; Type 2, blade (3.5 x 0.5) mm
210-720
assembling
Item no.: 209-120 Mounting foot; can be snapped on terminal blocks with snap-in mounting foot; for mounting on relay-modules; 6.4 mm wide
209-120
Item no.: 209-137 Mounting adapter; can be used as end plate; 6.5 mm wide
209-137
General accessories
Item no.: 209-122 Plastic end stop; for WSB markers; for 210-154 aluminum rail
209-122
Carrier rail
Item no.: 210-154 Aluminum carrier rail; 1000 mm long; 18 mm wide; 7 mm high
210-154
Jumper
Item no.: 262-402 Comb-style jumper bar; insulated; 2-way; reduces conductor size to 2.5 mm
262-402
262-192
01.05.2019Page /3 7
