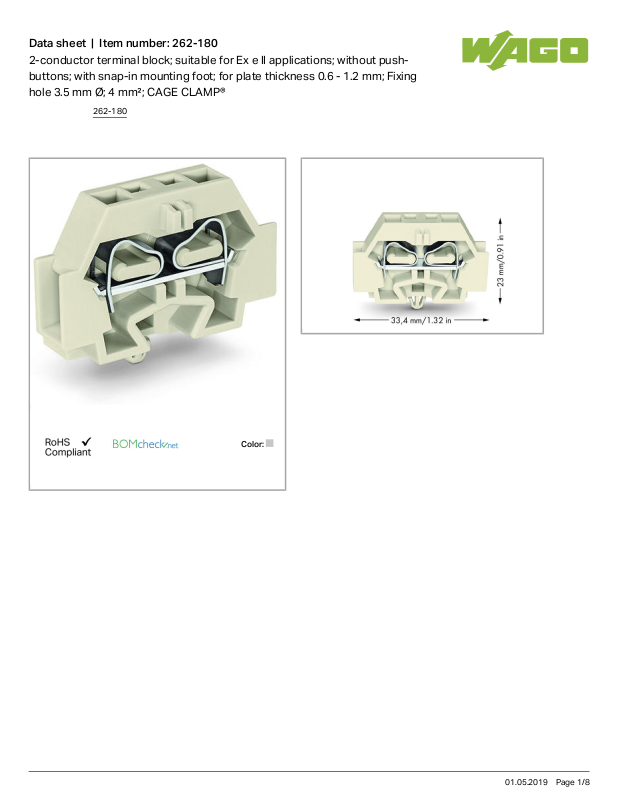

Wago 262-180 Data Sheet

Data sheet | Item number:262-180

2-conductor terminal block; suitable for Ex e II applications; without push­buttons; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing
hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Color:

262-180

01.05.2019Page /1 8

Data sheet | Item number:262-180

Data

Electrical data

Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 23 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.5 … 4mm²/ 20 … 12AWG

Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Type of wiring Side-entry wiring

Geometrical Data

Width 7mm/ 0.276inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

262-180

01.05.2019Page /2 8

Data sheet | Item number:262-180

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color light gray

Fire load 0.079 MJ

Weight 4.208g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)

Country of origin CH

GTIN 4044918640060

Customs Tariff No. 85369010000

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt

UL 60079 E185892

sec 6

ATEx

Physikalisch Technische Bundesanstalt (PTB)

EN 60079 PTB 98

ATEX
3125 U (II
2 G EEx e
II)

IECEx

Physikalisch Technische Bundesanstalt (PTB)

IEC 60079 IECEx PTB

04.0004U
(EX e IIC
Gb)

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 70010891

UL-Approvals

Certificate

262-180

01.05.2019Page /3 8
