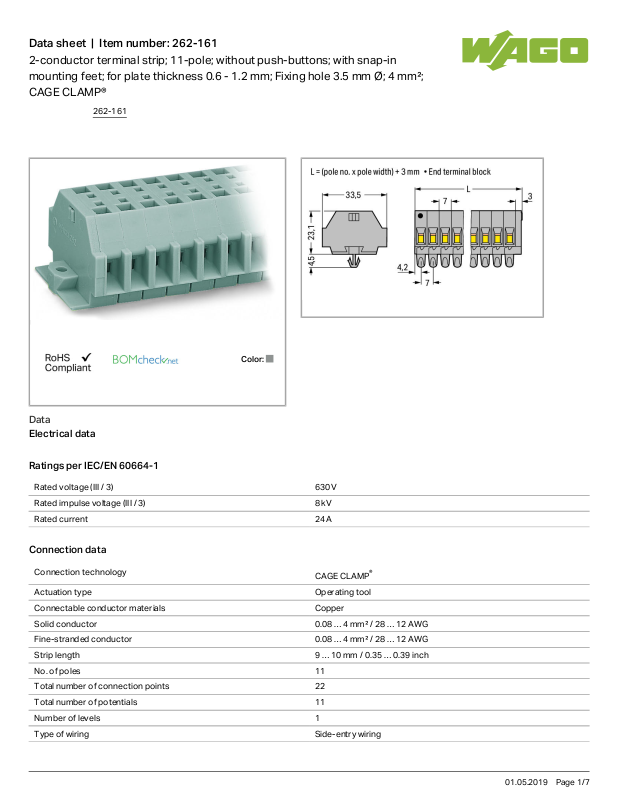

Wago 262-161 Data Sheet

Data sheet | Item number:262-161

2-conductor terminal strip; 11-pole; without push-buttons; with snap-in
mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²;
CAGE CLAMP®

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V

Rated impulse voltage (III / 3) 8 kV

Rated current 24 A

Connection data

Connection technology

CAGE CLAMP

®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 4mm²/ 28 … 12AWG

Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG

Strip length 9 … 10mm/ 0.35 … 0.39inch

No. of poles 11

Total number of connection points 22

Total number of potentials 11

Number of levels 1

Type of wiring Side-entry wiring

262-161

01.05.2019Page /1 7

Data sheet | Item number:262-161

Type of wiring Side-entry wiring

Geometrical Data

Width 81.4mm/ 3.205inch

Height from the surface 23mm/ 0.906inch

Depth 33.5mm/ 1.319inch

Module width 7mm/ 0.276inch

Mechanical data

Design horizontal

Mounting type Snap-in mounting foot

Marking level Side marking

Material Data

Color gray

Fire load 0.89 MJ

Weight 48.936g

Commercial data

Country of origin DE

GTIN 4044918642408

Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60998 NTR-NL

6510

CCA

DEKRA Certification B.V.

EN 60998 2110272.03

CSA

DEKRA Certification B.V.

C22.2 70010891

Ship Approvals

Logo Approval Additional Approval Text

Certificate
name

262-161

01.05.2019Page /2 7

Data sheet | Item number:262-161

ABS

American Bureau of Shipping

- 14­HG1241539­PDA

BV

Bureau Veritas S.A.

EN 60947 07436/E0 BV

DNV GL

Det Norske Veritas, Germanischer Lloyd

- TAE00001V2

LR

Lloyds Register

IEC 60998 91/20242

(E7)

UL-Approvals

Logo Approval Additional Approval Text

Certificate
name

UR

Underwriters Laboratories Inc.

UL 1059 E45172

Compatible products

Jumper

Item no.: 262-402

Comb-style jumper bar; insulated; 2-way; reduces conductor size to 2.5 mm

262-402

General accessories

Item no.: 209-122

Plastic end stop; for WSB markers; for 210-154 aluminum rail

209-122

tools

Item no.: 209-132

Operating tool; for connecting comb-style jumper bar; 2-way; of insulating material

209-132

Item no.: 210-657

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short

210-657

Item no.: 210-658

Operating tool with partially insulated shaft; Blade (3.5 x 0.5) mm; short; angled

210-658
