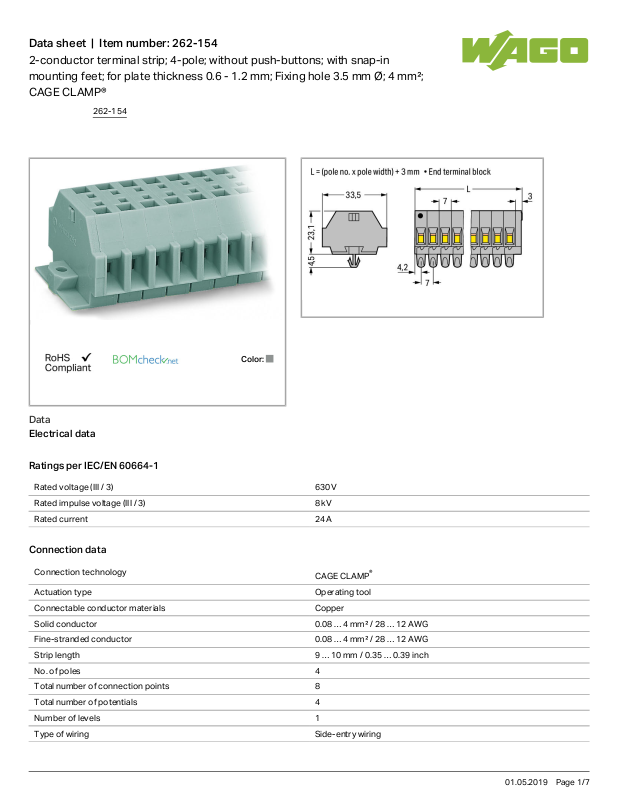

Wago 262-154 Data Sheet

Data sheet | Item number:262-154
2-conductor terminal strip; 4-pole; without push-buttons; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 4 mm²; CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 4
Total number of connection points 8
Total number of potentials 4
Number of levels 1
Type of wiring Side-entry wiring
262-154
01.05.2019Page /1 7
Data sheet | Item number:262-154
Type of wiring Side-entry wiring
Geometrical Data
Width 32.4mm/ 1.276inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 7mm/ 0.276inch

Mechanical data

Design horizontal
Mounting type Snap-in mounting foot
Marking level Side marking

Material Data

Color gray
Fire load 0.344 MJ
Weight 18.54g

Commercial data

Country of origin DE
GTIN 4044918642330
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60998 NTR-NL
6510
CCA
DEKRA Certification B.V.
EN 60998 2110272.03
CSA
DEKRA Certification B.V.
C22.2 70010891
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
262-154
01.05.2019Page /2 7
Data sheet | Item number:262-154
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

General accessories
Item no.: 209-122
Plastic end stop; for WSB markers; for 210-154 aluminum rail
209-122
check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Item no.: 249-137
Test plug module; without locking device; modular; for 2-conductor terminal blocks
249-137
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
262-154
01.05.2019Page /3 7
