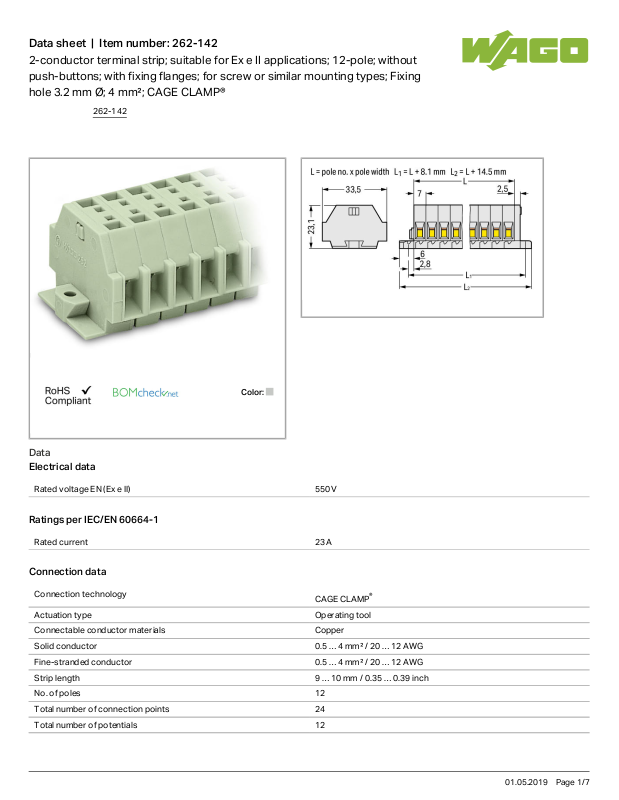

Wago 262-142 Data Sheet
Data sheet | Item number:262-142
2-conductor terminal strip; suitable for Ex e II applications; 12-pole; without
push-buttons; with fixing flanges; for screw or similar mounting types; Fixing
hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®
Color:
Data
Electrical data
Rated voltage EN (Ex e II) 550 V
Ratings per IEC/EN 60664-1
Rated current 23 A
Connection data
Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 12
Total number of connection points 24
Total number of potentials 12
262-142
01.05.2019Page /1 7
Data sheet | Item number:262-142
Number of levels 1
Type of wiring Side-entry wiring
Geometrical Data
Width 98.5mm/ 3.878inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 7mm/ 0.276inch
Mechanical data
Design horizontal
Mounting type Mounting flange
Marking level Side marking
Material Data
Color light gray
Fire load 0.98 MJ
Weight 53.805g
Commercial data
Country of origin DE
GTIN 4044918640015
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
UL International Germany GmbH c/o Physikalisch
Technische Bundesanstalt
UL 60079 E185892
sec 6
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX
3125 U (II
2 G EEx e
II)
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CSA
DEKRA Certification B.V.
C22.2 70010891
262-142
01.05.2019Page /2 7
Data sheet | Item number:262-142
DEKRA Certification B.V.
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UR
Underwriters Laboratories Inc.
UL 1059 E45172
Compatible products
assembling
Item no.: 209-137
Mounting adapter; can be used as end plate; 6.5 mm wide
209-137
General accessories
Item no.: 209-123
Mounting foot with screw; can be screwed on terminal blocks with fixing flange; 6.4 mm wide
209-123
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-108
Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated
216-108
