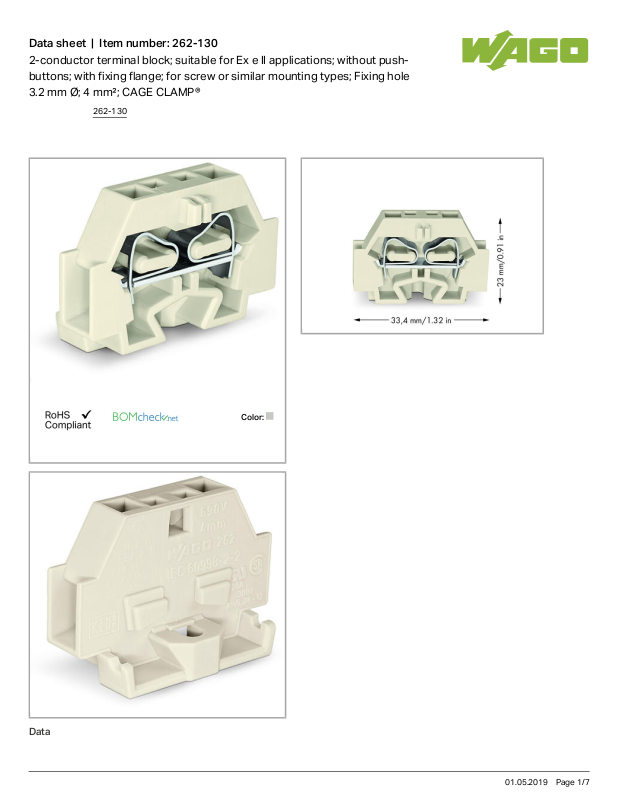

Wago 262-130 Data Sheet

Data sheet | Item number:262-130
2-conductor terminal block; suitable for Ex e II applications; without push­buttons; with fixing flange; for screw or similar mounting types; Fixing hole
3.2 mm Ø; 4 mm²; CAGE CLAMP®

Data

262-130
01.05.2019Page /1 7
Data sheet | Item number:262-130
Data
Electrical data
Rated voltage EN (Ex e II) 550 V

Ratings per IEC/EN 60664-1

Rated current 23 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4mm²/ 20 … 12AWG
Fine-stranded conductor 0.5 … 4mm²/ 20 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Side-entry wiring

Geometrical Data

Width 7mm/ 0.276inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch

Mechanical data

Design horizontal
Mounting type Mounting flange
Marking level Side marking

Material Data

Color light gray
Fire load 0.077 MJ
Weight 4.329g

Commercial data

Product Group 9 (Std. Chassis Mt. Blocks)
Country of origin CH
GTIN 4044918639903
Customs Tariff No. 85369010000
262-130
01.05.2019Page /2 7
Data sheet | Item number:262-130
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
ATEx
Physikalisch Technische Bundesanstalt (PTB)
EN 60079 PTB 98
ATEX 3125 U (II 2 G EEx e II)
IECEx
Physikalisch Technische Bundesanstalt (PTB)
IEC 60079 IECEx PTB
04.0004U (EX e IIC Gb)

Compatible products

General accessories
Item no.: 209-123
Mounting foot with screw; can be screwed on terminal blocks with fixing flange; 6.4 mm wide
209-123
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
216-103
Item no.: 216-104
Ferrule; Sleeve for 1.5 mm² / AWG 16; uninsulated; electro-tin plated
216-104
Item no.: 216-108
Ferrule; Sleeve for 6 mm² / AWG 10; uninsulated; electro-tin plated
216-108
Item no.: 216-109
Ferrule; Sleeve for 10 mm² / AWG 8; uninsulated; electro-tin plated
216-109
Item no.: 216-110
Ferrule; Sleeve for 16 mm² / AWG 6; uninsulated; electro-tin plated
216-110
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-121
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-122
262-130
01.05.2019Page /3 7
