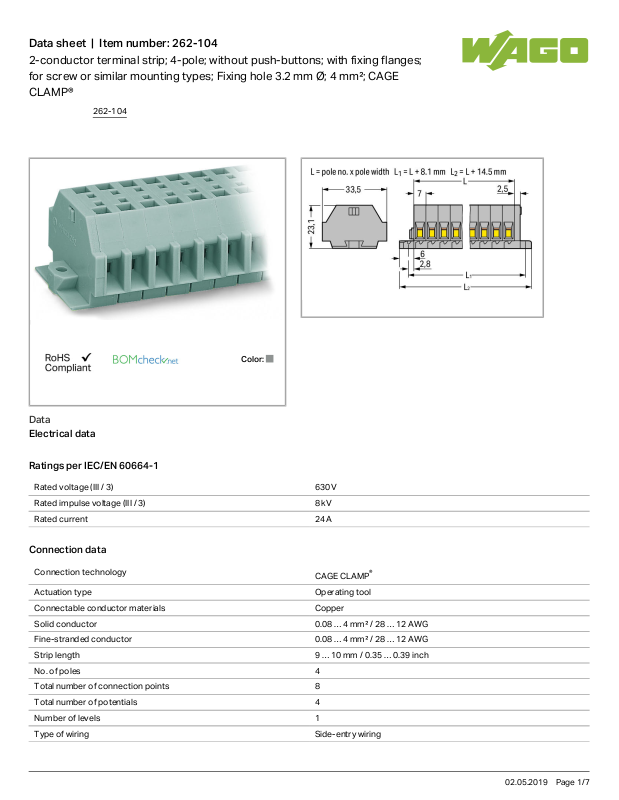

Wago 262-104 Data Sheet

Data sheet | Item number:262-104
2-conductor terminal strip; 4-pole; without push-buttons; with fixing flanges; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 630 V
Rated impulse voltage (III / 3) 8 kV
Rated current 24 A

Connection data

Connection technology
CAGE CLAMP
®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.08 … 4mm²/ 28 … 12AWG
Fine-stranded conductor 0.08 … 4mm²/ 28 … 12AWG
Strip length 9 … 10mm/ 0.35 … 0.39inch
No. of poles 4
Total number of connection points 8
Total number of potentials 4
Number of levels 1
Type of wiring Side-entry wiring
262-104
02.05.2019Page /1 7
Data sheet | Item number:262-104
Type of wiring Side-entry wiring
Geometrical Data
Width 42.5mm/ 1.673inch
Height from the surface 23mm/ 0.906inch
Depth 33.5mm/ 1.319inch
Module width 7mm/ 0.276inch

Mechanical data

Design horizontal
Mounting type Mounting flange
Marking level Side marking

Material Data

Color gray
Fire load 0.364 MJ
Weight 18.552g

Commercial data

Country of origin DE
GTIN 4044918640176
Customs Tariff No. 85369010000

Approvals / Certificates

Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
DEKRA Certification B.V.
EN 60998 NTR-NL
6510
CCA
DEKRA Certification B.V.
EN 60998 2110272.03
CSA
DEKRA Certification B.V.
C22.2 70010891
Ship Approvals
Logo Approval Additional Approval Text
Certificate name
262-104
02.05.2019Page /2 7
Data sheet | Item number:262-104
ABS
American Bureau of Shipping
- 14­HG1241539­PDA
BV
Bureau Veritas S.A.
EN 60947 07436/E0 BV
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00001V2
LR
Lloyds Register
IEC 60998 91/20242
(E7)
UL-Approvals
Logo Approval Additional Approval Text
Certificate name
UR
Underwriters Laboratories Inc.
UL 1059 E45172

Compatible products

check
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable
210-136
Item no.: 210-137
Test plug; 2.3 mm Ø; with 500 mm cable
210-137
Item no.: 249-137
Test plug module; without locking device; modular; for 2-conductor terminal blocks
249-137

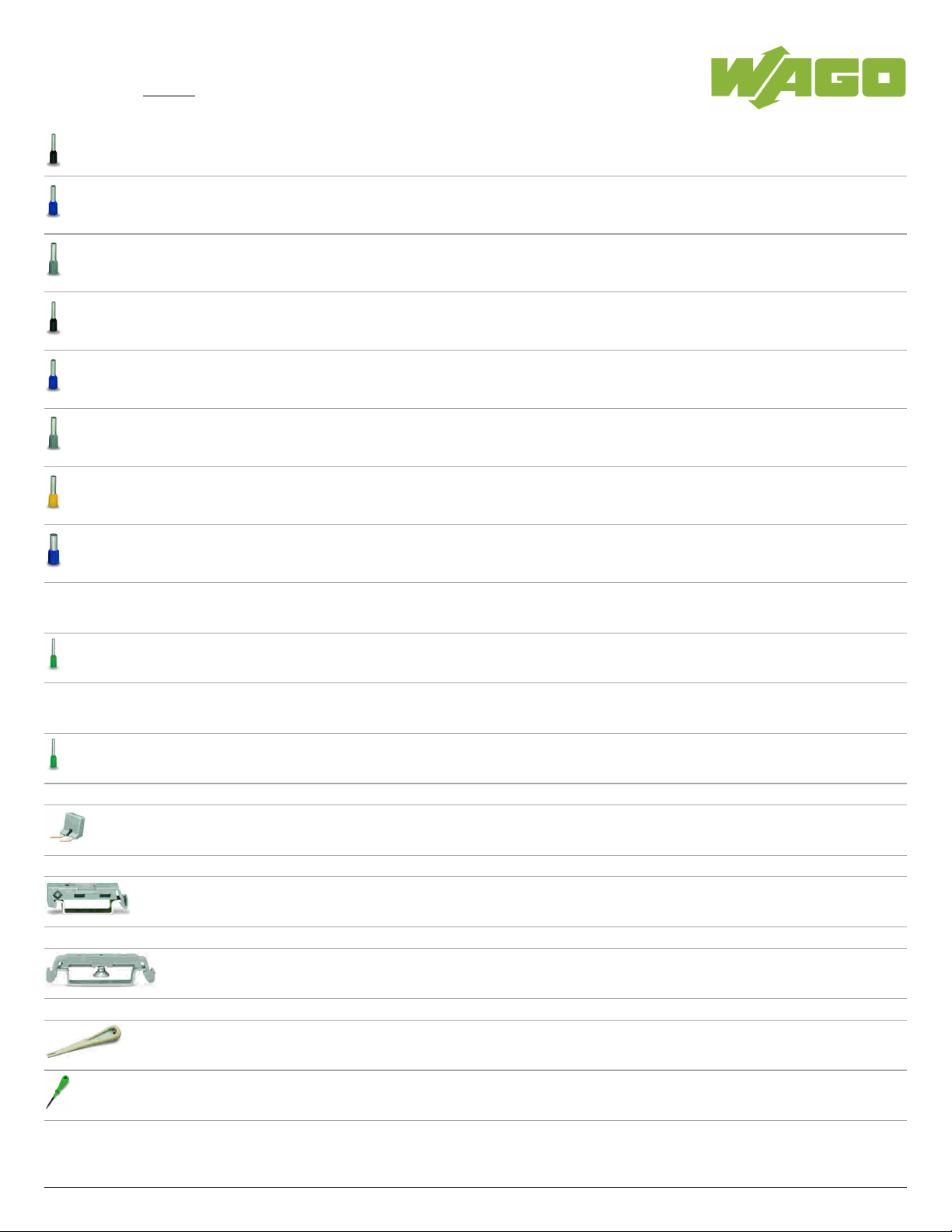

ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
216-101
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
216-102
262-104
02.05.2019Page /3 7
