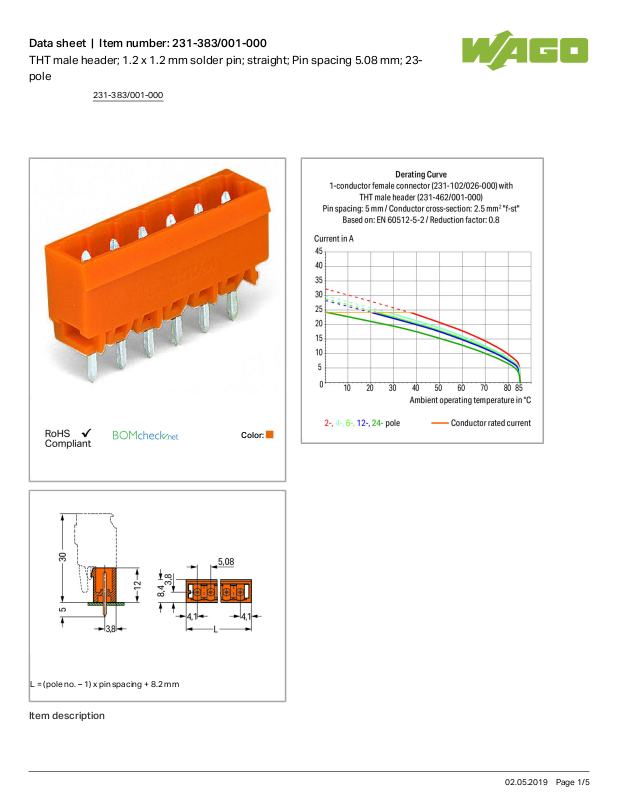

Wago 231-383/001-000 Data Sheet
Data sheet | Item number: 231-383/001-000
THT male header; 1.2 x 1.2 mm solder pin; straight; Pin spacing 5.08 mm; 23pole
231-383/001-000
Color:
L = (pole no. – 1) x pin spacing + 8.2 mm
Item description
02.05.2019 Page 1/5
Data sheet | Item number: 231-383/001-000
231-383/001-000
Horizontal or vertical PCB mounting via straight or angled solder pins
1.2 x 1.2 mm solder pins allow nominal current up to 16 A, enhancing stability of shorter headers
With coding fingers
Safety information 1:
The MULTI CONNECTION SYSTEM (MCS) is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) |
250V |
Rated impulse voltage (III / 3) |
4kV |
Rated voltage (III / 2) |
320V |
Rated impulse voltage (III / 2) |
4kV |
Rated voltage (II / 2) |
630V |
Rated impulse voltage (II / 2) |
4kV |
Rated current |
16A |
Approvals per UL 1059
Rated voltage UL (Use Group B) |
300V |
Rated current UL (Use Group B) |
15A |
Rated voltage UL (Use Group D) |
300V |
Rated current UL (Use Group D) |
10A |
Approvals per UL 1977
Rated voltage per UL 1977 (factory wiring only) |
600V |
Rated current per UL 1977 (factory wiring only) |
15A |
Approvals per CSA
Rated voltage CSA (Use Group B) |
300V |
Rated current CSA (Use Group B) |
15A |
Rated voltage CSA (Use Group D) |
300V |
Rated current CSA (Use Group D) |
10A |
Connection data
No. of poles |
23 |
Total number of potentials |
23 |
02.05.2019 Page 2/5
