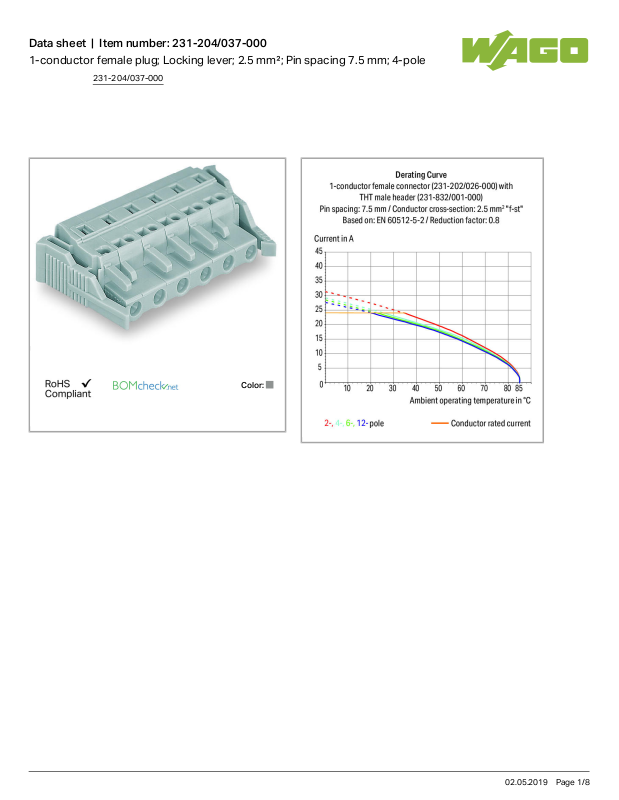

Wago 231-204/037-000 Data Sheet
Data sheet | Item number: 231-204/037-000
1-conductor female plug; Locking lever; 2.5 mm²; Pin spacing 7.5 mm; 4-pole
231-204/037-000
Color:
02.05.2019 Page 1/8
Data sheet | Item number: 231-204/037-000
231-204/037-000
L = (pole no. – 1) x pin spacing + 5 mm
2- to 3-pole female connectors – one latch only
Item description
Universal connection for all conductor types
Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
Integrated test ports
With coding fingers
Safety information 1:
The MULTI CONNECTION SYSTEM (MCS) is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) |
500V |
Rated impulse voltage (III / 3) |
6kV |
Rated voltage (III / 2) |
630V |
Rated impulse voltage (III / 2) |
6kV |
Rated voltage (II / 2) |
1000V |
Rated impulse voltage (II / 2) |
6kV |
02.05.2019 Page 2/8
Data sheet | Item number: 231-204/037-000
231-204/037-000 |
|
|
Rated current |
16A |
|
Approvals per UL 1059 |
|
|
Rated voltage UL (Use Group B) |
300V |
|
Rated current UL (Use Group B) |
15A |
|
Rated voltage UL (Use Group D) |
300V |
|
Rated current UL (Use Group D) |
10A |
|
Approvals per UL 1977 |
|
|
Rated voltage per UL 1977 (factory wiring only) |
600V |
|
Rated current per UL 1977 (factory wiring only) |
15A |
|
Approvals per CSA |
|
|
Rated voltage CSA (Use Group B) |
300V |
|
Rated current CSA (Use Group B) |
15A |
|
Rated voltage CSA (Use Group D) |
300V |
|
Rated current CSA (Use Group D) |
10A |
|
Connection data |
|
|
Connection technology |
CAGE CLAMP® |
|
Actuation type |
Operating tool |
|
Solid conductor |
0.08 |
… 2.5 mm² / 28 … 12 AWG |
Fine-stranded conductor |
0.08 |
… 2.5 mm² / 28 … 12 AWG |
Fine-stranded conductor with ferrule with plastic collar |
0.25 |
… 1.5 mm² |
Fine-stranded conductor with ferrule without plastic collar |
0.25 |
… 2.5 mm² |
Strip length |
8 … 9 mm / 0.31 … 0.35 inch |
|
No. of poles |
4 |
|
Total number of connection points |
4 |
|
Total number of potentials |
4 |
|
Number of connection types |
1 |
|
Number of levels |
1 |
|
Conductor entry direction to mating direction |
0° |
|
Geometrical Data |
|
|
Pin spacing |
7.5 mm / 0.295 inch |
|
Width |
44.1 mm / 1.736 inch |
|
Height |
14.3 mm / 0.563 inch |
|
Depth |
29.6 mm / 1.165 inch |
|
02.05.2019 Page 3/8
