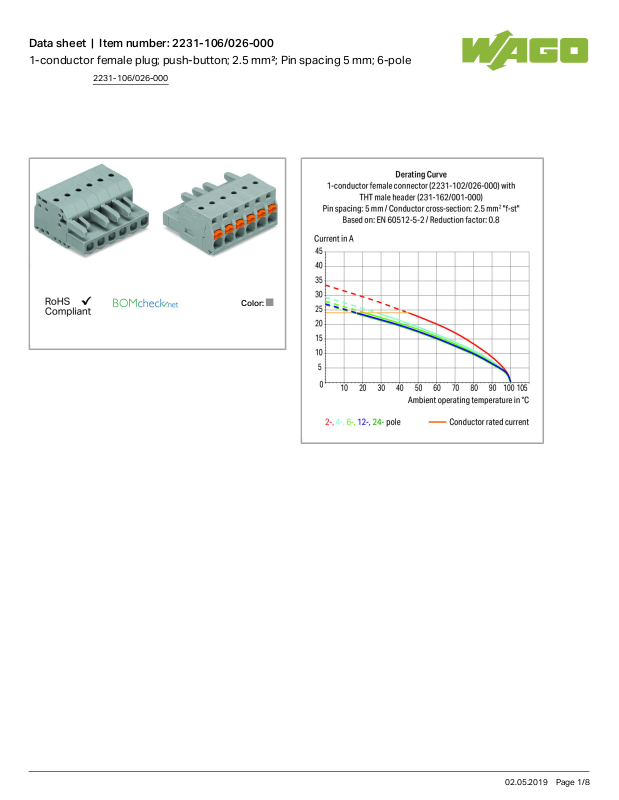

Wago 2231-106/026-000 Data Sheet
Data sheet | Item number: 2231-106/026-000
1-conductor female plug; push-button; 2.5 mm²; Pin spacing 5 mm; 6-pole
2231-106/026-000
Color:
02.05.2019 Page 1/8
Data sheet | Item number: 2231-106/026-000
2231-106/026-000
L = (pole no. x pin spacing) + 1.5 mm
L1 = 5 mm
2- to 3-pole female connectors – one latch only
Item description
Universal connection for all conductor types
Easy-to-use design does not require specialty tools
Ability to wire while mated
Push-in termination of solid and ferruled conductors
Integrated test ports for testing parallel to the conductor entry
With coding fingers
Safety information 1:
The MULTI CONNECTION SYSTEM (MCS) is designed without breaking capacity for compliance with DIN EN 61984. When used as intended, MCS Connectors shall not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) |
320V |
02.05.2019 Page 2/8
Data sheet | Item number: 2231-106/026-000
2231-106/026-000 |
|
Rated impulse voltage (III / 3) |
4kV |
Rated voltage (III / 2) |
320V |
Rated impulse voltage (III / 2) |
4kV |
Rated voltage (II / 2) |
630V |
Rated impulse voltage (II / 2) |
4kV |
Rated current |
16A |
Approvals per UL 1059 |
|
Rated voltage UL (Use Group B) |
300V |
Rated current UL (Use Group B) |
15A |
Rated voltage UL (Use Group C) |
150V |
Rated current UL (Use Group C) |
15A |
Rated voltage UL (Use Group D) |
300V |
Rated current UL (Use Group D) |
10A |
Approvals per UL 1977 |
|
Rated voltage per UL 1977 (factory wiring only) |
600V |
Rated current per UL 1977 (factory wiring only) |
15A |
Approvals per CSA |
|
Rated voltage CSA (Use Group B) |
300V |
Rated current CSA (Use Group B) |
15A |
Rated voltage CSA (Use Group C) |
150V |
Rated current CSA (Use Group C) |
15A |
Rated voltage CSA (Use Group D) |
300V |
Rated current CSA (Use Group D) |
10A |
Connection data |
|
Connection technology |
Push-in CAGE CLAMP® |
Actuation type |
Push-button |
Solid conductor |
0.2 … 2.5 mm² / 24 … 12 AWG |
Fine-stranded conductor |
0.2 … 2.5 mm² / 24 … 12 AWG |
Fine-stranded conductor with ferrule with plastic collar |
0.25 … 1.5 mm² |
Fine-stranded conductor with ferrule without plastic collar |
0.25 … 2.5 mm² |
Strip length |
10 … 11 mm / 0.39 … 0.43 inch |
No. of poles |
6 |
Total number of connection points |
6 |
Total number of potentials |
6 |
Number of connection types |
1 |
Number of levels |
1 |

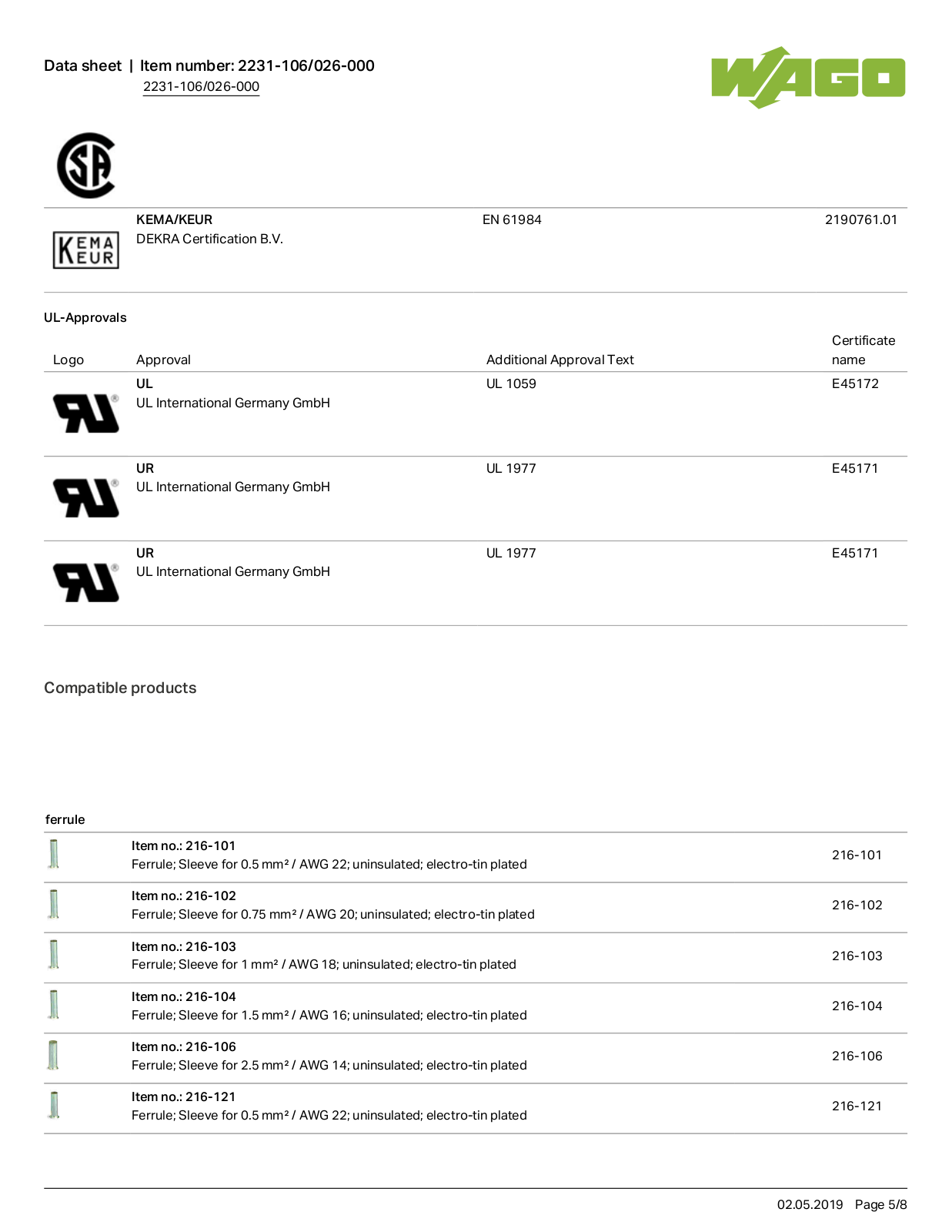

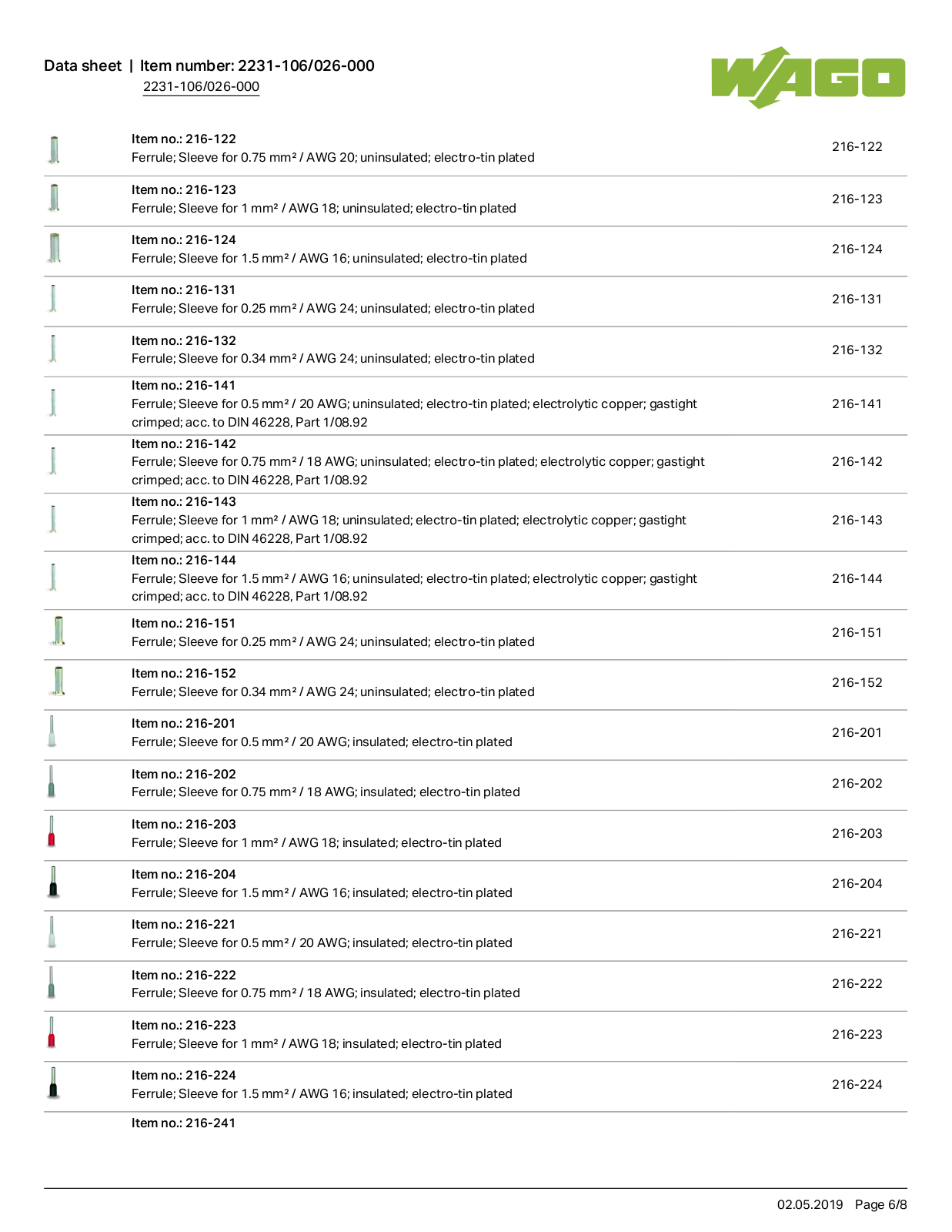

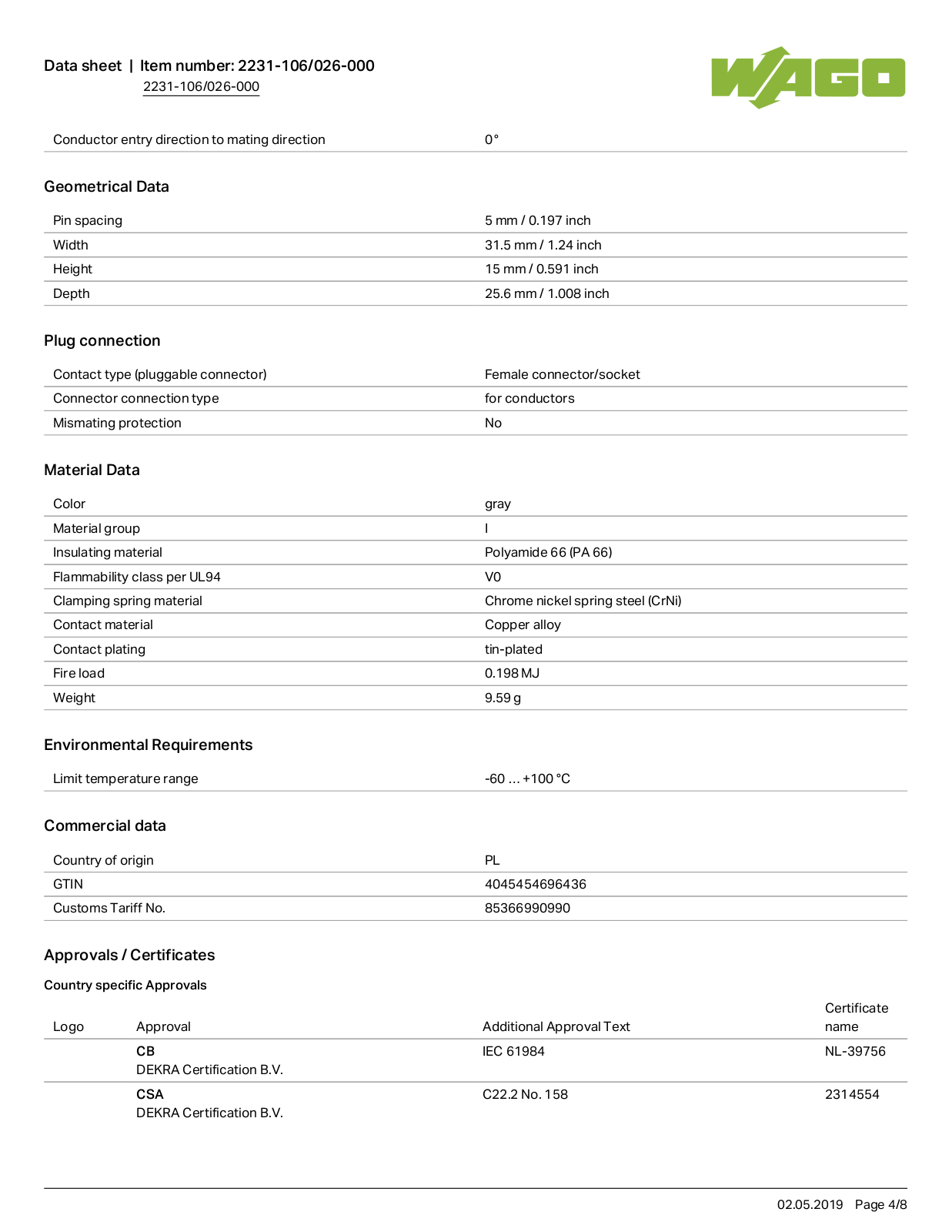

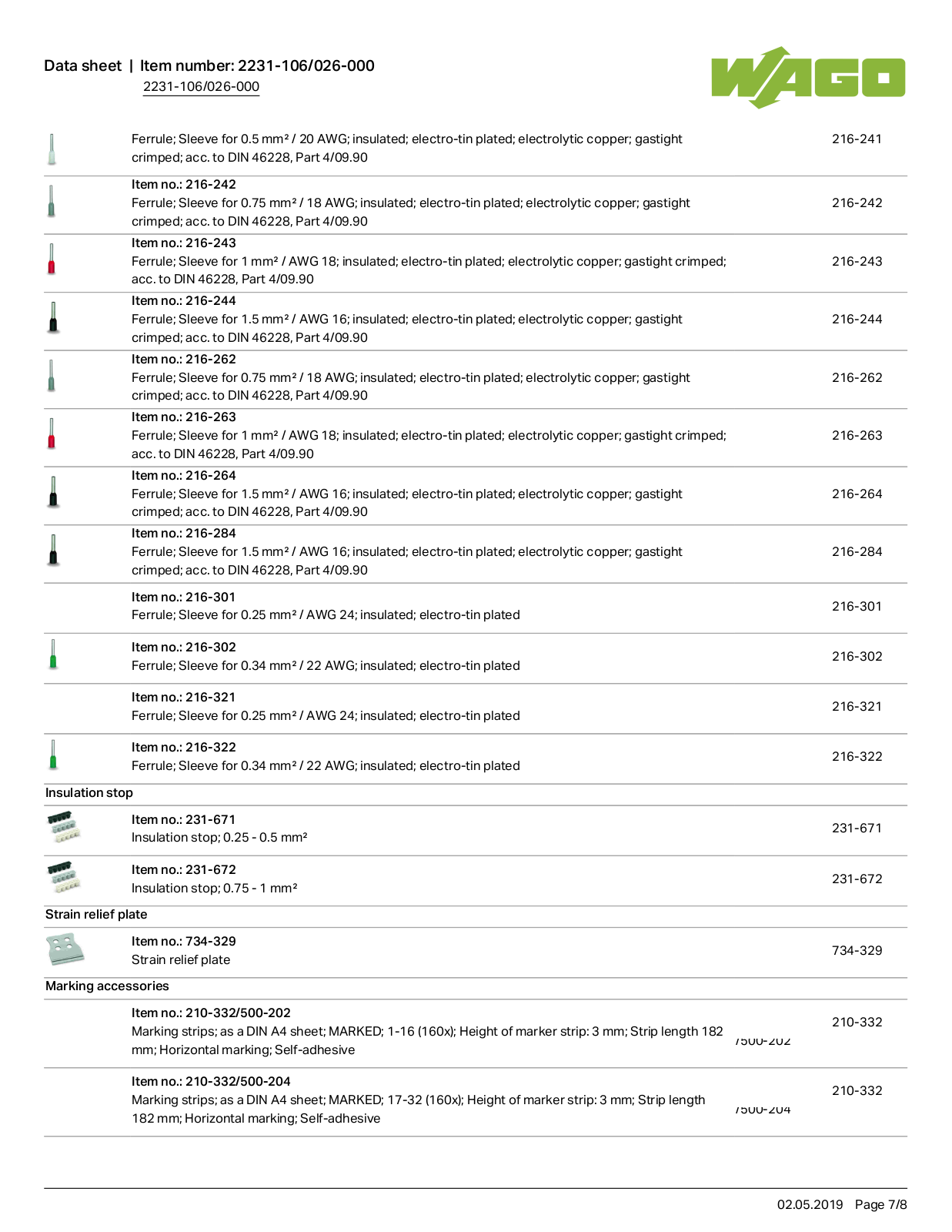

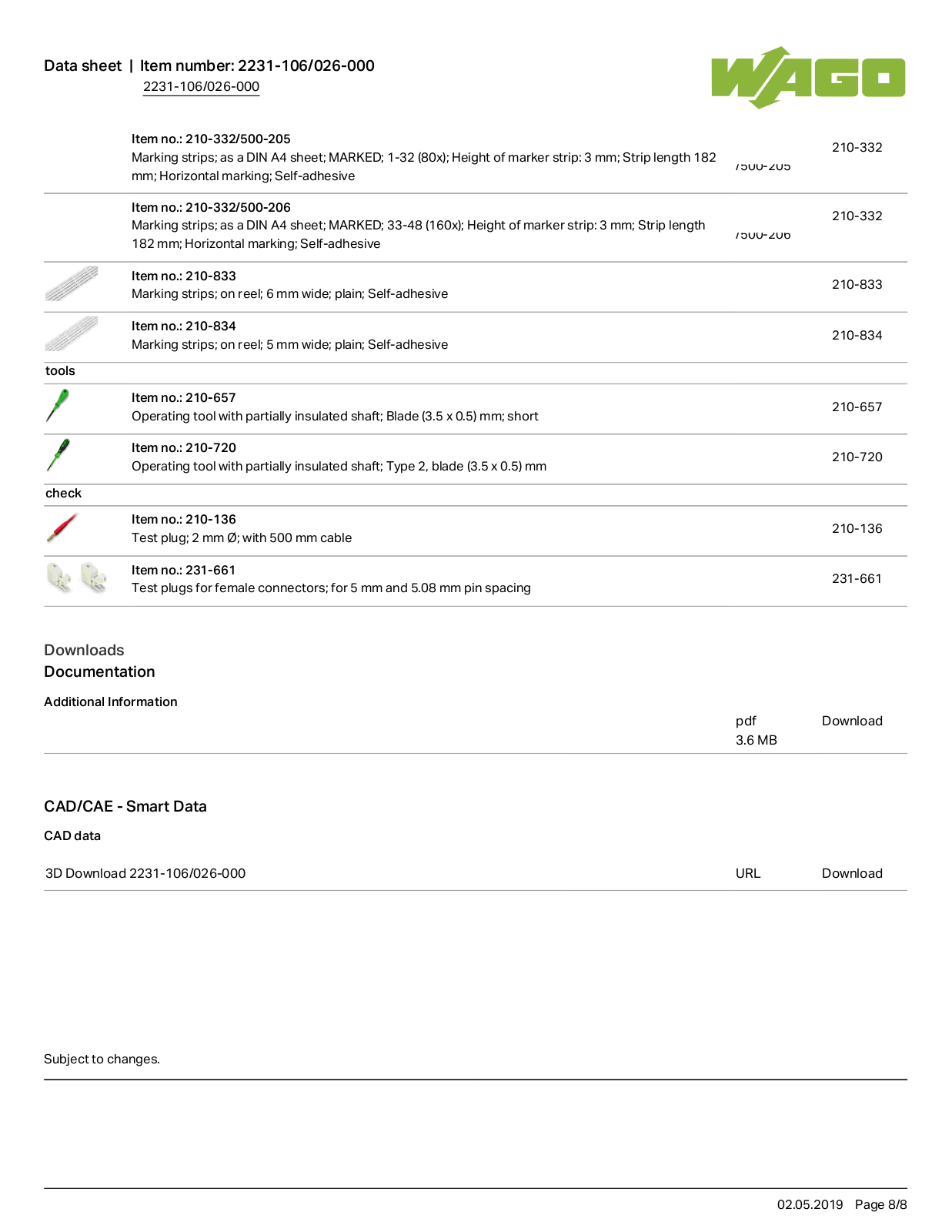

02.05.2019 Page 3/8
