Wago 2216-1307 Data Sheet

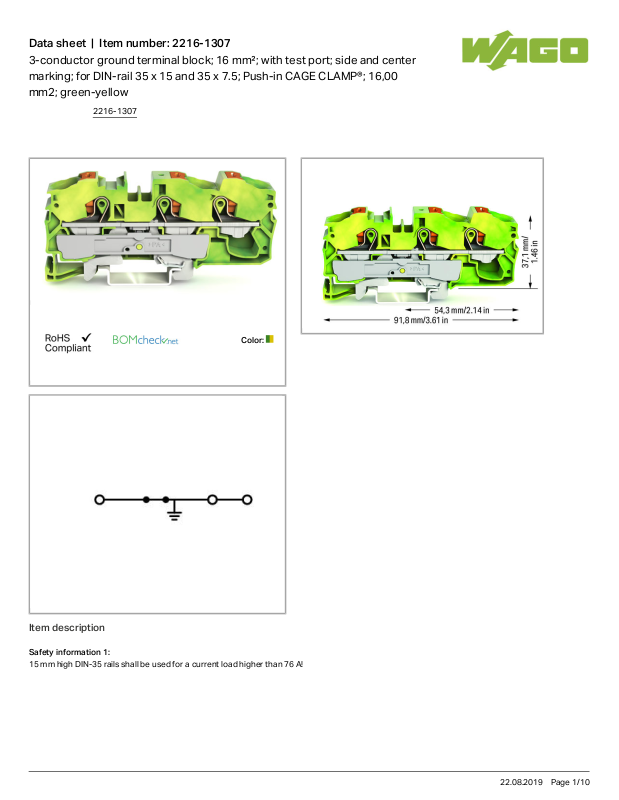

Data sheet | Item number:2216-1307

3-conductor ground terminal block; 16 mm²; with test port; side and center
marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00
mm2; green-yellow

Color:

Item description

Safety information 1:

15 mm high DIN-35 rails shall be used for a current load higher than 76 A!

2216-1307

22.08.2019Page /1 10

Data sheet | Item number:2216-1307

Data

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 16mm²

Solid conductor 0.5 16mm²/ 20 6AWG

Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG

Fine-stranded conductor 0.5 25mm²/ 20 4AWG

Strip length 18 20mm/ 0.71 0.79inch

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 12mm/ 0.472inch

Height from upper-edge of DIN-35 rail 37.1mm/ 1.461inch

Depth 91.8mm/ 3.622inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color green-yellow

Insulating material Polyamide 66 (PA 66)

Weight 48.002g

Commercial data

Country of origin DE

GTIN 4055143732802

Customs Tariff No. 85369010000

2216-1307

22.08.2019Page /2 10

Data sheet | Item number:2216-1307

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

AEx

Underwriters Laboratories Inc.

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1009 U

ATEX

Physikalisch Technische Bundesanstalt

EN 60079-0 PTB 18

ATEX
1009 U

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0016U
(Ex eb IIC
Gb and EX
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0016U
(Ex eb IIC
Gb and EX
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7669

CSA

DEKRA Certification B.V.

C22.2 70175032

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102881

Country specific Approvals

2216-1307

22.08.2019Page /3 10
