Wago 221-613, 221-612, 221-615 Installation Instructions

Installer Connectors Overview

Suitable for lighting, power, HVAC & other applications

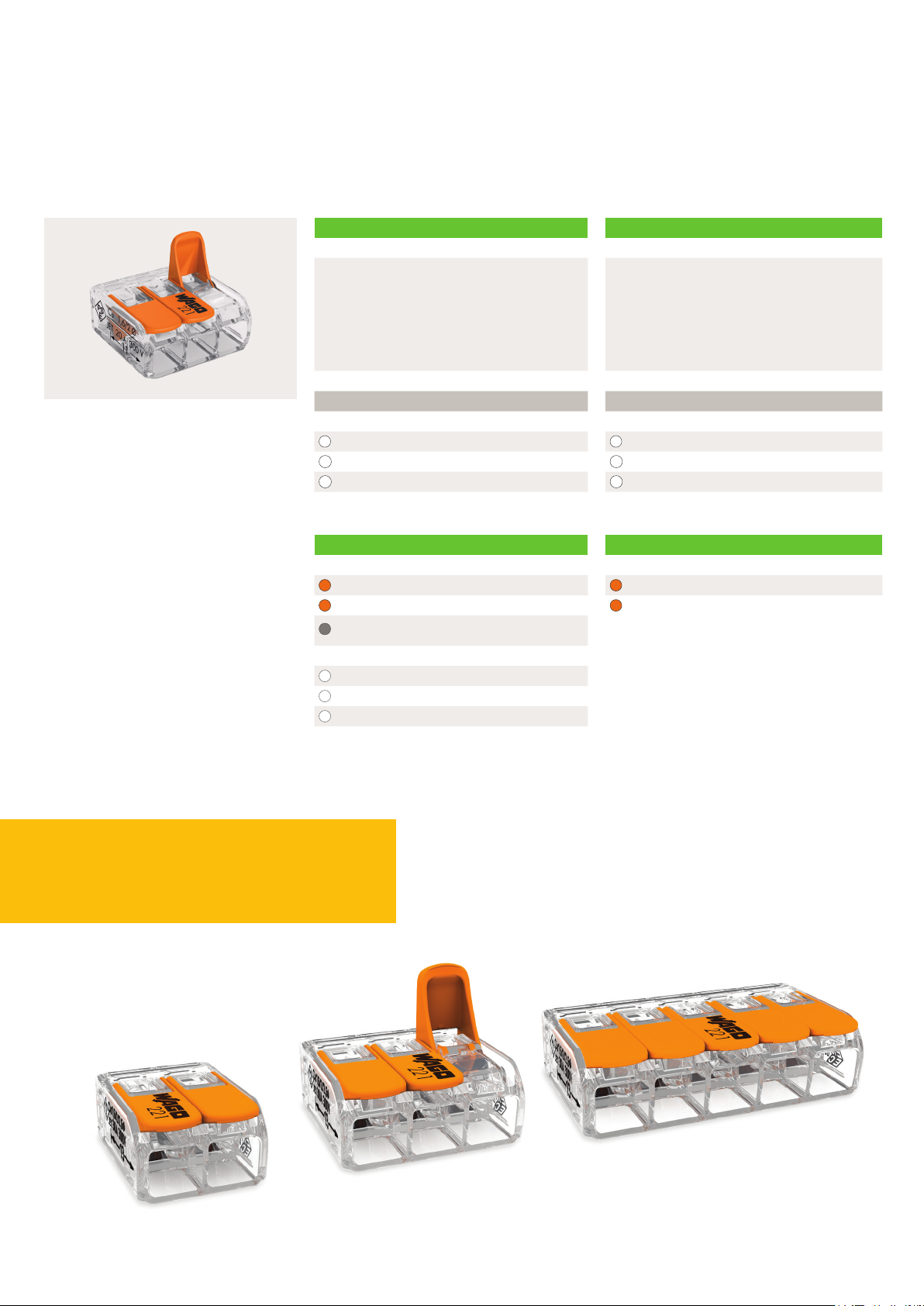

221 Series

Compact Lever Connectors

221 Series - 4mm²

Technical Data

2

0.2 - 4mm

0.14 - 4mm
450 V/4 kV/2
32 A

L 11 mm

Description. Item No. Box Unit.

transparent housing

2-conductor

3-conductor

5-conductor

1 In grounded (earthed) supply systems

221 Series - 4mm²

Accessories

Mounting Carrier

Strain Relief Plate
Angled DIN-rail

adapter

Carriers for screw mounting

2-conductor

3-conductor

5-conductor

For all options please contact us.

  solid & stranded

2  

ne-stranded

1

221-412 100

221-413 50

221-415 25

221-500 10

222-505 10

222-510 10

221-502 10

221-503 10

221-505 10

221 Series - 6mm²

Technical Data

2

0.5 - 6mm

       ne-stranded

450 V/4 kV/2
41 A

L 13 mm

Description. Item No. Box Unit.

transparent housing

2-conductor

3-conductor

5-conductor

221 Series - 6mm²

Accessories

Mounting Carrier

Strain Relief Plate

  solid, stranded &

1

221-612 50

221-613 30

221-615 15

221-510 10

222-505 10

NEW

6mm²
version

Operating

1. Strip the conductor 11mm
(4mm² version) or 13mm (6mm²
version).

Advantages & Accessories

100% Transparent Housing

Safety check

• Wire inserted properly

• Insulation stripped properly

2. Open clamping unit using the
lever and insert the conductor.

Two test slots WAGOBOX XL

Front and back of the housing Part No. 60339091 (PU1)

• Easy testing while installed • Suitable for the 221 (4mm²

3. Lower the lever to close the clamp
to complete the connection.

4. To remove, lift the lever and pull
out the conductor.

version only) and 2273 series

• Can be used within maintenance
free applications

Mounting

NEW

• Screw or snap-in mounted carriers for
horziontal or vertical mounting for the
4mm² version only.

Carriers

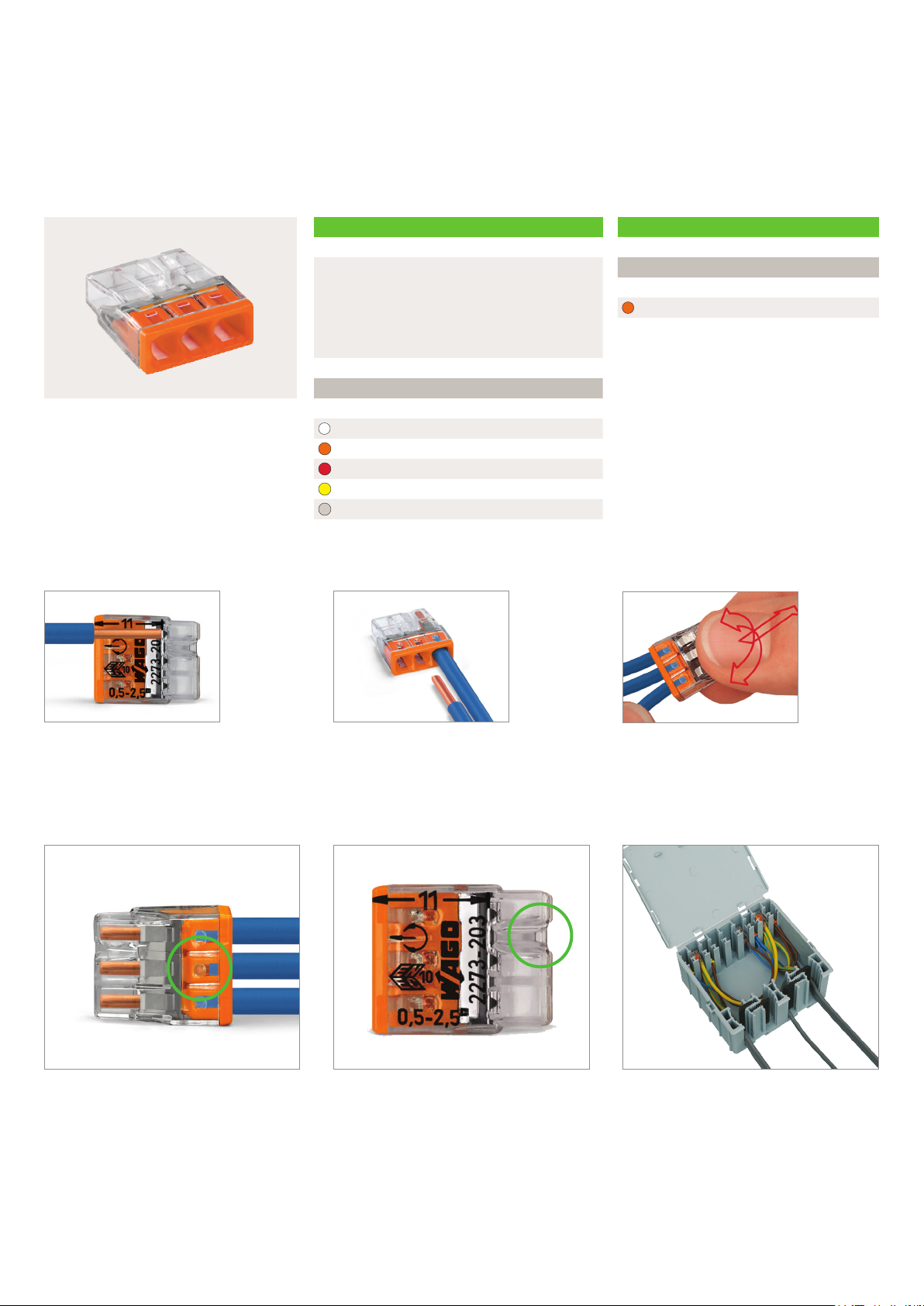

2273 Series

Compact PUSH WIRE® Connectors

Operating

2273 Series

Technical Data

2

0.5 - 2.5mm
450 V/4 kV/2
24 A

L 11 mm

Description. Item No. Box Unit.

transparent housing

2-conductor

3-conductor

4-conductor

5-conductor

8-conductor

  solid

1

2273-202 100

2273-203 100

2273-204 100

2273-205 100

2273-208 50

2273 Series

Accessories

Description. Item No. Box Unit.

Mounting Carrier

2273-500 10

1. Strip the conductor
11mm.

Advantages & Accessories

100% Transparent Housing

Safety check

• Wire inserted properly

• Insulation stripped properly

2. Insert the conductor fully
into the housing to complete
the connection.

Test slot

Back of the housing

• Easy testing while installed

3. To remove, simply twist and pull
the connector and conductor at the
same time.

WAGOBOX XL

Part No. 60339091 (PU1)

• Suitable for the 2273 and 221
(4mm² version only) series

• Can be used within maintenance
free applications

1 In grounded (earthed) supply systems

224 Series

Lighting Connectors

224 Series

Technical Data

Installation side 1 - 2.5mm
  Lighting side   0.5 - 2.5mm

400 V/4 kV/2
24 A

L 9 - 11 mm

1

2

solid

2 

solid &
ne-stranded

Operating

1. Strip both conductors
9 - 11mm. 2. Insert the solid
conductor fully into the installation
side.

Advantages & Accessories

Description. Item No. Box Unit.

2-conductor

3-conductor

2-conductor

224-101 100

224-112 100

224-201

2

3. To connect the lighting side
squeeze together the housing and
insert the conductor fully, then
release to complete the connection.

Installation side Lighting side

50

2 Both sides of the 224-201 connector allows
for 0.5 - 2.5mm2 solid & ne-stranded.

4. To remove the installation side
simply twist and pull the conductor
at the same time. To remove the
lighting side squeeze together the
housing and pull out the conductor.

Back of the housing

1 In grounded (earthed) supply systems

WAGOBOX LightTest slot

Part No. 51303208 (PU1)
Part No. 51257303 (PU10)

• Suitable for the 224 series• Easy testing while installed

222 Series

Lever Connectors

Operating

222 Series

Technical Data

2

0.08 - 2.5mm

0.08 - 4mm
400 V/4 kV/2
32 A

L 9 - 10 mm

Description. Item No. Box Unit.

2-conductor

3-conductor

5-conductor

 solid & stranded

2  

ne-stranded

1

222-412 50

222-413 50

222-415 40

222 Series

Accessories

Description. Item No. Box Unit.

Mounting Carrier

Strain Relief Plate

Angled DIN-rail adapter

222-500 10

222-505 10

222-510 10

1. Strip the conductor
9 - 10mm.

2. Open clamping unit using the lever
and insert the conductor.

Advantages & Accessories

Test slot WAGOBOX

Back of the housing Part No. 51008291 (PU1)

Part No. 51008319 (PU10)

3. Lower the lever to close the
clamp to complete the connection.

4. To remove, lift the lever and pull
out the conductor.

222-500 Mounting Carrier

With various mounting options

• Easy testing while installed • Suitable for the 222 and 773 series

• Can be used within maintenance
free applications

• For larger applications try the

1 In grounded (earthed) supply systems

WAGOBOX XLA

• Horizontal & vertical mounting
on DIN 35 rail

• Horizontal screw mounting with
strain relief plate

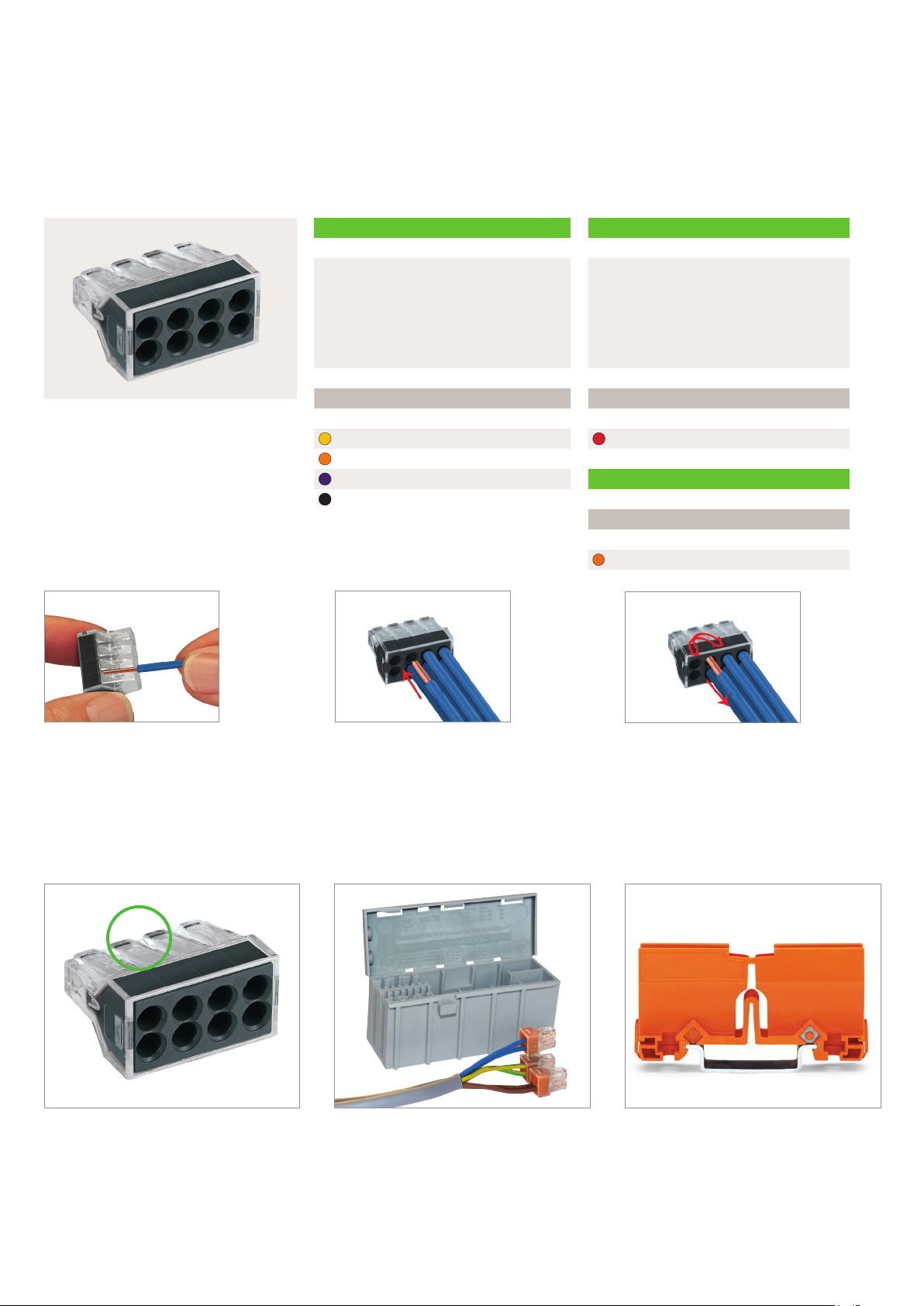

773 Series

PUSH WIRE® Connectors

Operating

773 Series

Technical Data

2

0.75 - 2.5mm

1.5 - 2.5mm
400 V/4 kV/2
24 A

L 12 mm

Description. Item No. Box Unit.

transparent housing

2-conductor

4-conductor

6-conductor

8-conductor

 solid

2  

1

stranded

773-102 100

773-104 100

773-106 50

773-108 50

773-173

Technical Data

2

2.5 - 6mm
400 V/4 kV/2
41 A

L 12 - 13 mm

Description. Item No. Box Unit.

transparent housing

3-conductor

773 Series

Accessories

Description. Item No. Box Unit.

Mounting Carrier

 solid & stranded

1

773-173 50

773-332 10

1. Strip the conductor 12mm. 2. Insert the conductor fully into the
housing to complete the connection.

Advantages & Accessories

Test slot

Back of the housing

WAGOBOX

Part No. 51008291 (PU1)
Part No. 51008319 (PU10)

3. To remove, simply twist and pull
the connector and conductor at
the same time.

773-332 Mounting Carrier

With various mounting options

• Easy testing while installed

1 In grounded (earthed) supply systems

• Suitable for the 773 and 222 series

• Can be used within maintenance

free applications

• For larger applications try the

WAGOBOX XLA

• Horizontal mounting on
DIN 35 rail

• Horizontal screw mounting

Selection Carry Cases

Compact Connectors

221 Series Compact Lever Case

Description. Item No. Box Unit.

85 Connectors 60281155 1

Includes:-

40 x 221-412 30 x 221-413 15 x 221-415

2273 Series Compact PUSH WIRE® Case

Description. Item No. Box Unit.

200 Connectors 887-100 1

Includes:-

40 x 2273-202 50 x 2273-203 50 x 2273-204

40 x 2273-205 20 x 2273-208

222, 773 & 224 Series

Installer Box Professional

Description. Item No. Box Unit.

240 Connectors 51228988 1

Includes:-

40 x 222-412 40 x 222-413 20 x 222-415

20 x 224-101 20 x 224-112

40 x 773-102 40 x 773-104 10 x 773-106

10 x 773-108

Installer Box Basic

Description. Item No. Box Unit.

75 Connectors 51228987 1

Includes:-

10 x 222-412 10 x 222-413 5 x 222-415

10 x 224-101 10 x 224-112

10 x 773-102 10 x 773-104 5 x 773-106

 5 x 773-108

For further details on any of our products please contact us.
