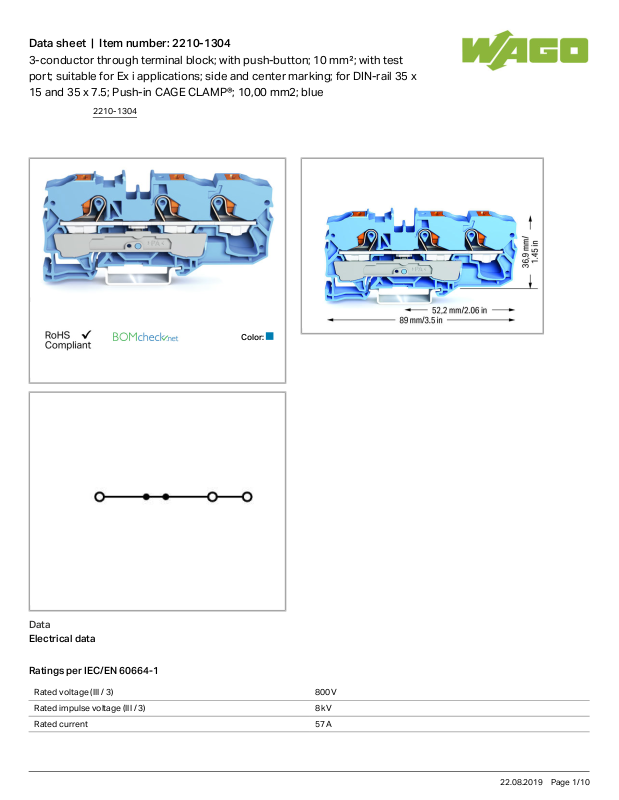

Wago 2210-1304 Data Sheet

Data sheet | Item number:2210-1304

3-conductor through terminal block; with push-button; 10 mm²; with test
port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x
15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm2; blue

Color:

Data

Electrical data

Ratings per IEC/EN 60664-1

Rated voltage (III / 3) 800 V

Rated impulse voltage (III / 3) 8 kV

Rated current 57 A

2210-1304

22.08.2019Page /1 10

Data sheet | Item number:2210-1304

Rated current (2) 76 A

Connection data

Connection technology

Push-in CAGE CLAMP

®

Actuation type Push-in

Push-button

Connectable conductor materials Copper

Nominal cross section 10mm²

Solid conductor 0.5 16mm²/ 20 6AWG

Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG

Fine-stranded conductor 0.5 16mm²/ 20 6AWG

Strip length 17 19mm/ 0.67 0.75inch

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a

smaller cross section can also be inserted via push-in termination.

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Type of wiring Front-entry wiring

Number of jumper slots 2

Geometrical Data

Width 10mm/ 0.394inch

Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch

Depth 89mm/ 3.504inch

Mechanical data

Design horizontal

Type of mounting DIN-35 rail

Marking level Center/side marking

Material Data

Color blue

Insulating material Polyamide 66 (PA 66)

Weight 25.537g

Commercial data

Country of origin DE

GTIN 4055143736121

Customs Tariff No. 85369010000

2210-1304

22.08.2019Page /2 10

Data sheet | Item number:2210-1304

Approvals / Certificates

Ex-Approvals

Logo Approval Additional Approval Text

Certificate
name

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1008

ATEX

UL International Demko A/S

UL 60079 E185892

ATEX

Physikalisch Technische Bundesanstalt

IEC 60079-0 PTB 18

ATEX
1008

ATEX

UL International Demko A/S

UL 60079 E185892

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0015U
(Ex eb IIC
Gb and Ex
eb I Mb)

IECEx

Physikalisch Technische Bundesanstalt

IEC 60079 IECEx PTB

18.0015U
(Ex eb IIC
Gb and Ex
eb I Mb)

Radio-Approvals

Logo Approval Additional Approval Text

Certificate
name

CSA

DEKRA Certification B.V.

C22.2 70175033

KEMA/KEUR

DEKRA Certification B.V.

EN 60947 71-

102880

Country specific Approvals

Logo Approval Additional Approval Text

Certificate
name

CCA

DEKRA Certification B.V.

EN 60947 NTR NL

7668
