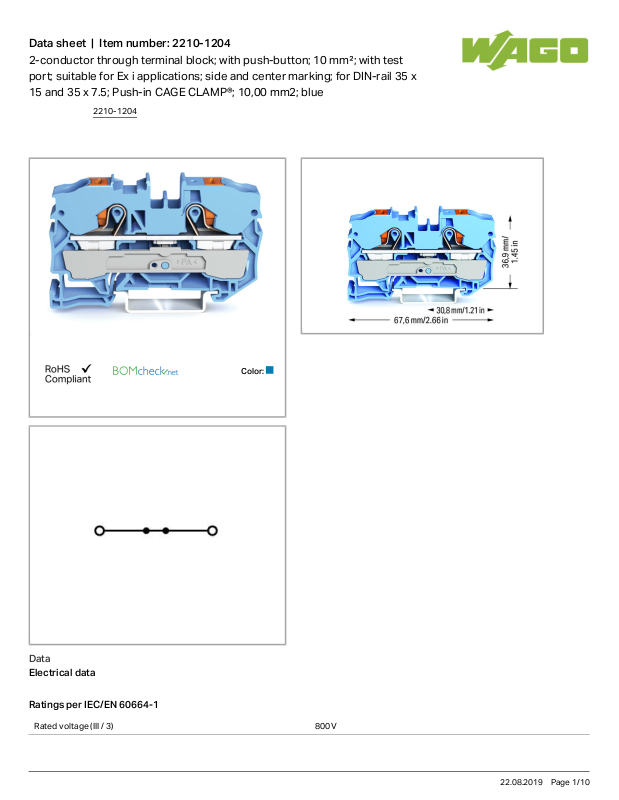

Wago 2210-1204 Data Sheet

Data sheet | Item number:2210-1204
2-conductor through terminal block; with push-button; 10 mm²; with test port; suitable for Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm2; blue
Data
Electrical data
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
2210-1204
22.08.2019Page /1 10
Data sheet | Item number:2210-1204
Rated impulse voltage (III / 3) 8 kV
Rated current 57 A
Rated current (2) 76 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-button
Push-in
Connectable conductor materials Copper
Nominal cross section 10mm²
Solid conductor 0.5 16mm²/ 20 6AWG
Solid conductor, push-in termination 2.5 16mm²/ 14 6AWG
Fine-stranded conductor 0.5 16mm²/ 20 6AWG
Strip length 17 19mm/ 0.67 0.75inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 10mm/ 0.394inch
Height from upper-edge of DIN-35 rail 36.9mm/ 1.453inch
Depth 67.6mm/ 2.661inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
Material Data
Color blue
Insulating material Polyamide 66 (PA 66)
Weight 18.975g
Commercial data
Country of origin DE
GTIN 4055143736077
2210-1204
22.08.2019Page /2 10
Data sheet | Item number:2210-1204
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate name
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1008
ATEX
UL International Demko A/S
UL 60079 E185892
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1008
ATEX
UL International Demko A/S
UL 60079 E185892
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0015U (Ex eb IIC Gb and Ex eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0015U (Ex eb IIC Gb and Ex eb I Mb)
Radio-Approvals
Logo Approval Additional Approval Text
Certificate name
CSA
DEKRA Certification B.V.
C22.2 70175033
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102880
Country specific Approvals
Logo Approval Additional Approval Text
Certificate name
CCA
EN 60947 NTR NL
2210-1204
22.08.2019Page /3 10
