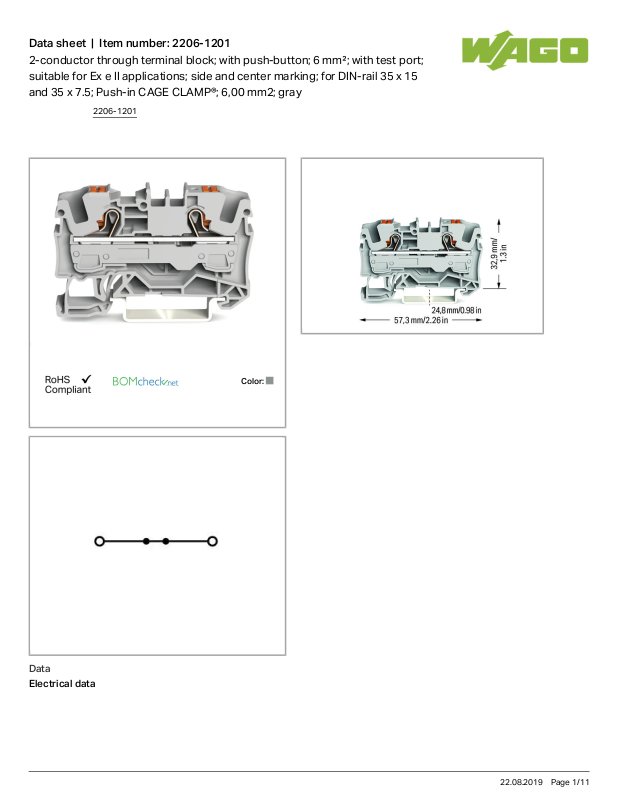

Data sheet | Item number:2206-1201
2-conductor through terminal block; with push-button; 6 mm²; with test port;
suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15
and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm2; gray
Color:
Data
Electrical data
2206-1201
22.08.2019Page /1 11
Data sheet | Item number:2206-1201
Ratings per IEC/EN 60664-1
Rated voltage (III / 3) 800 V
Rated impulse voltage (III / 3) 8 kV
Rated current 41 A
Rated current (2) 57 A
Approvals per UL 1059
Rated voltage UL (Use Group B) 600 V
Rated current UL (Use Group B) 50 A
Rated voltage UL (Use Group C) 600V
Rated current UL (Use Group C) 50 A
Connection data
Connection technology
Push-in CAGE CLAMP
®
Actuation type Push-in
Push-button
Connectable conductor materials Copper
Nominal cross section 6mm²
Solid conductor 0.5 10mm²/ 20 8AWG
Solid conductor, push-in termination 1 10mm²/ 14 8AWG
Fine-stranded conductor 0.5 10mm²/ 20 8AWG
Strip length 13 15mm/ 0.51 0.59inch
Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a
smaller cross section can also be inserted via push-in termination.
Total number of connection points 2
Total number of potentials 1
Number of levels 1
Type of wiring Front-entry wiring
Number of jumper slots 2
Geometrical Data
Width 7.5mm/ 0.295inch
Height from upper-edge of DIN-35 rail 32.9mm/ 1.295inch
Depth 57.3mm/ 2.256inch
Mechanical data
Design horizontal
Type of mounting DIN-35 rail
Marking level Center/side marking
2206-1201
22.08.2019Page /2 11
Data sheet | Item number:2206-1201
Material Data
Color gray
Insulating material Polyamide 66 (PA 66)
Fire load 0.178 MJ
Weight 9.967g
Commercial data
Country of origin DE
GTIN 4055143712026
Customs Tariff No. 85369010000
Approvals / Certificates
Ex-Approvals
Logo Approval Additional Approval Text
Certificate
name
AEx
Underwriters Laboratories Inc.
UL 60079 4788362294
AEx
Underwriters Laboratories Inc.
UL 60079 4788362294
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1007
U
ATEX
Physikalisch Technische Bundesanstalt
IEC 60079-0 PTB 18
ATEX 1007
U
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0014U
(Ex eb IIC
Gb and Ex
eb I Mb)
IECEx
Physikalisch Technische Bundesanstalt
IEC 60079 IECEx PTB
18.0014U
(Ex eb IIC
Gb and Ex
eb I Mb)
Radio-Approvals
Logo Approval Additional Approval Text
Certificate
name
2206-1201
22.08.2019Page /3 11
Data sheet | Item number:2206-1201
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7667
CSA
DEKRA Certification B.V.
C22.2 70175034
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102879
Country specific Approvals
Logo Approval Additional Approval Text
Certificate
name
CCA
DEKRA Certification B.V.
EN 60947 NTR NL
7667
CSA
DEKRA Certification B.V.
C22.2 70175034
KEMA/KEUR
DEKRA Certification B.V.
EN 60947 71-
102879
Ship Approvals
Logo Approval Additional Approval Text
Certificate
name
ABS
American Bureau of Shipping
- 19HG1866350PDA
DNV GL
Det Norske Veritas, Germanischer Lloyd
- TAE00003JT
LR
Lloyds Register
- 19/20050
Other Approvals
Logo Approval Additional Approval Text
Certificate
name
2206-1201
22.08.2019Page /4 11
Data sheet | Item number:2206-1201
UL
Underwriters Laboratories Inc.
C22.2 No. 158 478863229
UL-Approvals
Logo Approval Additional Approval Text
Certificate
name
UL
Underwriters Laboratories Inc.
C22.2 No. 158 478863229
Compatible products
ferrule
Item no.: 216-208
Ferrule; Sleeve for 6 mm² / AWG 10; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; yellow
216-208
Item no.: 216-262
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-262
Item no.: 216-263
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; red
216-263
Item no.: 216-264
Ferrule; Sleeve for 1.5 mm² / AWG 16; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; black
216-264
Item no.: 216-266
Ferrule; Sleeve for 2.5 mm² / AWG 14; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; blue
216-266
Item no.: 216-267
Ferrule; Sleeve for 4 mm² / AWG 12; insulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 4/09.90; gray
216-267
General accessories
Item no.: 2006-191
Lockout cap; for wire insertion and actuating opening; gray
2006-191
Marking accessories
Item no.: 2009-110
Marking strips; on reel; not stretchable; plain; snap-on type; white
2009-110
Item no.: 2009-115
2206-1201
22.08.2019Page /5 11
Data sheet | Item number:2206-1201
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white 2009-115
Item no.: 2009-115/000-002
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-115
/000-002
Item no.: 2009-115/000-006
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-115
/000-006
Item no.: 2009-115/000-007
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-115
/000-007
Item no.: 2009-115/000-012
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-115
/000-012
Item no.: 2009-115/000-017
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; light green
2009-115
/000-017
Item no.: 2009-115/000-023
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-115
/000-023
Item no.: 2009-115/000-024
WMB-Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-115
/000-024
Item no.: 2009-145
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; white
2009-145
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; yellow
2009-145
/000-002
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; red
2009-145
/000-005
Item no.: 2009-145/000-006
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; blue
2009-145
/000-006
Item no.: 2009-145/000-007
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; gray
2009-145
/000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; orange
2009-145
/000-012
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; green
2009-145
/000-023
2206-1201
22.08.2019Page /6 11
Data sheet | Item number:2206-1201
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; on reel; stretchable 5 - 5.2 mm; plain; snap-on type; violet
2009-145
/000-024
Item no.: 2009-191
Group marker carrier
2009-191
Item no.: 2009-192
Group marker carrier
2009-192
Item no.: 2009-193
Group marker carrier
2009-193
Item no.: 2009-198
Adaptor
2009-198
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
248-501
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-005
Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; white
248-501
/000-024
Item no.: 793-501
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
Item no.: 793-501/000-002
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-002
2206-1201
22.08.2019Page /7 11
Data sheet | Item number:2206-1201
Item no.: 793-501/000-005
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-005
Item no.: 793-501/000-006
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-006
Item no.: 793-501/000-007
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-007
Item no.: 793-501/000-012
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-012
Item no.: 793-501/000-017
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-017
Item no.: 793-501/000-023
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-023
Item no.: 793-501/000-024
WMB marking card; as card; not stretchable; plain; snap-on type; white
793-501
/000-024
Item no.: 793-5501
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; white
793-5501
Item no.: 793-5501/000-002
WMB marking card; as card; for terminal block width 5 - 17.5 mm; stretchable 5 - 5.2 mm; plain; snapon type; yellow
793-5501
/000-002
Item no.: 793-5501/000-005
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; red
793-5501
/000-005
Item no.: 793-5501/000-006
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; blue
793-5501
/000-006
Item no.: 793-5501/000-007
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; gray
793-5501
/000-007
Item no.: 793-5501/000-012
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; orange
793-5501
/000-012
Item no.: 793-5501/000-017
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; light green
793-5501
/000-017
Item no.: 793-5501/000-023
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; green
793-5501
/000-023
2206-1201
22.08.2019Page /8 11
Data sheet | Item number:2206-1201
Item no.: 793-5501/000-024
WMB marking card; as card; stretchable 5 - 5.2 mm; plain; snap-on type; violet
793-5501
/000-024
tools
Item no.: 210-721
Operating tool; Blade: 5.5 x 0.8 mm; with a partially insulated shaft
210-721
Carrier rail
Item no.: 210-112
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 25
mm
210-112
Item no.: 210-113
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; unslotted; according to EN 60715
210-113
Item no.: 210-114
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; unslotted; similar to EN 60715
210-114
Item no.: 210-115
Steel carrier rail; 35 x 7.5 mm; 1 mm thick; 2 m long; slotted; according to EN 60715; "Hole width 18
mm
210-115
Item no.: 210-118
Steel carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715
210-118
Item no.: 210-196
Aluminum carrier rail; 35 x 8.2 mm; 1.6 mm thick; 2 m long; unslotted; similar to EN 60715; silvercolored
210-196
Item no.: 210-197
Steel carrier rail; 35 x 15 mm; 1.5 mm thick; 2 m long; slotted; similar to EN 60715
210-197
Item no.: 210-198
Copper carrier rail; 35 x 15 mm; 2.3 mm thick; 2 m long; unslotted; according to EN 60715; coppercolored
210-198
End plate
Item no.: 2006-1291
End and intermediate plate; 1 mm thick; gray
2006-1291
Item no.: 2006-1292
End and intermediate plate; 1 mm thick; orange
2006-1292
Item no.: 2006-1293
Separator plate; 2 mm thick; oversized; gray
2006-1293
Item no.: 2006-1294
Separator plate; 2 mm thick; oversized; orange
2006-1294
check
Item no.: 2006-511
Modular TOPJOB®S connector; modular; for jumper contact slot; 1-pole; 6,00 mm2; gray
2006-511
Item no.: 2006-549
Spacer module; modular; e.g., for bridging commoned terminal blocks; gray
2006-549
Item no.: 2009-174
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray
2009-174
2206-1201
22.08.2019Page /9 11
Data sheet | Item number:2206-1201
Item no.: 2009-182
Testing tap; for max. 2.5 mm²; tool-free connection for individual test wires 0.08 - 2.5 mm; gray
2009-182
Item no.: 210-136
Test plug; 2 mm Ø; with 500 mm cable; red
210-136
Jumper
Item no.: 2006-402
Push-in type jumper bar; insulated; 2-way; Nominal current 41 A; light gray
2006-402
Item no.: 2006-403
Push-in type jumper bar; insulated; 3-way; Nominal current 41 A; light gray
2006-403
Item no.: 2006-404
Push-in type jumper bar; insulated; 4-way; Nominal current 41 A; light gray
2006-404
Item no.: 2006-405
Push-in type jumper bar; insulated; 5-way; Nominal current 41 A; light gray
2006-405
Item no.: 2006-405/011-000
Star point jumper; insulated; 3-way (1-3-5); IN = IN terminal block; light gray
2006-405
/011-000
Item no.: 2006-433
Push-in type jumper bar; insulated; from 1 to 3; Nominal current 41 A; light gray
2006-433
Item no.: 2006-434
Push-in type jumper bar; insulated; from 1 to 4; Nominal current 41 A; light gray
2006-434
Item no.: 2006-435
Push-in type jumper bar; insulated; from 1 to 5; Nominal current 41 A; light gray
2006-435
Item no.: 2006-499
Step-down jumper; insulated; from 6/4 mm² to 4/2.5/1.5 mm²; Nominal current 32 A; light gray
2006-499
Item no.: 210-103
Wire commoning chain; insulated; 50 connections; black
210-103
Item no.: 210-123
Wire commoning chain; insulated; 50 connections
210-123
Downloads
Documentation
Bid Text
2206-1201 docx
15.2 kB
Download
Additional Information
Technical explanations Apr 3, 2019 pdf
2.1 MB
Download
2206-1201
22.08.2019Page /10 11
Data sheet | Item number:2206-1201
CAD/CAE - Smart Data
CAD data
3D Download 2206-1201 URL Download
EPLAN
EPLAN Data Portal Download
2206-1201
Subject to changes.
22.08.2019Page /11 11
Loading...
